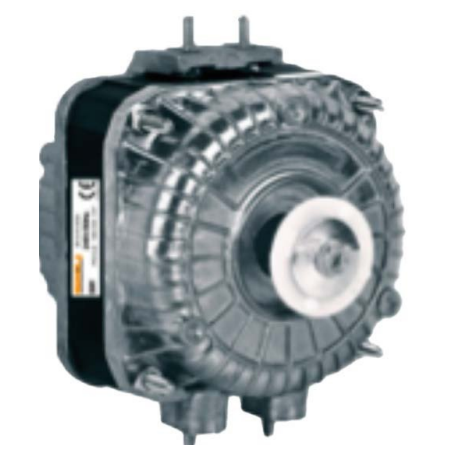

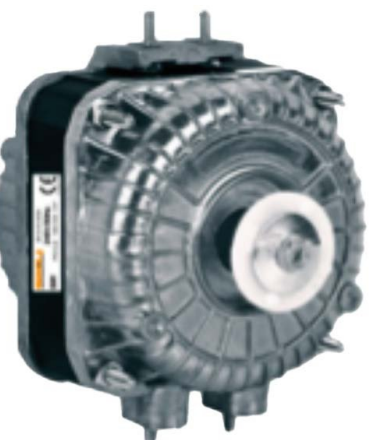

Fan Motor 34W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount | by Aspen Pumps
The Fan Motor 34W is designed for efficient air circulation in HVAC systems and commercial fans, featuring a robust 1300 RPM speed and IP42 rating for durability. With a versatile 14 point multi mount frame, it's perfect for various installations, ensuring optimal performance and energy efficiency in your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fan Motor 34W | 1300 RPM Speed | IP42 Rated | 14 Point Multi Mount | by Aspen Pumps
Brand: Aspen Pumps
SKU: 501-34-45-18/26
Alternatively Known As: 34W Shaded Pole Fan Motor, Single Phase Fan Motor 34W, 501-34-45-18/26 Fan Motor
Technical Specifications
- Power Output: 34W
- Voltage: 230V / 50Hz
- Speed: 1300 RPM
- Current: 0.85 Amps
- Input Power: 110W
- Supply Poles: 4 shaded poles
- IP Rating: IP42
- Insulation Class: B
- Thermal Protection: Yes (for 10W and over)
- Impedance Protection: Yes (for 5W)
- Mounting: 14 point multi mount frame
- Cord Length: 1 meter
- Dimensions (H x L x W): 45mm x 122mm x 62mm
- Weight: 1.2 kg
Key Features
- 34W power output with 1300 RPM speed
- Single phase with 4 shaded poles
- 14 point multi mount frame for versatile installation
- IP42 rated with insulation class B
- Thermally protected for 10W and over
- Impedance protected for 5W
- Supplied with mounting fasteners and 1m cord
- Complies with CE, VDE, UL, CCC approvals and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal motor performance.
Applications
- HVAC systems
- Air circulation in residential and commercial fans
- Cooling systems in appliances and machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor design reduces power consumption
- Complies with ErP performance standards for environmental sustainability
Warranty Information
Warranty coverage of 2 years against manufacturing defects.
Available Now
The Aspen Pumps Fan Motor 34W is available for immediate purchase, ideal for HVAC and fan assembly applications.
