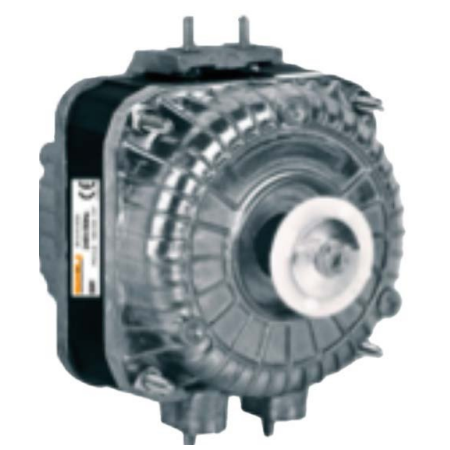

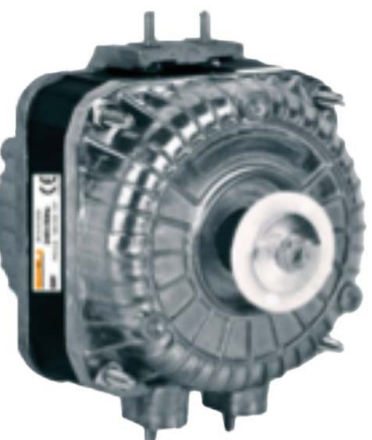

Fan Motor 5W | 1300 RPM Speed | IP42 Rated | Thermally Protected | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 501-5-13-18/26
$22.90 List price: $27.80
+ −
30 Days Return Delivery Options
The Fan Motor 5W is designed for HVAC and ventilation applications, featuring a robust 1300 RPM speed and IP42 rating for reliable performance. Ideal for small cooling fans and general-purpose use, this single-phase shaded pole motor is thermally protected and comes with a versatile 14-point multi-mount frame for easy installation.

Product Name/Title: Fan Motor 5W | 1300 RPM Speed | IP42 Rated | Thermally Protected | by Aspen Pumps

Brand: Aspen Pumps

SKU: 501-5-13-18/26

Alternatively Known As: 5W Shaded Pole Fan Motor, Small Fan Motor 5 Watt, 230V Fan Motor, Single Phase Fan Motor

Technical Specifications
  • Power Output: 5W
  • Voltage: 230V / 50Hz
  • Speed: 1300 RPM
  • Current: 0.20 Amps
  • Input Power: 29W
  • Supply Poles: 5
  • IP Rating: IP42
  • Insulation Class: B
  • Thermal Protection: Yes (for 10W and over)
  • Impedance Protection: Yes (5W model)
  • Mounting: 14 point multi mount frame
  • Approvals: CE, VDE, UL, CCC
  • Compliance: RoHS
  • Dimensions (H x L x W): 30mm x 82mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 5W power output with 1300 RPM speed
  • Single phase shaded pole motor with 5 supply poles
  • IP42 rated with insulation class B
  • Thermally protected for 10W and over models, impedance protected for 5W
  • 14 point multi mount frame for versatile installation
  • Supplied with mounting fasteners and 1m power cord
  • Complies with CE, VDE, UL, CCC approvals and RoHS compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor operation.
Applications
  • HVAC systems
  • Ventilation fans
  • Small cooling fans
  • General purpose fan motor applications
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy efficient 5W motor reduces power consumption
  • RoHS compliant, ensuring reduced hazardous substances
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Aspen Pumps Fan Motor 5W is available for immediate purchase, ideal for HVAC and ventilation fan applications.
