Fascia Bracket 350mm Single Arm | Hot Dip Galvanised Steel | Designed for Aerial Service Lines | by Supplico
The Fascia Bracket 350mm Single Arm is engineered from hot dip galvanised steel, ensuring corrosion resistance and durability. Ideal for fixing to rafters behind fascia boards, this bracket supports single phase aluminium aerial service lines, making it perfect for both residential and commercial roofing applications. Compliant with NSW service and installation rules, it guarantees secure and reliable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fascia Bracket 350mm Single Arm | Hot Dip Galvanised Steel | Designed for Aerial Service Lines | by Supplico
Brand: Supplico
SKU: FB2-1
Alternatively Known As: Single Arm Fascia Bracket, 350mm Fascia Bracket, POA Rafter Bracket, Electrical Service Bracket
Technical Specifications
- Material: Hot dip galvanised steel
- Length: 350 mm
- Weight: 5 kg
- Suitable for single phase aluminium aerial service lines
- B rated POA bracket suitable for approx. 30m of aerial
- Designed for fixing to rafters behind fascia boards
- Must be bolted through hardwood of adequate strength

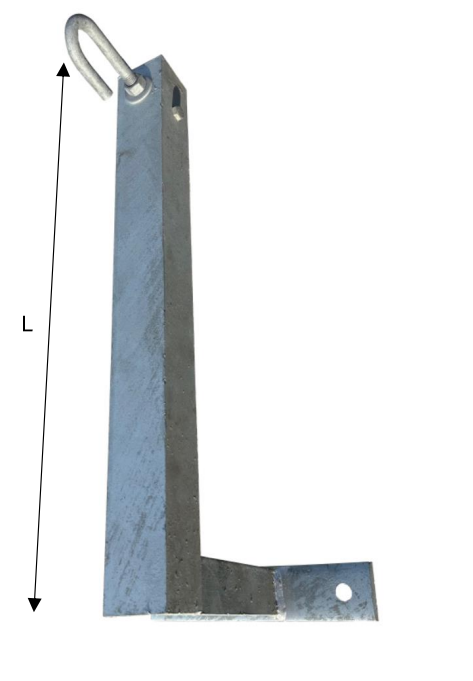

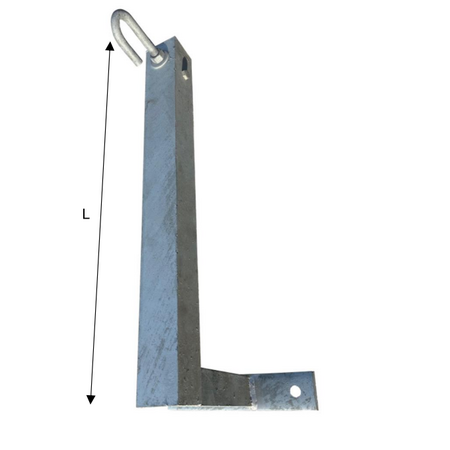

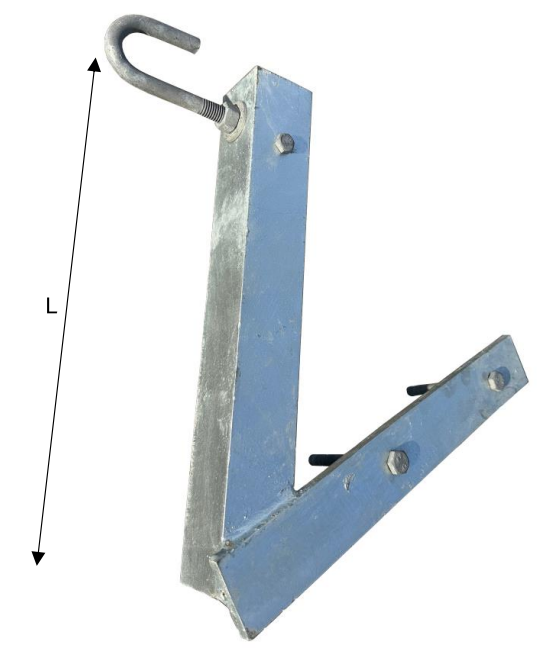

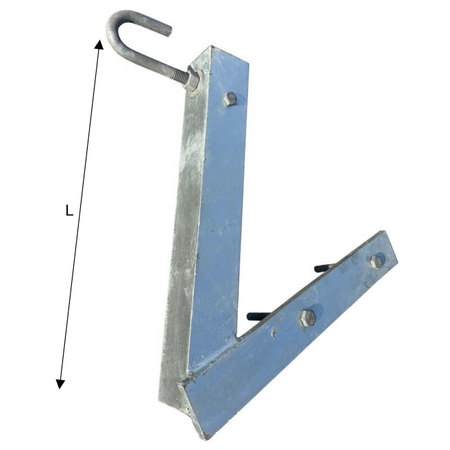

- Dimensions (H x L x W): 350mm x 350mm x 50mm
- Weight: 5 kg
Key Features
- Hot dip galvanised for corrosion resistance.
- Engineered to meet NSW service and installation rules.
- Suitable for approximately 30m of aerial for single phase aluminium service lines.
- Designed to be fixed to rafters behind fascia boards and flashed around roofing penetrations.
- Must be bolted through hardwood of adequate strength behind the fascia board.
Professional Installation Requirements
- Installation must be performed by a qualified professional to ensure compliance with NSW service and installation rules and secure fixing to hardwood behind fascia boards.
Applications
- Designed for fixing to rafters behind fascia boards in residential and commercial roofing.
- Suitable for single phase aluminium aerial service lines installation.
- Used in electrical service installations compliant with NSW service and installation rules.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot dip galvanised coating extends product life, reducing the need for replacements and waste.
Warranty Information
Standard manufacturer warranty applies; please contact Supplico for specific warranty details.
Available Now
The Supplico Fascia Bracket 350mm Single Arm is available for immediate purchase, ideal for electrical service line installations in residential and commercial buildings.
