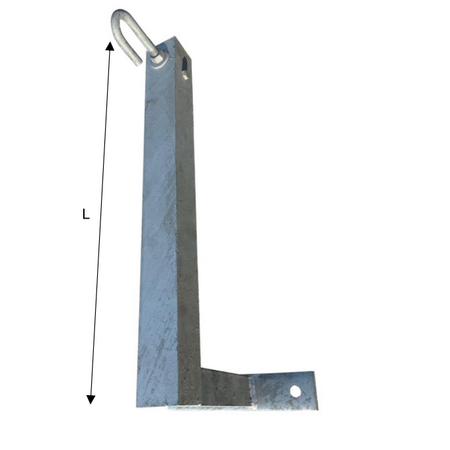

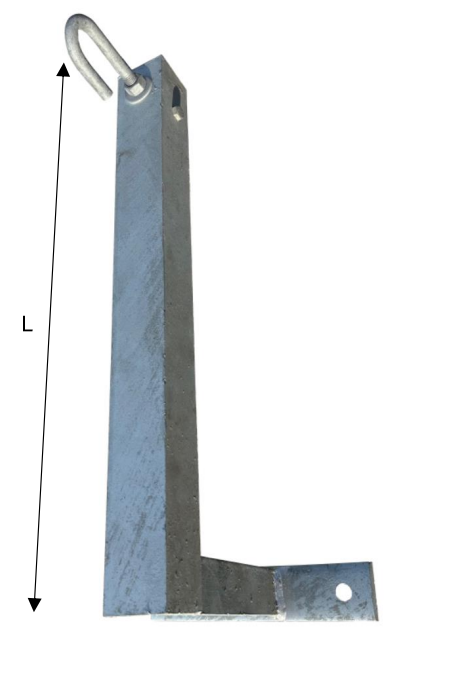

Fascia Bracket 650mm Single Arm | Hot Dip Galvanised Steel | Corrosion Resistant | Engineered for NSW Compliance | by Supplico
The Fascia Bracket 650mm Single Arm is crafted from hot dip galvanised steel, ensuring exceptional durability and corrosion resistance. Perfect for securing single phase aluminium aerial service lines, this bracket complies with NSW service and installation rules, making it ideal for both residential and commercial roofing applications. Designed for professional installation, it guarantees a secure fit behind fascia boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fascia Bracket 650mm Single Arm | Hot Dip Galvanised Steel | Corrosion Resistant | Engineered for NSW Compliance | by Supplico
Brand: Supplico
SKU: FB4-1
Alternatively Known As: Single Arm Fascia Bracket, POA Rafter Bracket, Galvanised Fascia Bracket 650mm
Technical Specifications
- Material: Hot dip galvanised steel
- Length: 650 mm
- Weight: 7 kg
- Suitable for single phase aluminium aerial service lines
- Complies with NSW service and installation rules
- Dimensions (H x L x W): 150mm x 650mm x 80mm
- Weight: 7 kg
Key Features
- Hot dip galvanised for corrosion resistance and durability.
- Engineered to meet NSW service and installation rules.
- Suitable for approximately 30m of aerial for single phase aluminium service lines.
- Designed to be bolted through hardwood of adequate strength behind fascia boards.
Professional Installation Requirements
- Must be installed by a qualified professional ensuring bolting through hardwood of adequate strength behind the fascia board for secure fixing.
Applications
- Designed for fixing to rafters behind fascia boards in residential and commercial roofing.
- Suitable for single phase aluminium aerial service lines installation.
- Used for securing aerial service lines under gutters on fascia boards.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot dip galvanisation extends product life, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty applies; please refer to Supplico for specific terms.
Available Now
The Supplico Fascia Bracket 650mm Single Arm is available for immediate purchase, ideal for roofing and aerial service line installations.
