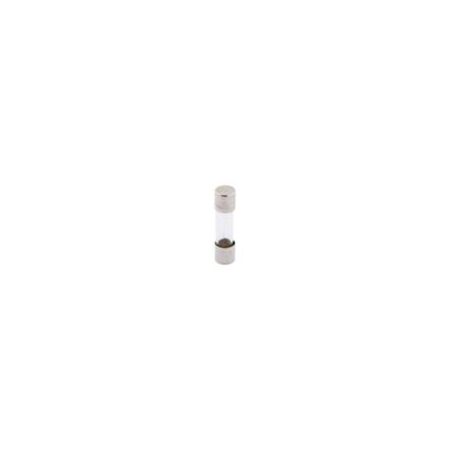

Fast-Acting 2A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton
Fast-acting 2A Buss fuse designed for electronic circuits, offering a voltage rating of 250 Vac and a quick response to overcurrent. Built for safety compliance, with a durable glass tube construction and nickel-plated end caps, it's ideal for reliable circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fast-Acting 2A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton
Brand: Eaton
SKU: S500-2-R
Alternatively Known As: Bussmann S500 2 Amp Fuse, Eaton Fast-Acting Fuse 2A, S500-2-R Fuse
Technical Specifications
- Amperage Rating: 2 A
- Voltage Rating: 250 Vac or less, 32 Vdc (self certified)
- Interrupt Rating: 35 AIC at 250 Vac
- Frequency Rating: 50 Hz
- Voltage Drop: 150 mV maximum
- Fuse Indicator: Non-indicating
- Connection: Ferrule end x ferrule end
- Material: Glass tube with nickel-plated end caps
- Type: Electronic
- Dimensions (H x L x W): 5.2mm x 20.5mm x 5.2mm
- Weight: 0.00067 kg
Key Features
- Fast-acting fuse for quick response to overcurrent
- Glass tube construction with nickel-plated end caps
- Non-indicating fuse type
- Interrupt rating of 35 AIC at 250 Vac
- Voltage drop maximum 150 mV
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fuse selection and safety compliance.
Applications
- Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long-lasting fuse reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton S500 2A Bussmann Fast-Acting Fuse is available now for immediate purchase. Ideal for electronic circuit protection applications.
