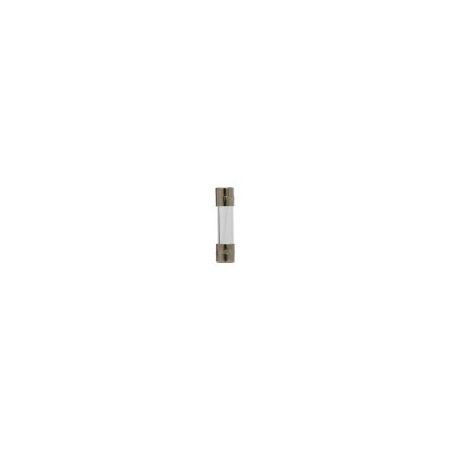

Fast-Acting Buss Fuse 100mA | 250 Vac Voltage Rating | Nickel-Plated End-Cap | Non-Indicating by Eaton

BRAND: Eaton
SKU: S500-100-R
$5.50 List price: $6.80
+ −
30 Days Return Delivery Options
Fast-acting buss fuse with a 100mA amperage rating and a voltage rating of 250 Vac or less—ideal for electronic circuits requiring reliable protection. Built for safety compliance, featuring a nickel-plated end-cap construction and non-indicating design.

Product Name/Title: Fast-Acting Buss Fuse 100mA | 250 Vac Voltage Rating | Nickel-Plated End-Cap | Non-Indicating by Eaton

Brand: Eaton

SKU: S500-100-R

Alternatively Known As: Fast-acting fuse 0.1A, S500 fuse, Eaton Bussmann S500 fuse

Technical Specifications
  • Amperage Rating: 0.1A
  • Voltage Rating: 250 Vac or less, 32 Vdc
  • Interrupt Rating: 35 AIC at 250 Vac
  • Frequency Rating: 50 Hz
  • Voltage Drop: 1100 mV maximum
  • Fuse Indicator: Non-indicating
  • Connection: Ferrule end x ferrule end
  • Material: Nickel-plated end-cap construction, Glass tube
  • Type: Electronic
  • Dimensions (H x L x W): 5.2mm x 20.5mm x 5.2mm
  • Weight: 0.00067 kg
Key Features
  • Fast-acting fuse with 0.1A amperage rating
  • Voltage rating of 250 Vac or less, 32 Vdc
  • Interrupt rating of 35 AIC at 250 Vac
  • Non-indicating fuse type
  • Nickel-plated end-cap construction with glass tube
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
  • Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • RoHS compliant ensuring reduced hazardous substances
  • CE marked for safety and environmental standards
Warranty Information

Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.

Available Now

The Eaton S500 100mA Fast-Acting Buss Fuse is available now for immediate purchase. Ideal for electronic circuit protection applications.
