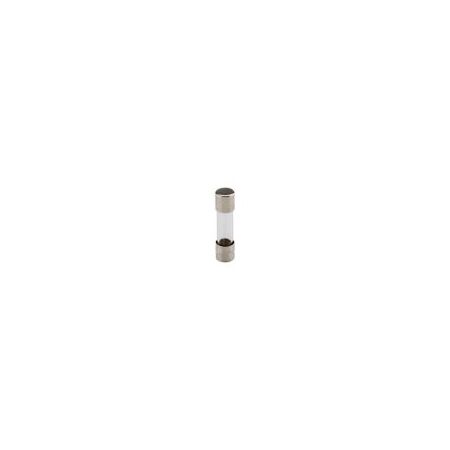

Fast-Acting Fuse 0.25A | Glass Tube Construction | 35 AIC Interrupt Rating | Non-Indicating by Eaton

BRAND: Eaton
SKU: BK-S500-250-R
$0.50 List price: $0.60
+ −
30 Days Return Delivery Options
Fast-acting fuse rated at 0.25A, designed for quick response to overcurrent in electronic circuits. With a robust glass tube construction and a 35 AIC interrupt rating, it's ideal for ensuring reliable protection in various applications.

Product Name/Title: Fast-Acting Fuse 0.25A | Glass Tube Construction | 35 AIC Interrupt Rating | Non-Indicating by Eaton

Brand: Eaton

SKU: BK-S500-250-R

Alternatively Known As: Fast-acting fuse 0.25A, S500 fuse, Electronic fuse 0.25 amp

Technical Specifications
  • Amperage Rating: 0.250A
  • Voltage Rating: 250 Vac or less, 32 Vdc (self certified)
  • Interrupt Rating: 35 AIC at 250 Vac
  • Frequency Rating: 50 Hz
  • Voltage Drop: 1400 mV maximum
  • Fuse Indicator: Non-indicating
  • Connection: Ferrule end x ferrule end
  • Material: Glass tube with nickel-plated end caps
  • Type: Electronic
  • Dimensions (H x L x W): 5.2mm x 20.5mm x 5.2mm
  • Weight: 0.00067 kg
Key Features
  • Fast-acting fuse for quick response to overcurrent
  • Glass tube construction with nickel-plated end caps
  • Non-indicating fuse type
  • Interrupt rating of 35 AIC at 250 Vac
  • Voltage drop maximum 1400 mV
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant ensuring reduced hazardous substances
  • Long-lasting fuse reduces waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to Eaton for specific warranty details.

Available Now

The Eaton Bussmann S500 Series Fast-Acting Fuse 0.250A is available now for immediate purchase. Ideal for electronic circuit protection applications.
