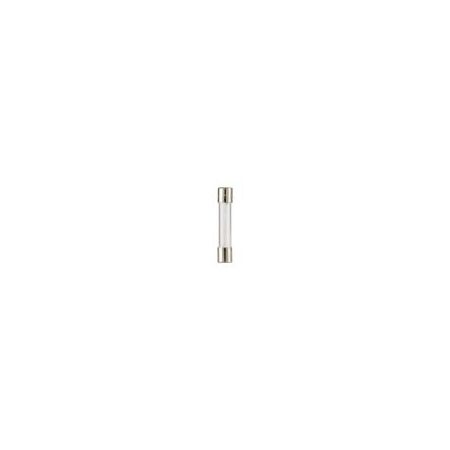

Fast-Acting Glass Tube Fuse | 10A Amperage | 250 Vac Voltage | Non-Indicating by Eaton

BRAND: Eaton
SKU: AGC-10-R
$1.90 List price: $2.30
+ −
30 Days Return Delivery Options
Fast-acting glass tube fuse with a 10A amperage rating and 250 Vac voltage—ideal for electronic circuits requiring reliable protection. Built for safety and compliance, this non-indicating fuse ensures optimal performance in critical applications.

Product Name/Title: Fast-Acting Glass Tube Fuse | 10A Amperage | 250 Vac Voltage | Non-Indicating by Eaton

Brand: Eaton

SKU: AGC-10-R

Alternatively Known As: Fast-acting glass fuse, AGC fuse, Bussmann AGC fuse, 10A glass tube fuse

Technical Specifications
  • Amperage Rating: 10 A
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Interrupt Rating: 10 kAIC at 125 Vac, 200 AIC at 250 Vac
  • Fuse Indicator: Non-indicating
  • Connection Type: Ferrule end x ferrule end
  • Response Time: 60 min at 135%, 120 sec at 200%
  • Type: Electronic
  • Product Weight: 0.005 lb (approx. 2.3 g)
  • Dimensions (H x L x W): 6.35mm x 31.75mm x 6.35mm
  • Weight: 0.0023 kg
Key Features
  • Fast-acting glass tube fuse
  • 10A amperage rating
  • Non-indicating fuse
  • Ferrule end x ferrule end connection
  • Interrupt rating: 10 kAIC at 125 Vac, 200 AIC at 250 Vac
  • Response time: 60 min at 135%, 120 sec at 200%
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper fuse selection and safe electrical circuit protection.
Applications
  • Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances
  • CE marked for safety and environmental standards
Warranty Information

Standard Eaton warranty applies; typically covers manufacturing defects for 1 year.

Available Now

The Eaton Bussmann AGC Series Fast-Acting Glass Tube Fuse 10A 250Vac is available for immediate purchase, ideal for electronic circuit protection applications.
