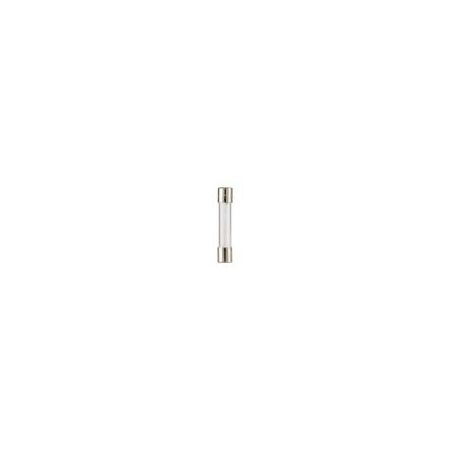

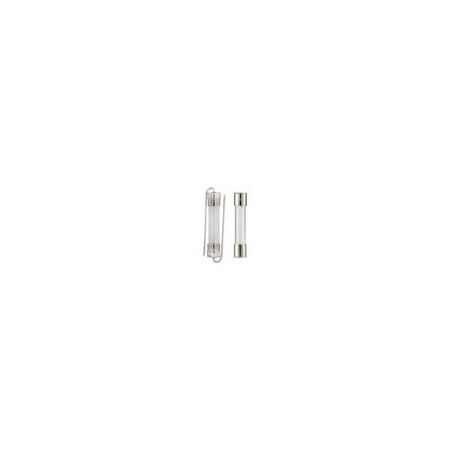

Fast-Acting Glass Tube Fuse | 3A Rating | 250 Vac Voltage | Ferrule Connection by Eaton
Fast-acting glass tube fuse with a 3A rating and 250 Vac voltage—ideal for electronic circuits requiring reliable protection. Built for safety compliance, with a ferrule end connection for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fast-Acting Glass Tube Fuse | 3A Rating | 250 Vac Voltage | Ferrule Connection by Eaton
Brand: Eaton
SKU: BK-AGC-3-R
Alternatively Known As: AGC Fuse, Fast-Acting Glass Tube Fuse, 3A Fuse, Electronic Fuse
Technical Specifications
- Amperage Rating: 3 A
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Response Time: 60 min at 135%, 120 sec at 200%
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Type: Electronic
- Product Weight: 0.004 lb (approx. 0.002 kg)
- Dimensions (H x L x W): 6mm x 32mm x 6mm
- Weight: 0.002 kg
Key Features
- Fast-acting glass tube fuse
- 3 Ampere rating
- Non-indicating fuse
- Ferrule end x ferrule end connection
- Response time: 60 min at 135%, 120 sec at 200%
- Voltage rating: 250 Vac, 32 Vdc (self certified)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper fuse selection and safety compliance.
Applications
- Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty terms.
Available Now
The Eaton Buss Small Dimension Fast-Acting Fuse 3A 250Vac is available now for immediate purchase. Ideal for electronic circuit protection applications.
