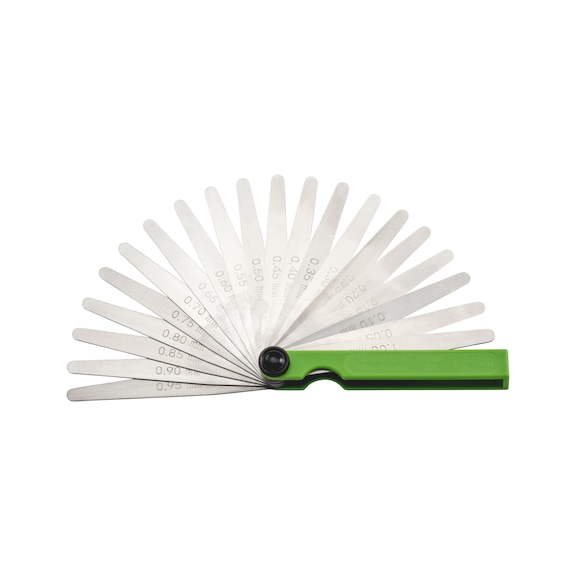

Feeler Gauge Set | 20 Spring Steel Blades | 0.05 mm to 1 mm Thickness | 12.7 mm Width | by Wurth

BRAND: Wurth
SKU: 7135142
$44.30 List price: $55.60
+ −
30 Days Return Delivery Options
The Feeler Gauge Set is designed for precision measurement tasks, featuring 20 durable spring steel blades with thicknesses ranging from 0.05 mm to 1 mm. Ideal for technicians and engineers, this set is perfect for measuring slots, gaps, and checking play on slide guides, ensuring accurate inspections of bearings and pistons.

Product Name/Title: Feeler Gauge Set | 20 Spring Steel Blades | 0.05 mm to 1 mm Thickness | 12.7 mm Width | by Wurth

Brand: Wurth

SKU: 7135142

Alternatively Known As: Feeler Gauge Set, Gap Gauge, Thickness Gauge, Precision Feeler Blades

Technical Specifications
  • Sheet width: 12.7 mm
  • Sheet length: 100 mm
  • Overall length: 105 mm
  • Material of blade: Spring steel
  • Number of sheets: 20 PCS
  • Blade thickness range: 0.05 mm to 1 mm
  • Blade thicknesses included: 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9, 0.95, 1 mm
  • Dimensions (H x L x W): 5mm x 105mm x 13mm
  • Weight: 0.1 kg
Key Features
  • Includes 20 spring steel blades with thicknesses ranging from 0.05 mm to 1 mm
  • Blade sheet width of 12.7 mm and length of 100 mm
  • Durable green spring steel blades for precise measurement
Professional Installation Requirements
  • No professional installation required; suitable for use by technicians and engineers.
Applications
  • Measuring slots and gaps
  • Checking play on slide guides
  • Inspecting bearings and pistons
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Wurth Feeler Gauge Set is available now for immediate purchase. Ideal for precision measurement tasks in mechanical and engineering applications.
