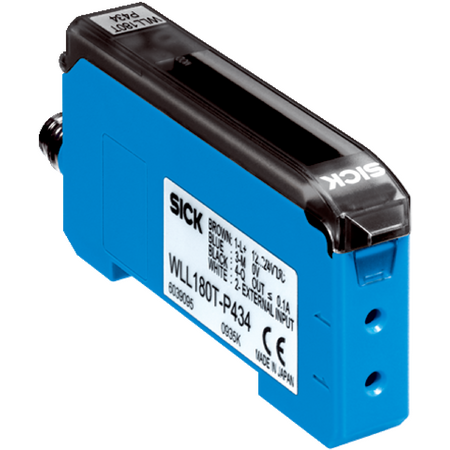

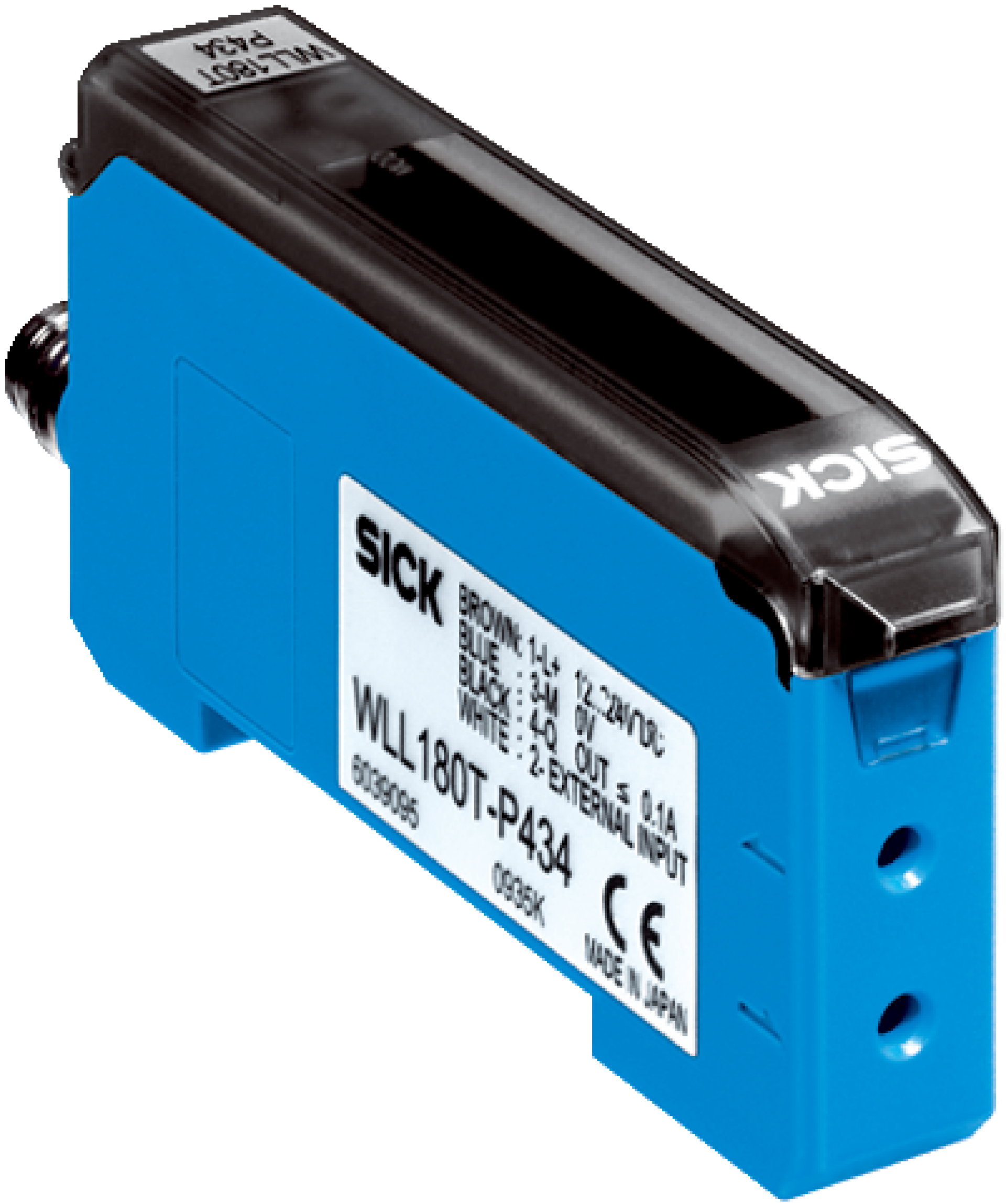

Fiber Amplifier WLL180T-P434 | Stand-Alone Design | 650 nm Red LED | IP50 Rated | by SICK
The Fiber Amplifier WLL180T-P434 is a stand-alone fiber-optic amplifier featuring a visible red LED light source with a 650 nm wavelength. Ideal for industrial automation and object detection, it offers programmable delay times and a compact design with high shock resistance. Perfect for quality control and monitoring systems, this amplifier ensures reliable performance in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber Optic Amplifier, Fiber Amplifier Sensor, Optical Fiber Amplifier, SICK Fiber Sensor
Technical Specifications
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 650 nm wavelength
- LED risk group: Free group according to EN 62471
- Programmable delay time from 0 ms to 9,999 ms
- Light/dark switching with manually selectable mode
- Digital PNP output with reverse polarity, overcurrent, and short-circuit protection
- Compact plastic ABS/PC housing with M8 4-pin male connector
- High shock and vibration resistance
- Operating temperature range from -25 °C to +55 °C
- IP50 enclosure rating
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for fiber-optic sensing
- Object detection in manufacturing processes
- Quality control and monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLL180T-P434 Fiber Amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
