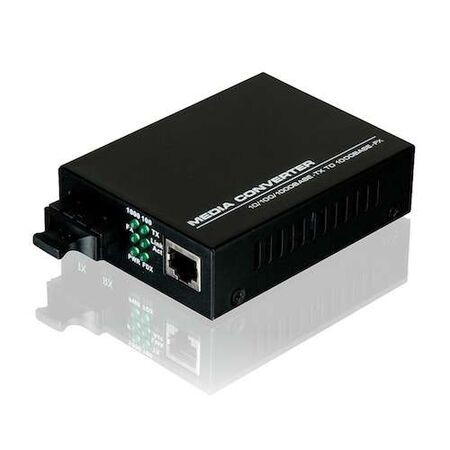

10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | Up to 120 km Distance | Auto-negotiation RJ45 | by SERVEREDGE
The 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is designed for extending Ethernet connections over long distances, supporting up to 120 km with singlemode fiber. Ideal for data centers and enterprise networks, it features an auto-negotiation RJ45 port for easy setup and a robust MAC address table for efficient network management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | Up to 120 km Distance | Auto-negotiation RJ45 | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-1000SSC-120
Alternatively Known As: Fiber Media Converter, Ethernet to Fiber Converter, 10/100/1000Base-TX to 1000Base-FX Converter, Singlemode Fiber Converter
Technical Specifications
- Port: 10/100/1000Base-TX RJ45 with Auto-MDIX
- Fiber Connector: SC singlemode
- Distance: Up to 120 km over singlemode fiber
- MAC Address Table: 1024 entries
- Architecture: Store and forward
- Standards Compliance: IEEE 802.3i, 802.3u, 802.3ab
- Certifications: FCC Part 15 Class A, CE Mark, CTick
- LED Indicators: Function, Link, Activity
- Mounting: Wall or chassis mountable
- Dimensions (H x L x W): 25mm x 90mm x 120mm
- Weight: 0.3 kg
Key Features
- Built-in twisted-pair port supporting 10/100/1000 Mbps speeds
- Auto-negotiation RJ45 connector with Auto-MDIX for easy setup
- SC fiber connector for singlemode fiber optic cable
- LED indicators for function, link, and activity status
- Link fault signaling compatible with managed switches
- 1024 MAC address capacity for efficient network management
- Store and forward architecture for reliable data transmission
- Supports singlemode fiber spans up to 120 km
- Wall or chassis mountable for flexible installation
- Compliant with IEEE 802.3i, 802.3u, and 802.3ab standards
- Meets FCC Part 15 Class A, CE Mark, and CTick certifications
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic handling and network configuration.
Applications
- Network infrastructure for extending Ethernet connections over long distances
- Data centers and server rooms requiring fiber optic connectivity
- Telecommunications and ISP networks
- Enterprise and industrial network environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables use of energy-efficient fiber optic networks reducing power loss over long distances
- Supports network infrastructure upgrades that improve overall energy efficiency
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Serveredge 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is available for immediate purchase, ideal for network infrastructure upgrades requiring reliable fiber optic connectivity.
