Trade Discount 17%

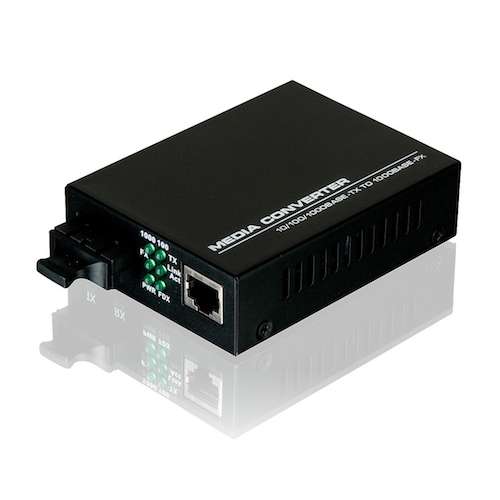

10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | Up to 20 km Distance | Auto-MDIX RJ45 Port | by SERVEREDGE
The 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is designed for seamless fiber to copper conversion, supporting distances up to 20 km. Ideal for enterprise networks and data centers, it features an auto-negotiation RJ45 port with Auto-MDIX for easy setup and a robust MAC address table of 1024 entries, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | Up to 20 km Distance | Auto-MDIX RJ45 Port | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-1000SSC-20
Alternatively Known As: Fiber Media Converter, Gigabit Ethernet Media Converter, Singlemode Fiber Converter, SC Fiber Media Converter
Technical Specifications
- Port: 10/100/1000Base-TX RJ45 with Auto-MDIX
- Fiber Connector: SC singlemode
- Distance: Up to 20 km on singlemode fiber
- MAC Address Table: 1024 entries
- Architecture: Store and forward
- Standards: IEEE 802.3i, 802.3u, 802.3ab compliant
- Certifications: FCC Part 15 Class A, CE Mark, CTick
- Dimensions (H x L x W): 25mm x 90mm x 120mm
- Weight: 0.3 kg
Key Features
- Built-in twisted-pair port supporting 10/100/1000 Mbps speeds
- Auto-negotiation RJ45 connector with Auto-MDIX for easy setup
- SC connector for singlemode fiber with up to 20 km span
- LED indicators for function, link, and activity status
- Link fault signaling compatible with managed switches
- 1024 MAC address capacity with store and forward architecture
- Wall or chassis mountable for flexible installation
- Compliant with IEEE 802.3i, 802.3u, and 802.3ab standards
- FCC Part 15 Class A, CE Mark, and CTick certified
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic handling and network integration.
Applications
- Data centers for fiber to copper conversion
- Enterprise network infrastructure
- Telecommunications for long-distance fiber connections
- Industrial network environments requiring reliable media conversion
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient network infrastructure by enabling fiber optic use
- Reduces electromagnetic interference with fiber optic transmission
- Enables long-distance data transmission reducing need for additional network hardware
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Serveredge 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is available for immediate purchase, ideal for enterprise and telecommunications network applications.
