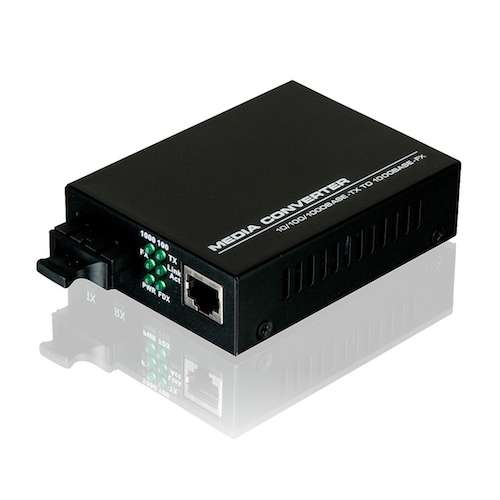

10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | 40 km Range | Auto-Negotiation & Link Fault Signaling | by SERVEREDGE
The 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is designed for extending Ethernet connections over long distances, supporting up to 40 km. Ideal for data centers and telecommunications, it features auto-negotiation, LED indicators, and link fault signaling for seamless integration into managed networks. Perfect for industrial and commercial applications, this converter ensures reliable data transmission and efficient network management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter | 40 km Range | Auto-Negotiation & Link Fault Signaling | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-1000SSC-40
Alternatively Known As: Fiber Media Converter, Ethernet to Fiber Converter, 1000Base-TX to 1000Base-FX Converter, Singlemode Fiber Converter
Technical Specifications
- Port: 10/100/1000Base-TX twisted-pair port
- Fiber Connector: SC singlemode
- Auto-negotiation and Auto-MDIX support
- LED indicators for function, link, and activity
- Link fault signaling for managed switch compatibility
- MAC Address Table: 1024 entries
- Architecture: Store and forward
- Maximum Fiber Distance: 40 km
- Standards Compliance: IEEE 802.3i, 802.3u, 802.3ab
- Certifications: FCC Part 15 Class A, CE Mark, CTick
- Dimensions (H x L x W): 25mm x 90mm x 120mm
- Weight: 0.5 kg
Key Features
- Built-in twisted-pair port supporting 10/100/1000 Mbps speeds
- Auto-negotiation RJ45 connector with Auto-MDIX for easy setup
- SC connector for singlemode fiber
- LED indicators for function, link, and activity status
- Link fault signaling compatible with managed switches
- 1024 MAC address capacity for efficient network management
- Store and forward architecture for reliable data transmission
- Singlemode fiber span up to 40 km
- Wall or chassis mountable for flexible installation
- Compliant with IEEE 802.3i, 802.3u, and 802.3ab standards
- FCC Part 15 Class A, CE Mark, and CTick compliant
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic handling and network configuration.
Applications
- Network infrastructure for extending Ethernet connections over fiber
- Data centers and server rooms
- Telecommunications and ISP networks
- Industrial and commercial networking environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables use of energy-efficient fiber optic cabling reducing power loss over long distances
- Supports network infrastructure upgrades that improve overall energy efficiency
Warranty Information
1 year limited warranty against manufacturing defects.
Available Now
The Serveredge 10/100/1000Base-TX to 1000Base-FX Singlemode SC Fiber Media Converter is available for immediate purchase, ideal for extending Ethernet networks over long distances with reliable fiber connectivity.
