Fiber Optic Amplifier | 660 nm LED Light Source | IP54 Rated | High Switching Frequency | by SICK
The Fiber Optic Amplifier features a visible red LED light source at 660 nm, making it ideal for industrial automation and safety monitoring applications. With a robust IP54 rating and high switching frequency of up to 31.2 kHz, this amplifier ensures reliable performance in demanding environments. Designed for easy installation and long-lasting use, it’s perfect for object detection and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 52 mA
- Light source: LED, visible red light, 660 nm wavelength
- LED service life: 100,000 hours at 25°C
- Switching output: 1 push-pull (PNP/NPN), max 50 mA
- Analog output: 4 mA to 20 mA / 0 V to 10 V / 1 V to 5 V switchable, 12 bit resolution
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Enclosure rating: IP54
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Housing material: Plastic (PC)
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 33mm x 80mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- Free LED risk group according to EN 62471
- Adjustable sensing range and test logic via wire/pin
- Display with multi-language menu and operating buttons
- LED indicators for power, switching output, and analog output status
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- High switching frequency up to 31.2 kHz
- Robust plastic housing with IP54 rating
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring fiber-optic sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste
- Robust design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

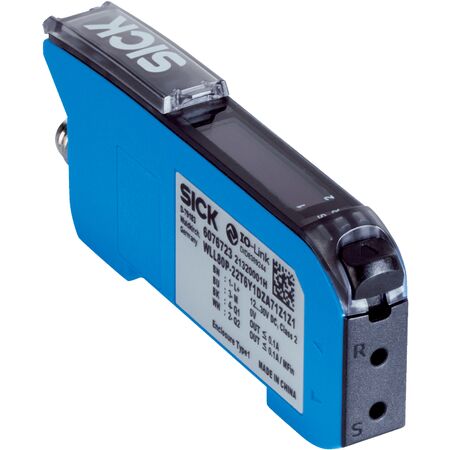

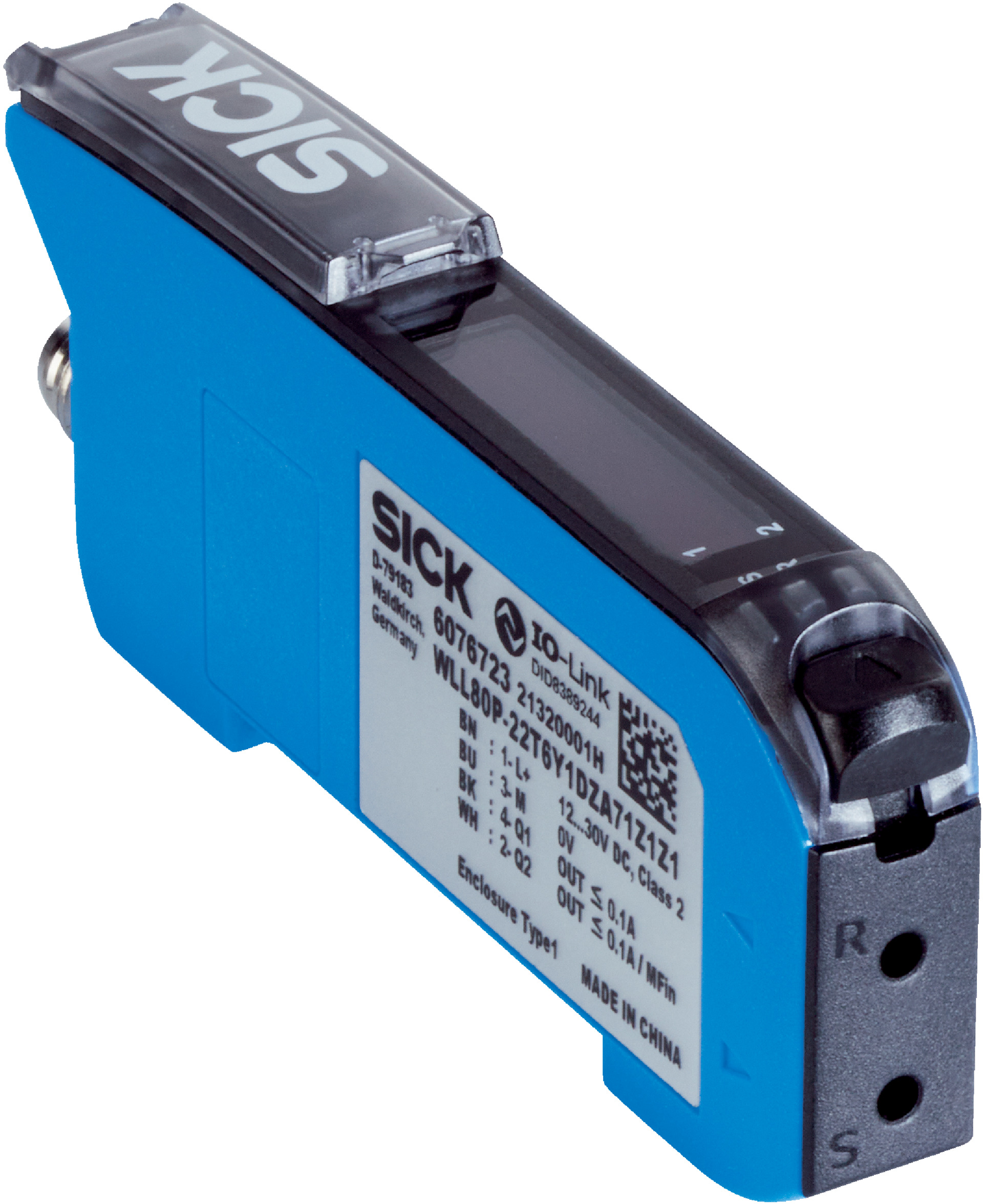

The SICK WLL80P-22THY1DZZZZZ1Z1 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
