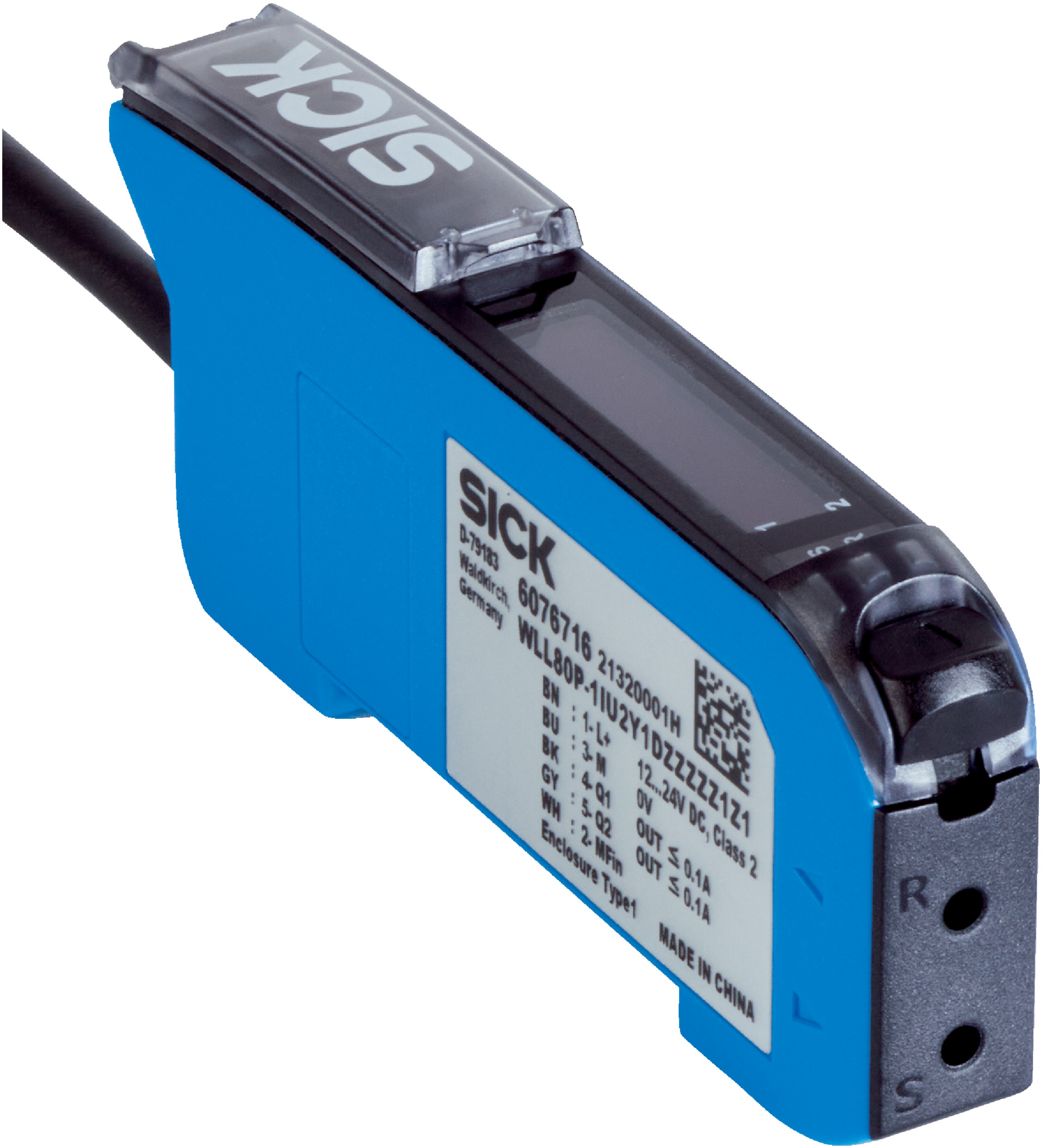

Fiber Optic Amplifier | Adjustable Sensing Range | Infrared LED | IP54 Rated | by SICK
The Fiber Optic Amplifier is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber used. With an infrared LED light source at 880 nm and a robust IP54-rated housing, it ensures reliable performance in various applications, including machine safety and process control. Ideal for factory automation, this amplifier supports IO-Link V1.1 communication for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with 880 nm wavelength and 100,000 hours average service life
- IO-Link V1.1 communication interface with 0.5 ms cycle time and 32 Bit process data length
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching
- Robust plastic housing with IP54 protection rating
- Operating temperature range from -25 °C to +55 °C
- Multiple LED indicators for operating status and received light beam
- Mounting bracket included (BEF-WLL180)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Factory automation requiring precise sensing
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

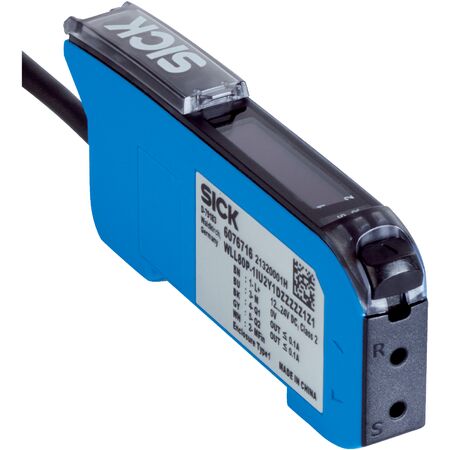

The SICK WLL80I-1HT6Y3DZA71Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
