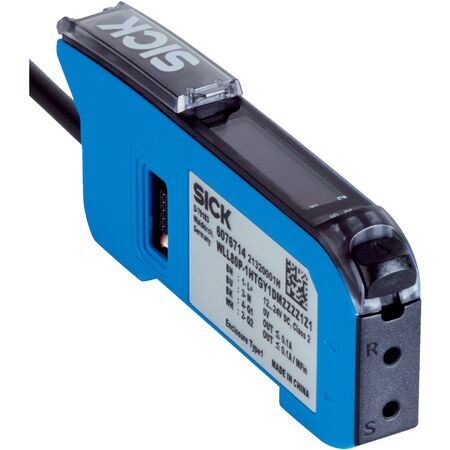

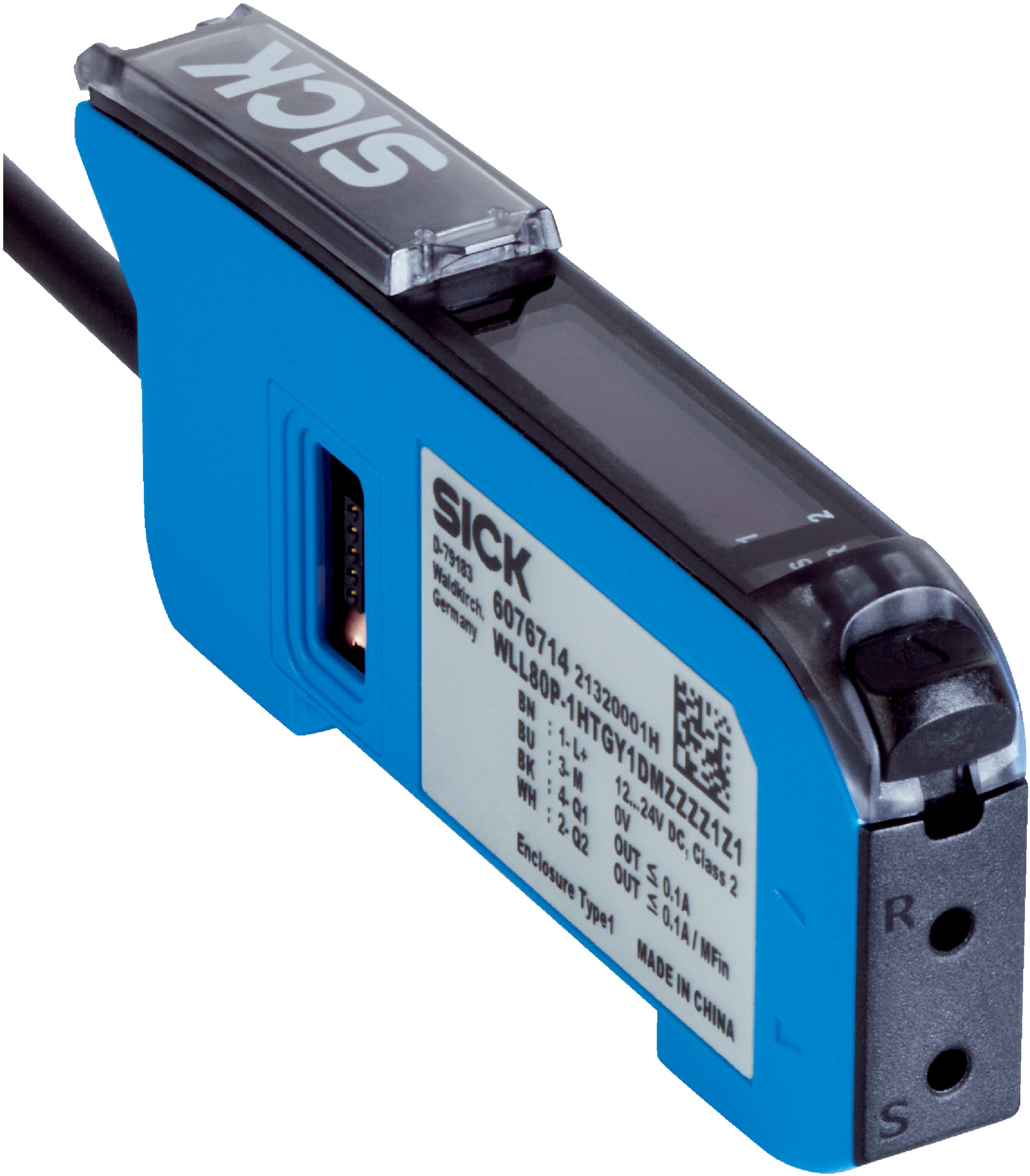

Fiber Optic Amplifier | Adjustable Sensing Range | IP54 Rated | Fast Response Time | by SICK
The Fiber Optic Amplifier is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber cable used. With a fast response time of ≤ 16 µs and an IP54 rated housing, it’s perfect for machine safety and monitoring applications. The visible red LED light source ensures reliable performance, making it an ideal choice for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN), individually adjustable
- Output current max: ≤ 100 mA
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP54 (EN 60529)
- LED wavelength: 660 nm
- Average LED service life: 100,000 hours at 25 °C
- Housing material: Plastic (PC)
- Cable: 4-wire, 2 m, PVC, diameter 4 mm
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Visible red LED light source with 660 nm wavelength and 100,000 hours average service life
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching
- Fast response time ≤ 16 µs and switching frequency up to 31.2 kHz
- IP54 rated housing suitable for industrial environments
- Display with multilingual menu (German, English, Chinese, Korean, Japanese) for sensor configuration
- Robust plastic housing with protective hood and elastomer operating buttons
- Cable connection: 4-wire, 2 m length with deep-freeze property (do not bend below 0 °C)
- Comprehensive circuit protection including reverse polarity, overcurrent, and short-circuit protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable design reduces environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLL80P-1HTGY1DMZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
