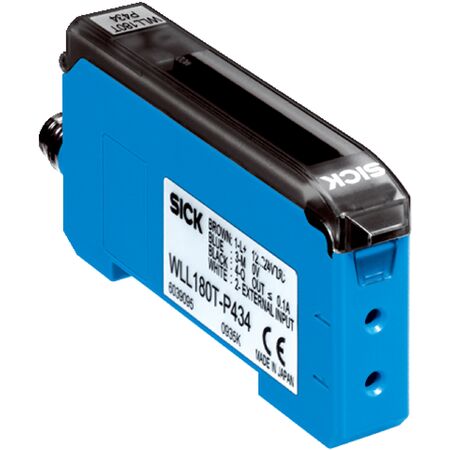

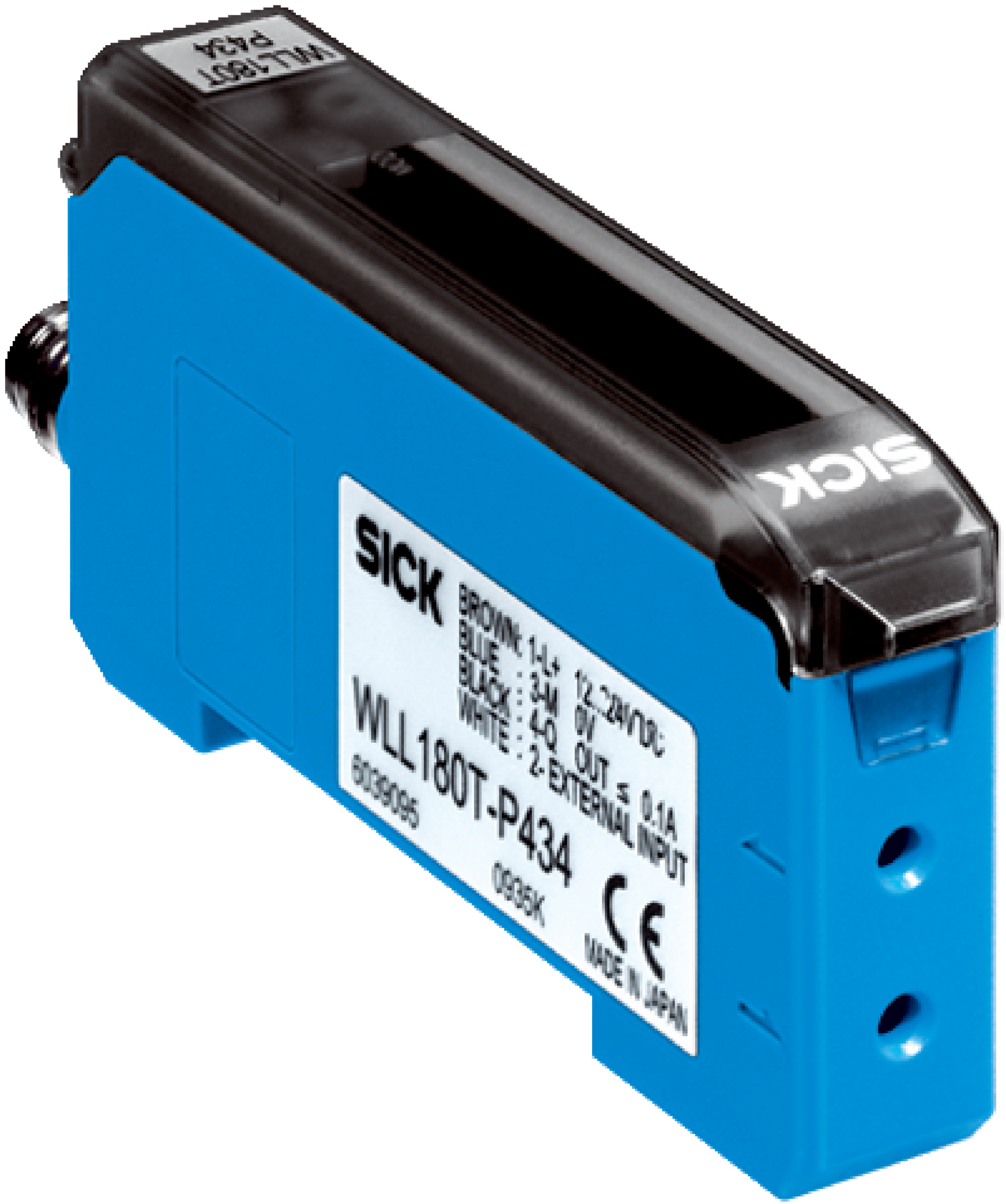

Fiber Optic Amplifier Base Unit | LED Light Source | PNP Outputs | IP50 Rated | by SICK
The Fiber Optic Amplifier Base Unit is designed for industrial automation, featuring a visible red LED light source at 650 nm and two configurable PNP outputs for light/dark switching. With a high switching frequency of up to 31.2 kHz and a robust IP50-rated housing, this amplifier is perfect for machine safety and monitoring applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic amplifier base unit
- Light source: LED, visible red light at 650 nm wavelength
- Average LED service life: 100,000 hours at 25°C
- Supply voltage: 12 V DC to 24 V DC with ≤10% ripple
- Current consumption: ≤50 mA
- Digital outputs: 2 individually adjustable PNP outputs with light/dark switching
- Switching frequency: up to 31.2 kHz
- Response time: ≤16 µs
- Housing material: Plastic ABS/PC
- Connection: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP50
- Operating temperature range: -25°C to +55°C
- Storage temperature range: -25°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC standard: EN 60947-5-2
- MTTFD: 319 years
- Mission time: 20 years
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with configurable sensor parameters
- Visible red LED light source with 650 nm wavelength
- Complementary switching outputs with PNP type and light/dark switching modes
- High switching frequency up to 31.2 kHz and programmable delay times
- Robust plastic ABS/PC housing with IP50 protection rating
- LED indicators for switching output status
- Long LED service life of 100,000 hours at 25°C
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
- RoHS compliant and multiple international conformity certificates
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12-24 V DC
- Long LED service life reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK WLL180T-M434S04 Fiber-optic Amplifier Base Unit is available for immediate purchase, ideal for industrial automation and sensing applications.
