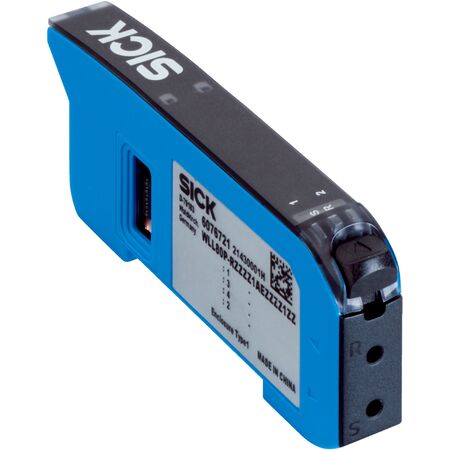

Fiber Optic Amplifier Expansion Module | LED Light Source | IP54 Rated | by SICK
The Fiber Optic Amplifier Expansion Module is designed for industrial automation, featuring a visible red LED light source at 660 nm and an impressive average service life of 100,000 hours. With a robust IP54-rated housing and high switching frequency up to 31.2 kHz, this unit is perfect for sensing and detection applications in various environments, ensuring reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic amplifier expansion unit
- Light source: LED, visible red light at 660 nm wavelength
- Average LED service life: 100,000 hours at 25°C
- Supply voltage: 12 V DC to 24 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Protection class: III
- Switching mode: Light/dark switching
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Housing material: Plastic (PC) with elastomer rubber operating buttons
- Enclosure rating: IP54
- Operating temperature range: -25°C to +55°C
- Storage temperature range: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Communication interface: Serial
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with visible red LED light source
- LED wavelength: 660 nm with an average service life of 100,000 hours at 25°C
- Status indication via green and yellow LEDs for power and switching outputs
- High switching frequency up to 31.2 kHz with light/dark switching mode
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25°C to +55°C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Communication interface includes serial connectivity
- Multiple timer functions and switching signal options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic amplifier systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for sensing and detection
- Expansion unit for fiber-optic amplifier systems
- Use in environments requiring visible red light sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WLL80P-RZZZZ1AEZZZZ1ZZ fiber-optic amplifier expansion unit is available for immediate purchase, ideal for industrial automation and sensing applications.
