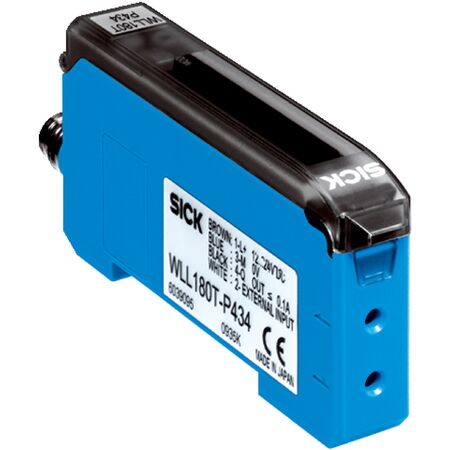

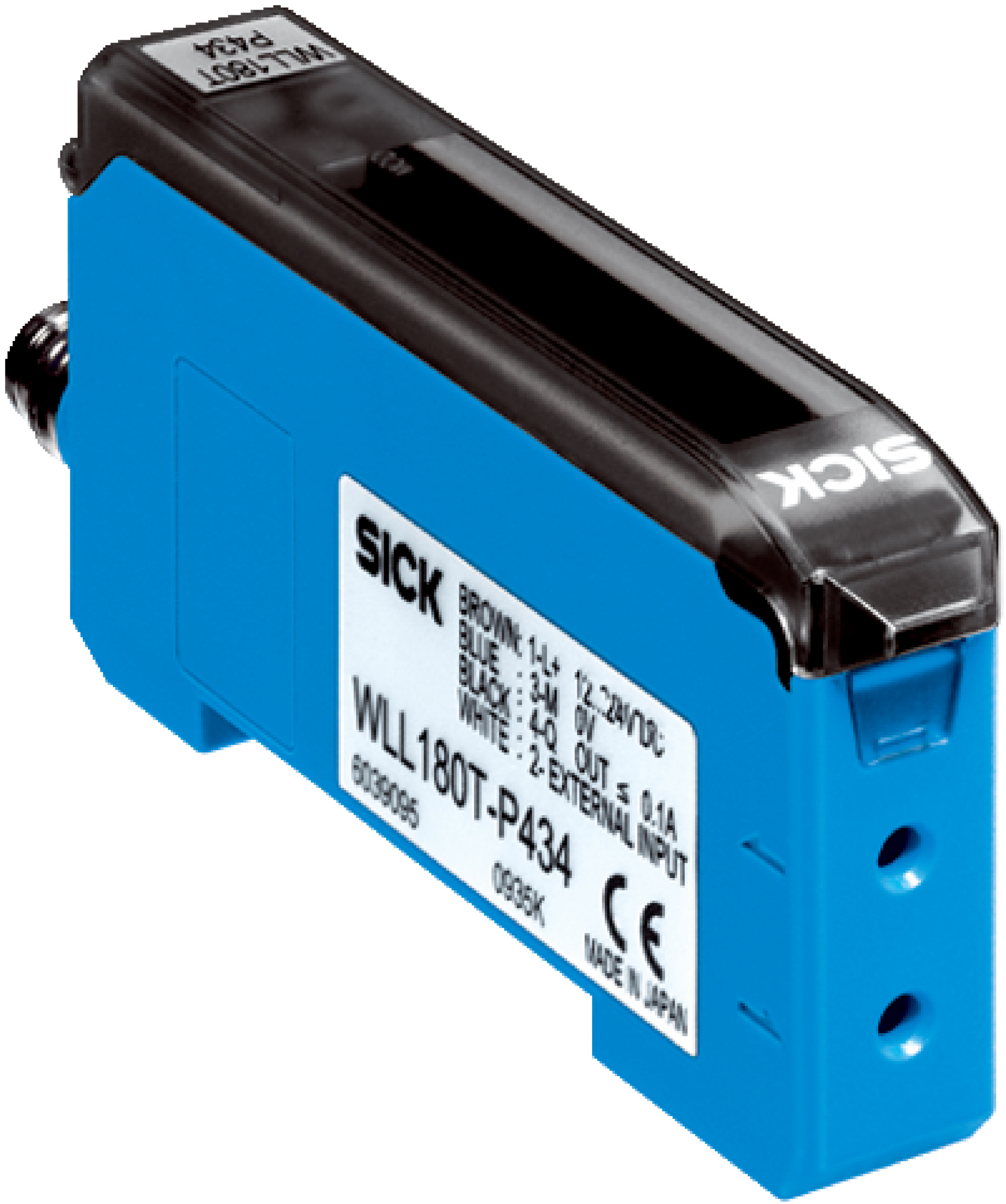

Fiber Optic Amplifier Expansion Unit | 650 nm LED | IP50 Rated | by SICK
The Fiber Optic Amplifier Expansion Unit is designed for industrial automation, featuring a 650 nm LED light source with a lifespan of 100,000 hours. With a robust IP50-rated housing and a fast response time of ≤ 16 µs, it’s perfect for object detection and sensing in various environments. This unit includes a programmable delay and is compliant with essential safety standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ≤ 10% ripple
- Current consumption: ≤ 50 mA
- Digital output: 1 PNP output, light/dark switching, manually selectable
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Housing material: Plastic ABS/PC
- Cable: 2-wire, 2 m length, 0.2 mm² conductor size, PVC insulation
- Enclosure rating: IP50 (EN 60529)
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC compliant to EN 60947-5-2
- LED risk group: Free group according to EN 62471 and IEC 62471
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with visible red LED light source
- LED wavelength: 650 nm with an average service life of 100,000 hours at 25°C
- Switching frequency with object: 90.9 Hz
- Digital output: 1 PNP output with light/dark switching, manually selectable
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Status LED for digital output indication
- Programmable delay time from 0 ms to 9,999 ms
- Robust plastic ABS/PC housing with IP50 enclosure rating
- Operating temperature range from -25°C to +55°C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 55 Hz
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and sensing
- Expansion unit for fiber-optic sensor systems
- Use in environments requiring visible red light sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Low power consumption with efficient LED technology
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLL180T-F232S01 Fiber-optic Amplifier Expansion Unit is available for immediate purchase, ideal for industrial automation and sensing applications.
