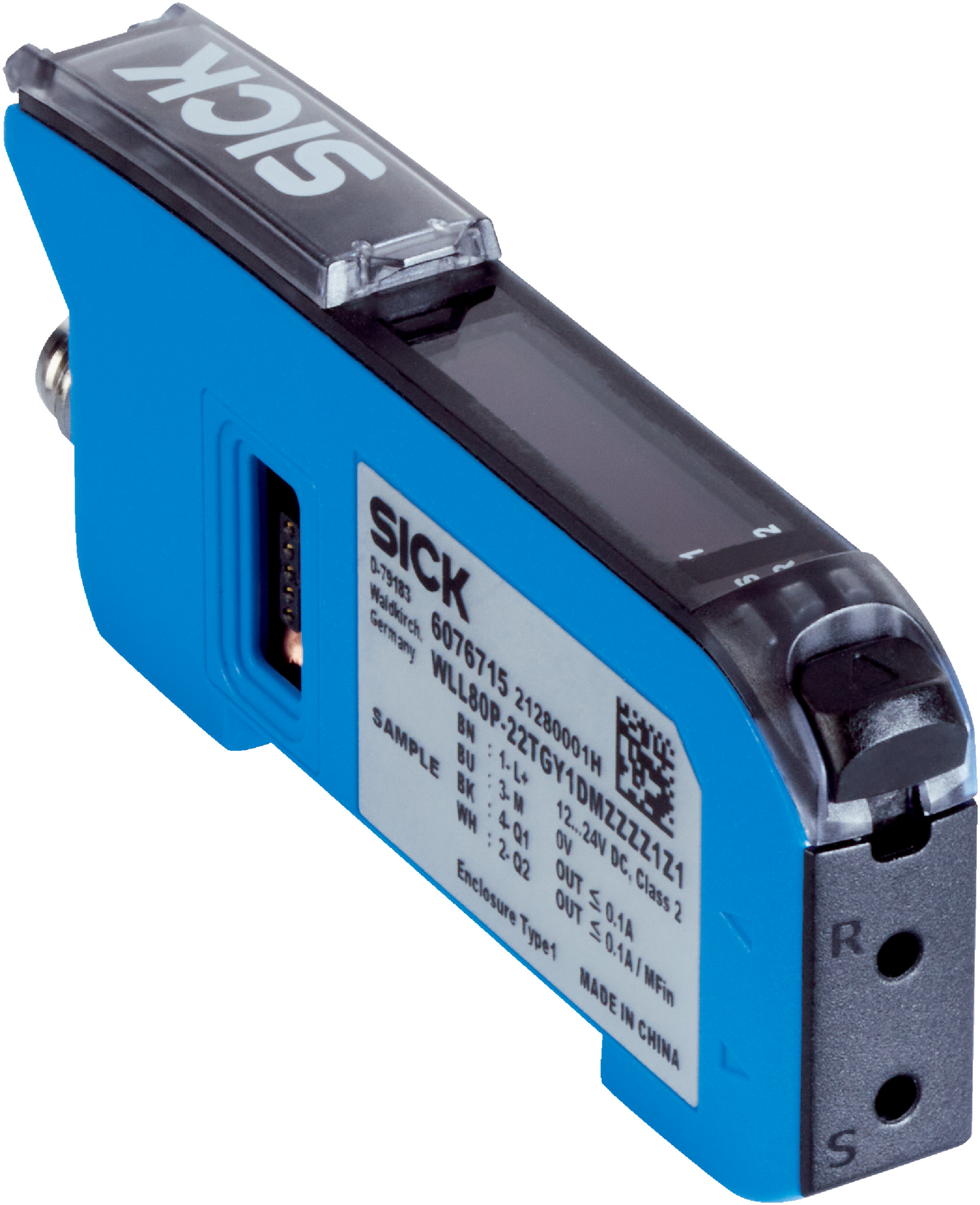

Fiber Optic Amplifier Expansion Unit | 660 nm Red LED | IP54 Rated | Fast Response Time | by SICK
The Fiber Optic Amplifier Expansion Unit is designed for industrial automation, featuring a 660 nm visible red LED light source and two adjustable push-pull digital outputs. With a fast response time of ≤ 16 µs and a robust IP54-rated housing, it's perfect for object detection and machine safety applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- LED wavelength: 660 nm visible red light
- LED risk group: Free group according to EN 62471
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP54
- Housing material: Plastic (PC)
- Connection: Male M8, 4-pin connector
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- LED indicators for power and switching output status
- Configurable via display and operating buttons with multilingual menu
- High switching frequency up to 31.2 kHz and fast response time ≤ 16 µs
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Long LED service life of 100,000 hours at 25 °C
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and counting
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

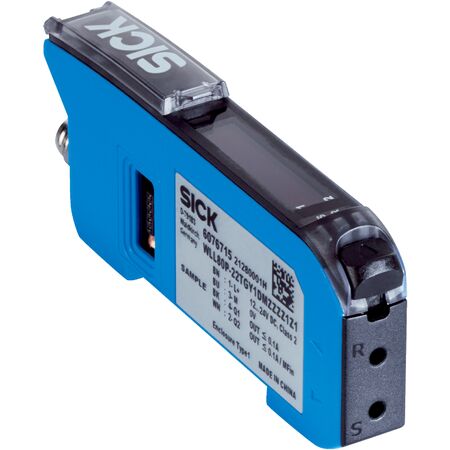

The SICK WLL80P-22TGY1DEZZZZ1Z1 fiber-optic amplifier expansion unit is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
