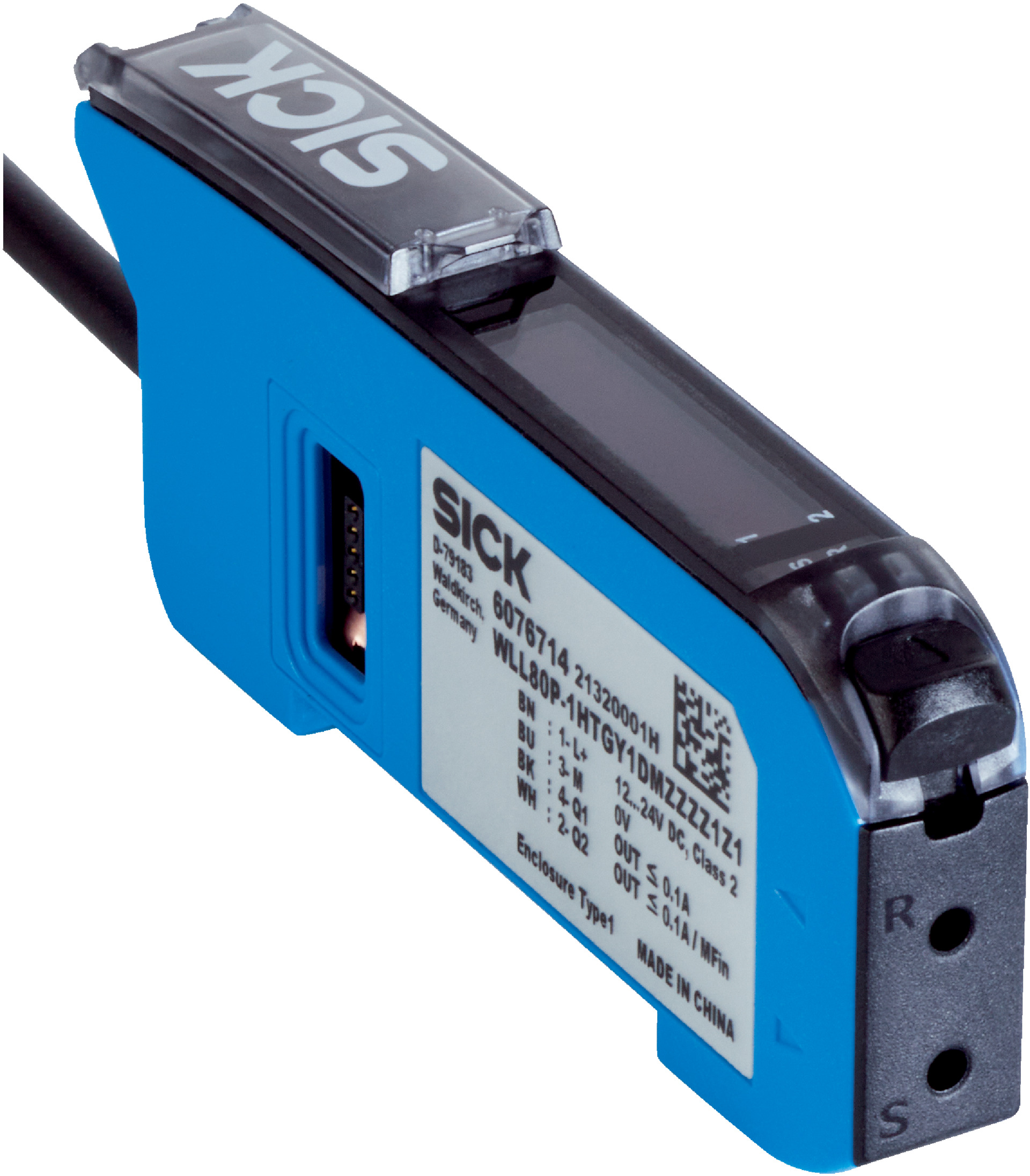

Fiber Optic Amplifier Expansion Unit | Fast Response Time | IP54 Rated | by SICK
The Fiber Optic Amplifier Expansion Unit is designed for industrial automation, featuring a fast response time of ≤ 16 µs and an IP54 rated housing for durability in harsh environments. With two adjustable push-pull digital outputs and a visible red LED light source, it's perfect for object detection and machine safety applications, ensuring reliable performance in factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- LED wavelength: 660 nm visible red light
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP54
- Housing material: Plastic (PC) with protective hood
- Cable: 3-wire, 2 m length, PVC, diameter 4 mm
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with visible red LED light source
- LED risk group free according to EN 62471 and IEC 62471
- Adjustable sensing range depending on optical fiber cable used
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- Fast response time ≤ 16 µs and high switching frequency up to 31.2 kHz
- IP54 rated housing suitable for industrial environments
- Multilingual display for sensor function configuration
- Robust plastic housing with protective hood and elastomer operating buttons
- Cable connection with 3-wire, 2 m length, and deep-freeze property
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and counting
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

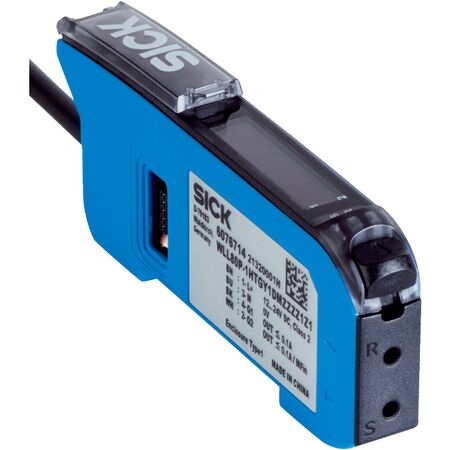

The SICK WLL80P-1GU2Y1DEZZZZ1Z1 fiber-optic amplifier expansion unit is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
