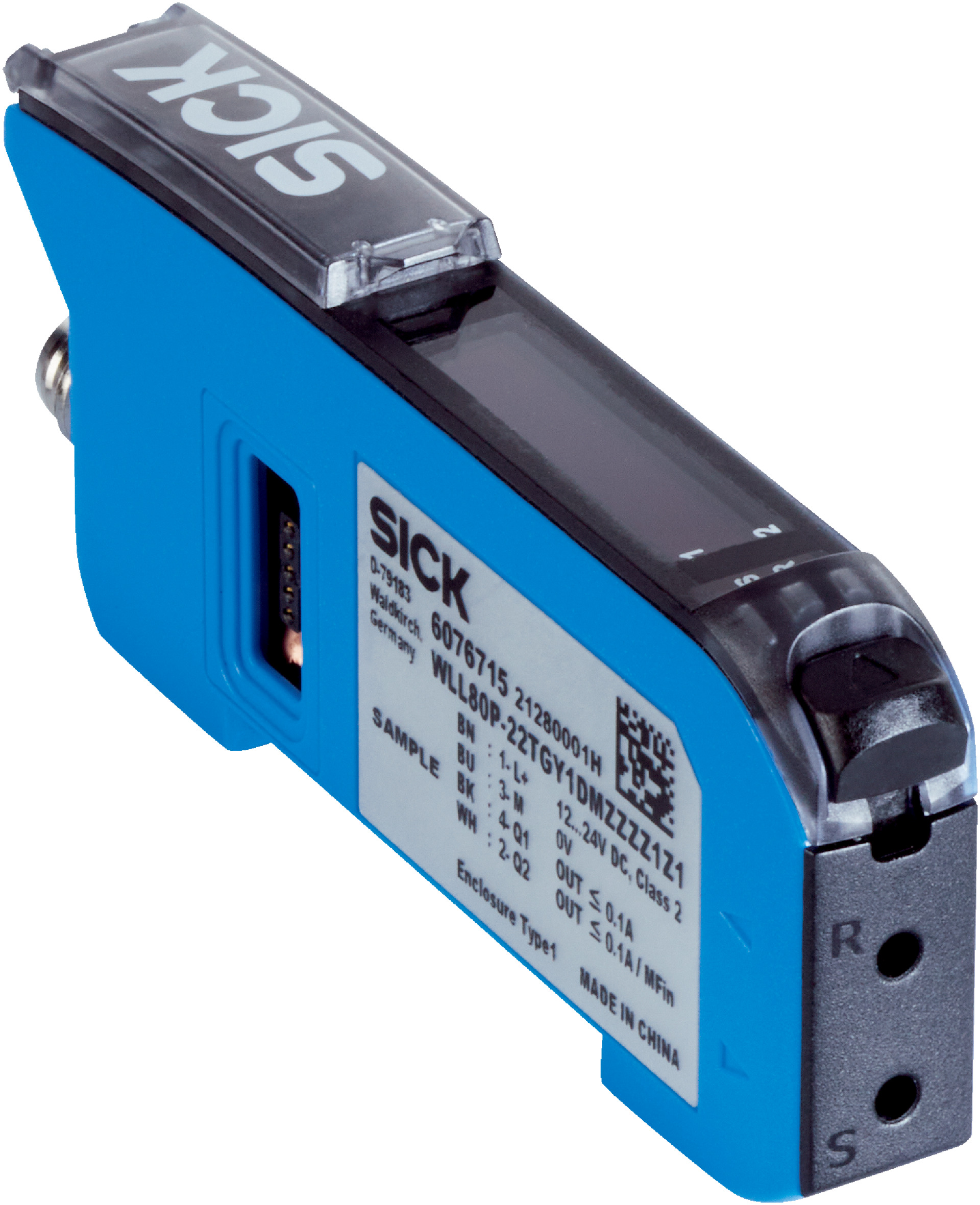

Fiber Optic Amplifier Expansion Unit | Infrared LED Light Source | IP54 Rated | by SICK
The Fiber Optic Amplifier Expansion Unit features an infrared LED light source, designed for industrial automation applications such as object detection and machine safety. With a robust IP54 rating and a long LED service life of 100,000 hours, it ensures reliable performance in challenging environments, making it ideal for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic amplifier expansion unit
- Light source: Infrared LED, wavelength 880 nm
- Average LED service life: 100,000 hours at 25°C
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 50 mA
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Protection class: III
- Enclosure rating: IP54
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Connection: Male M8, 4-pin connector
- Housing material: Plastic (PC)
- Operating buttons: Elastomer, rubber
- Mounting bracket included
- Dimensions (H x L x W): 33mm x 80mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with infrared LED light source
- Adjustable sensing range depending on optical fiber cable used
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- LED indicators for power and switching output status
- Robust plastic housing with IP54 protection rating
- Operating temperature range from -25°C to +55°C
- High shock and vibration resistance
- Configurable delay times and switching functions via operating buttons or gateway
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and counting
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

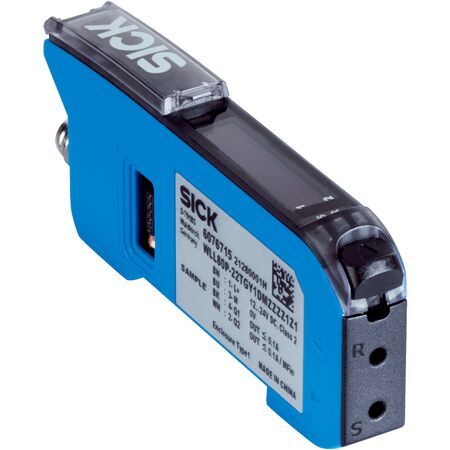

The SICK WLL80I-22TGY3DEZZZZ1Z1 fiber-optic amplifier expansion unit is available for immediate purchase. Ideal for industrial automation and safety applications requiring precise fiber-optic sensing.
