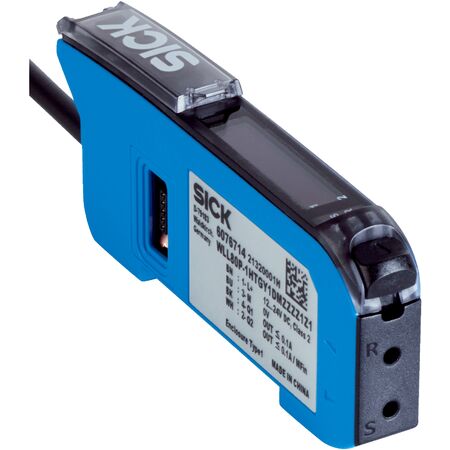

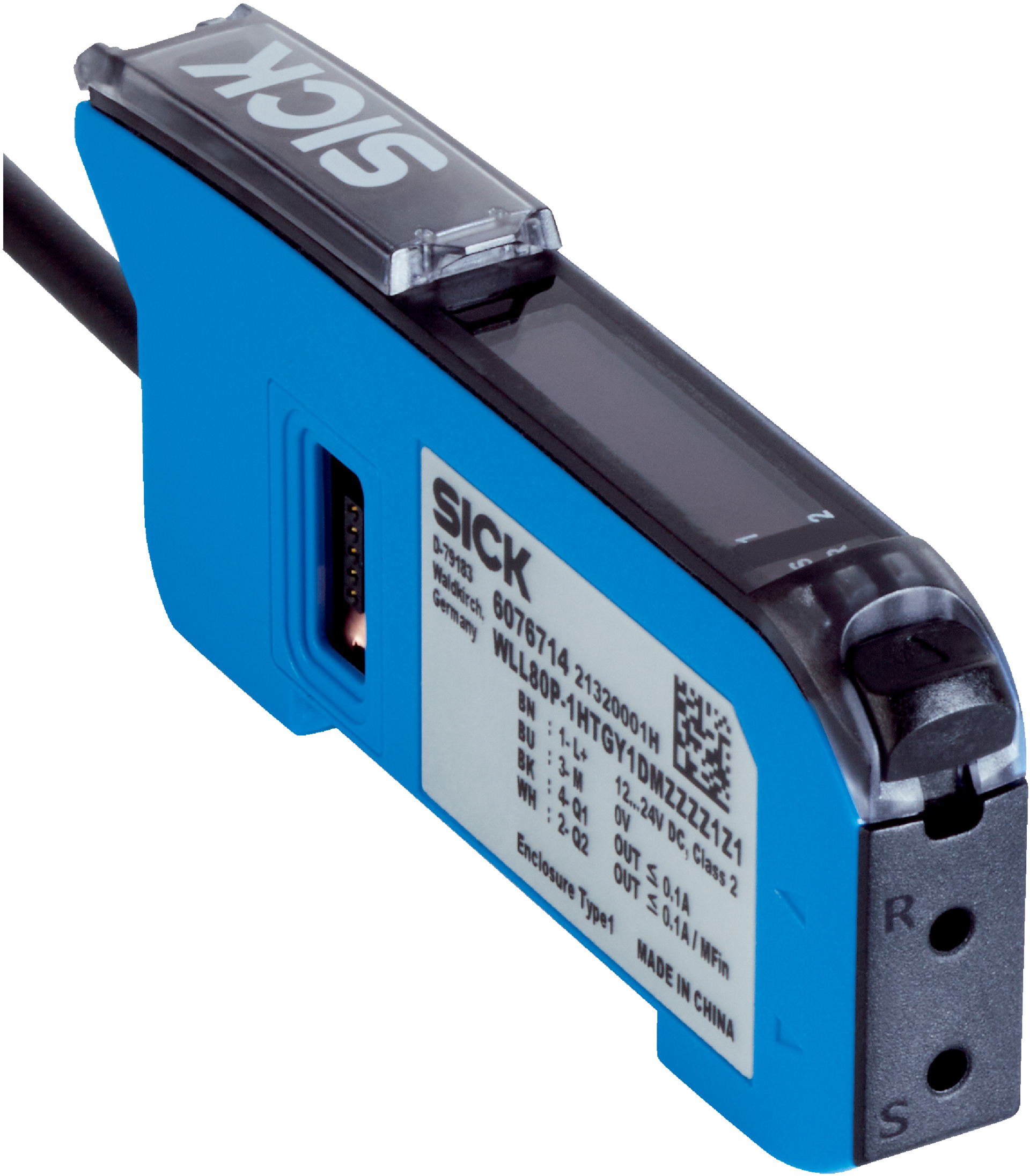

Fiber Optic Amplifier Expansion Unit | Visible Red LED Light | Adjustable Sensing Range | IP54 Rated | by SICK
The Fiber Optic Amplifier Expansion Unit is designed for industrial automation, featuring a visible red LED light source and adjustable sensing range based on the optical fiber cable used. With high switching frequency up to 31.2 kHz and robust IP54-rated housing, it's perfect for machine safety and monitoring applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier expansion unit with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for power, switching outputs, and teach-in status
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- High switching frequency up to 31.2 kHz and fast response time ≤ 16 µs
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- EMC compliant to EN 60947-5-2 standard
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and counting
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Low power consumption (≤ 50 mA) supports energy-efficient operation
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL80P-1FTGY1DEZZZZ1Z1 fiber-optic amplifier expansion unit is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
