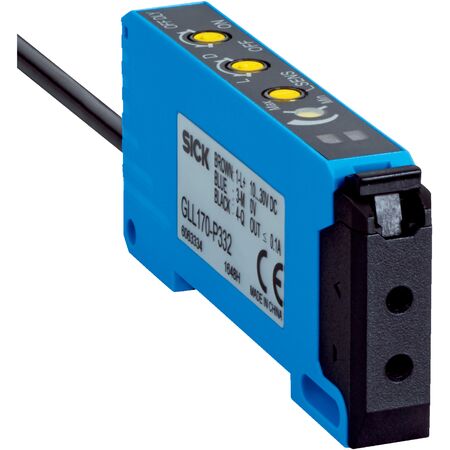

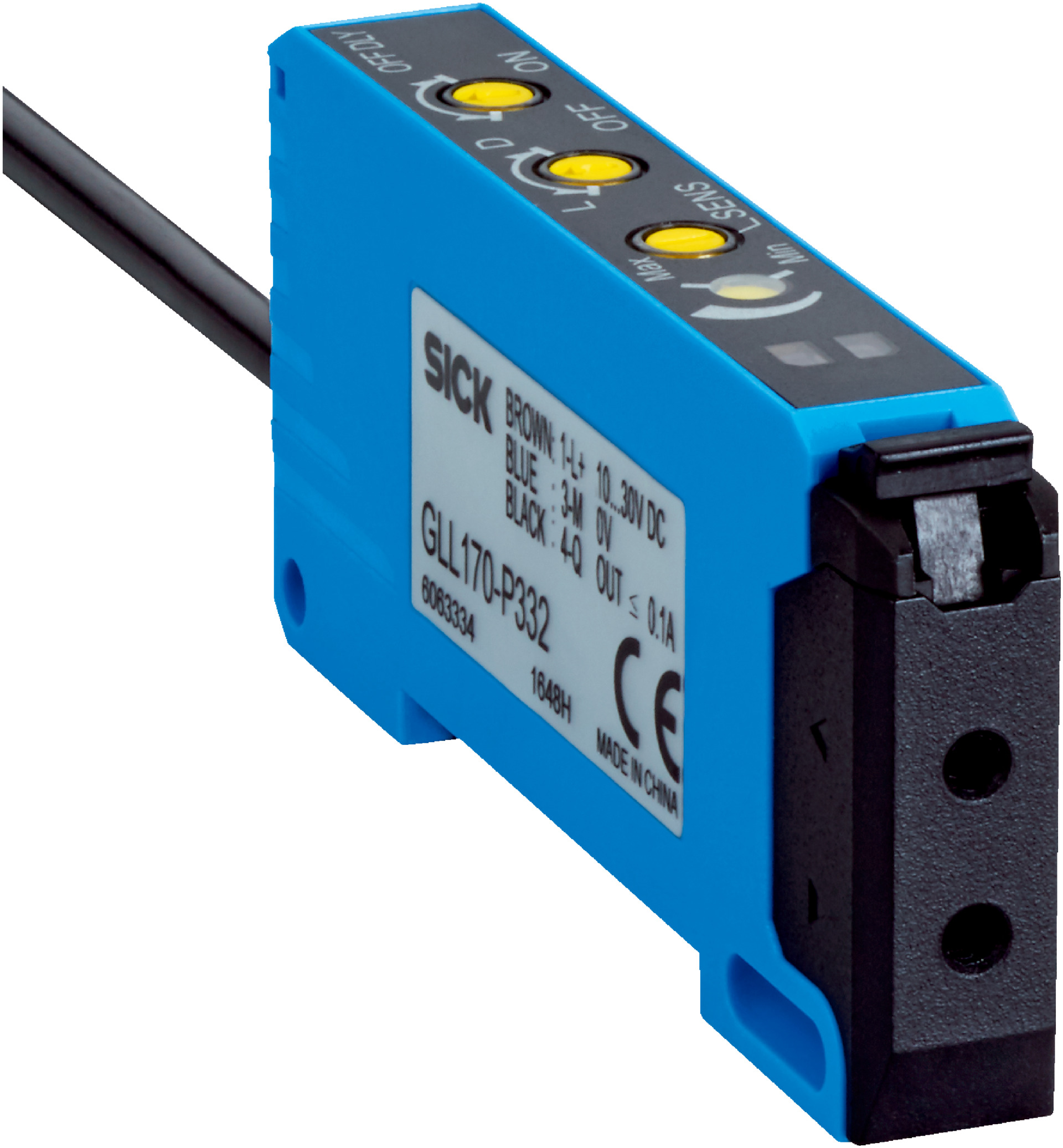

Fiber Optic Amplifier GLL170-N332S07 | IP66 Rated | 632 nm LED Light Source | 2 kHz Switching Frequency | by SICK
The Fiber Optic Amplifier GLL170-N332S07 is designed for industrial automation, featuring a visible red LED light source at 632 nm and an IP66 rated enclosure for dust and water protection. With a fast response time of ≤ 250 µs and a switching frequency of 2 kHz, it's perfect for precise object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Digital output: 1 NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: 2 kHz
- LED wavelength: 632 nm
- Protection class: III
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable: 3-wire, 2 m length, Ø 3.8 mm
- Housing material: Plastic PC/POM
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Potentiometer for setting sensing range, switching mode, and switch-off delay
- LED indicators for power and digital output status
- Reduced sender power for safety
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Response time ≤ 250 µs and switching frequency 2 kHz
- Selectable delay time via rotary switch (0 ms to 40 ms)
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- RoHS compliant and multiple international conformity certificates
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring precise sensing with fiber-optic cables
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with LED light source
- Long LED service life of 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLL170-N332S07 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
