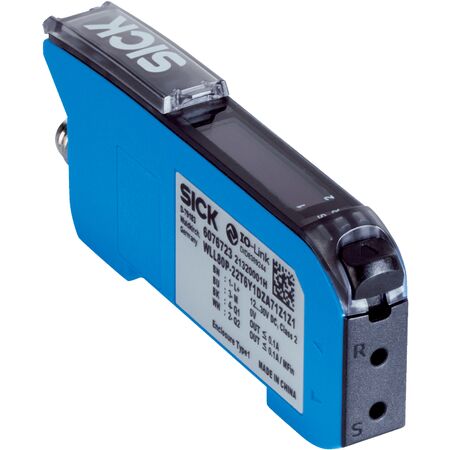

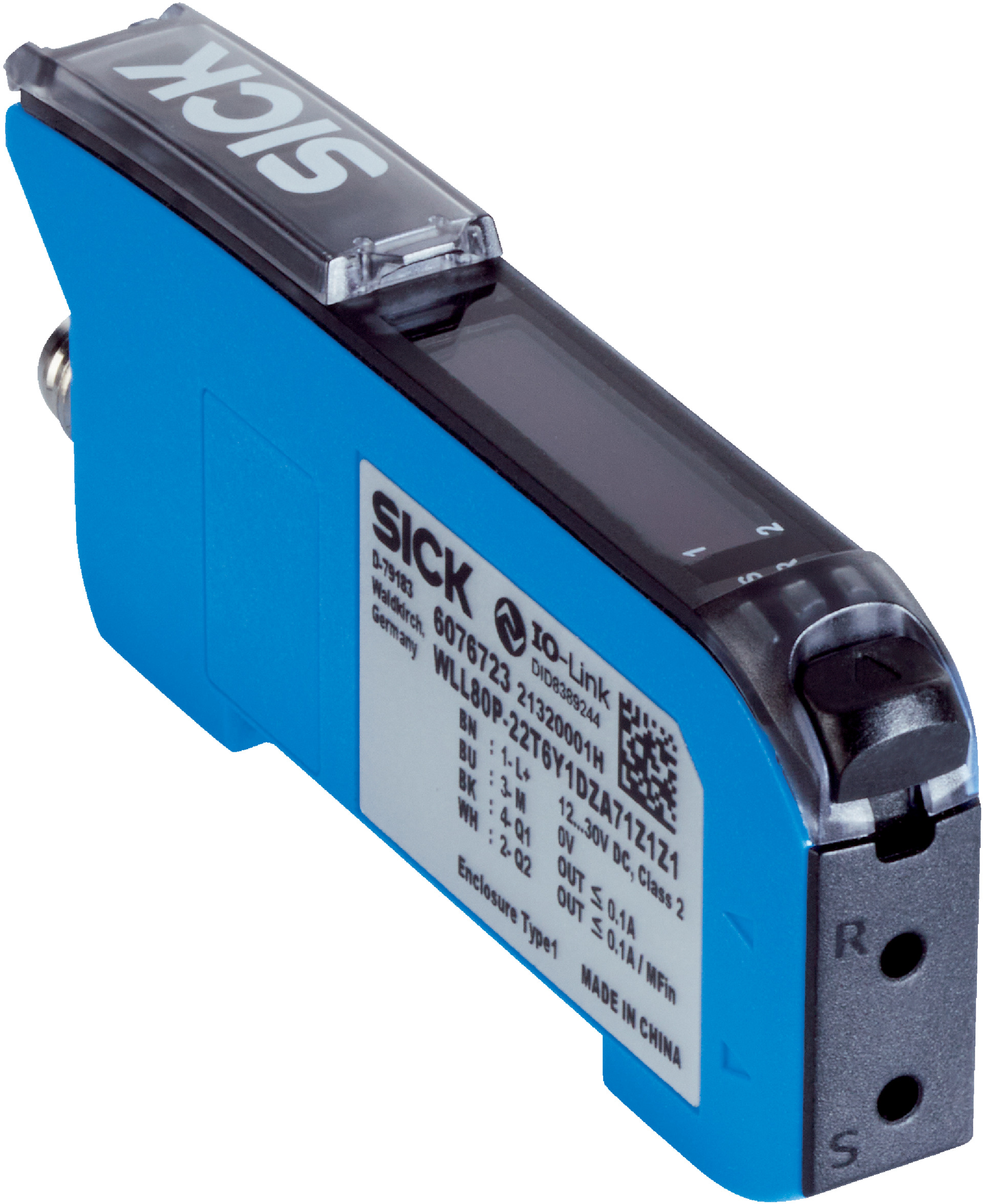

Fiber Optic Amplifier | Infrared LED 880 nm | IO-Link V1.1 | IP54 Rated | by SICK
The Fiber Optic Amplifier is designed for industrial automation, featuring an infrared LED light source with an 880 nm wavelength and an impressive average service life of 100,000 hours. With IO-Link V1.1 communication and two adjustable digital outputs, it ensures reliable object detection and process control. Built for durability with an IP54 rating, this amplifier operates efficiently in temperatures ranging from -25 °C to +55 °C, making it ideal for machine safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic amplifier, stand-alone
- Light source: Infrared LED, wavelength 880 nm
- Average LED service life: 100,000 hours at 25 °C
- Supply voltage: 12 V DC to 30 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Switching frequency: up to 31.2 kHz
- Response time: ≤ 16 µs
- Protection class: III
- Enclosure rating: IP54
- Operating temperature: -25 °C to +55 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Communication: IO-Link V1.1, COM3 (230.4 kbit/s), cycle time 0.5 ms
- Display: Multilingual sensor function display with operating buttons
- Housing material: Plastic (PC) with elastomer operating buttons and metal nickel-plated brass connector
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with 880 nm wavelength and 100,000 hours average service life
- IO-Link V1.1 communication interface with fast cycle time of 0.5 ms and 32 Bit process data length
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching mode
- Robust plastic housing with IP54 protection rating
- Operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
- Multilingual display with operating buttons for sensor configuration
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Process control with fiber-optic sensing
- Machine safety and monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK WLL80I-22T6Y3DZA71Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
