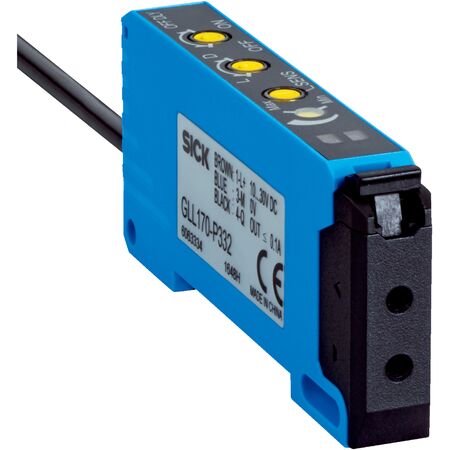

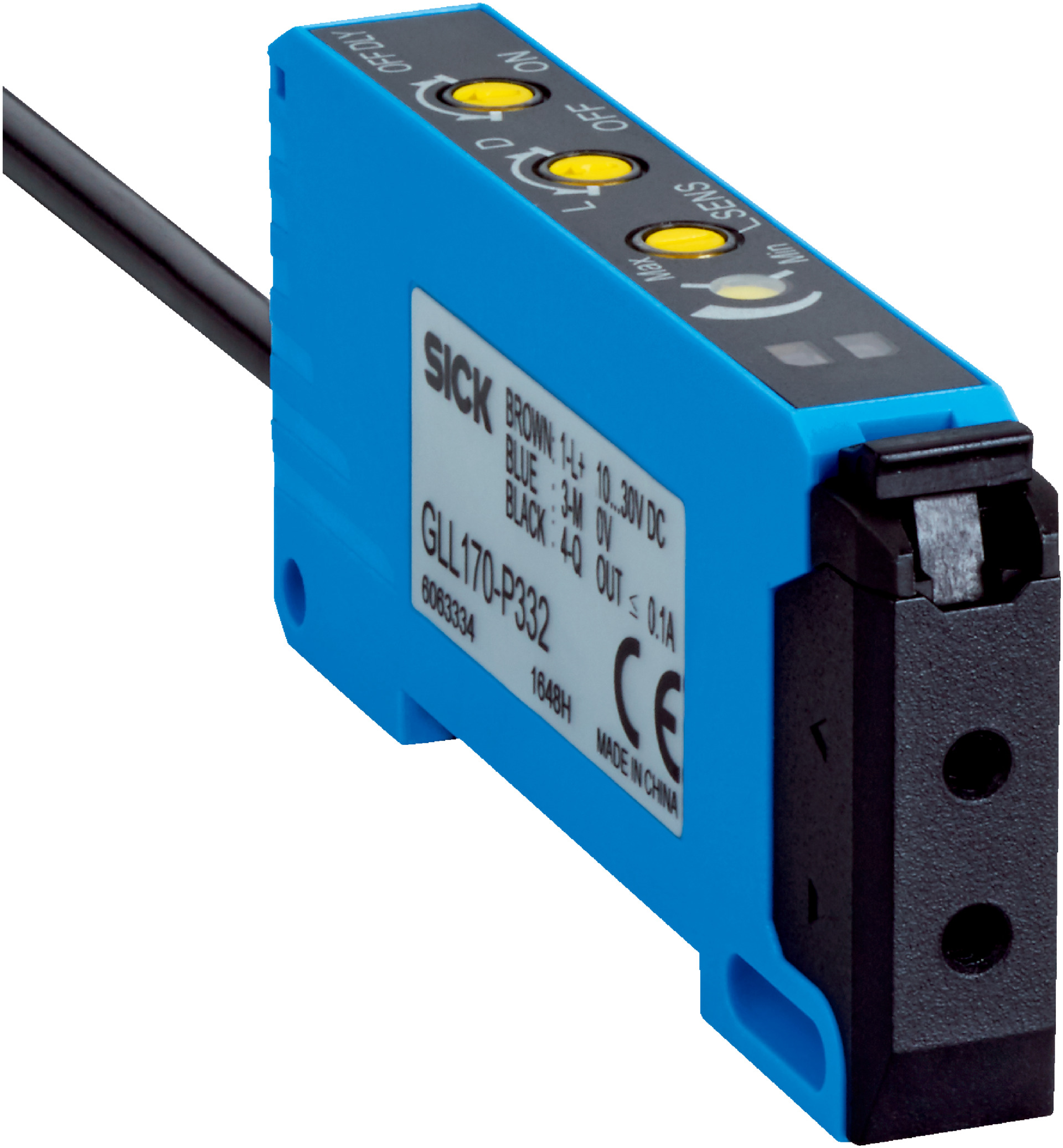

Fiber Optic Amplifier SICK GLL170-N332S02 | IP66 Rated | 1 NPN Digital Output | 632 nm Wavelength | by SICK
The SICK GLL170-N332S02 Fiber Optic Amplifier is designed for industrial automation, featuring a visible red LED light source with a 632 nm wavelength and an IP66 enclosure rating. With a fast response time of ≤ 250 µs and a switching frequency of 2 kHz, it ensures precise object detection and safety monitoring in manufacturing processes. Ideal for environments requiring reliable sensing with fiber-optic cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Protection class: III
- Digital output: 1 NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: 2 kHz
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable: 3-wire, 2 m length, Ø 3.8 mm
- Housing material: Plastic (PC/POM)
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Potentiometer for setting sensing range, switching mode, and switch-off delay
- LED green operating indicator and LED yellow digital output status indicator
- Digital output: 1 NPN, light/dark switching
- Short-circuit, overcurrent, and reverse polarity protected outputs
- Response time ≤ 250 µs and switching frequency 2 kHz
- Housing made of plastic (PC/POM) with IP66 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring precise sensing with fiber-optic cables
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 30 mA current draw
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GLL170-N332S02 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
