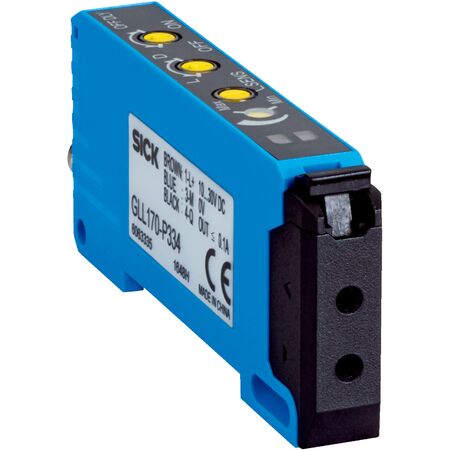

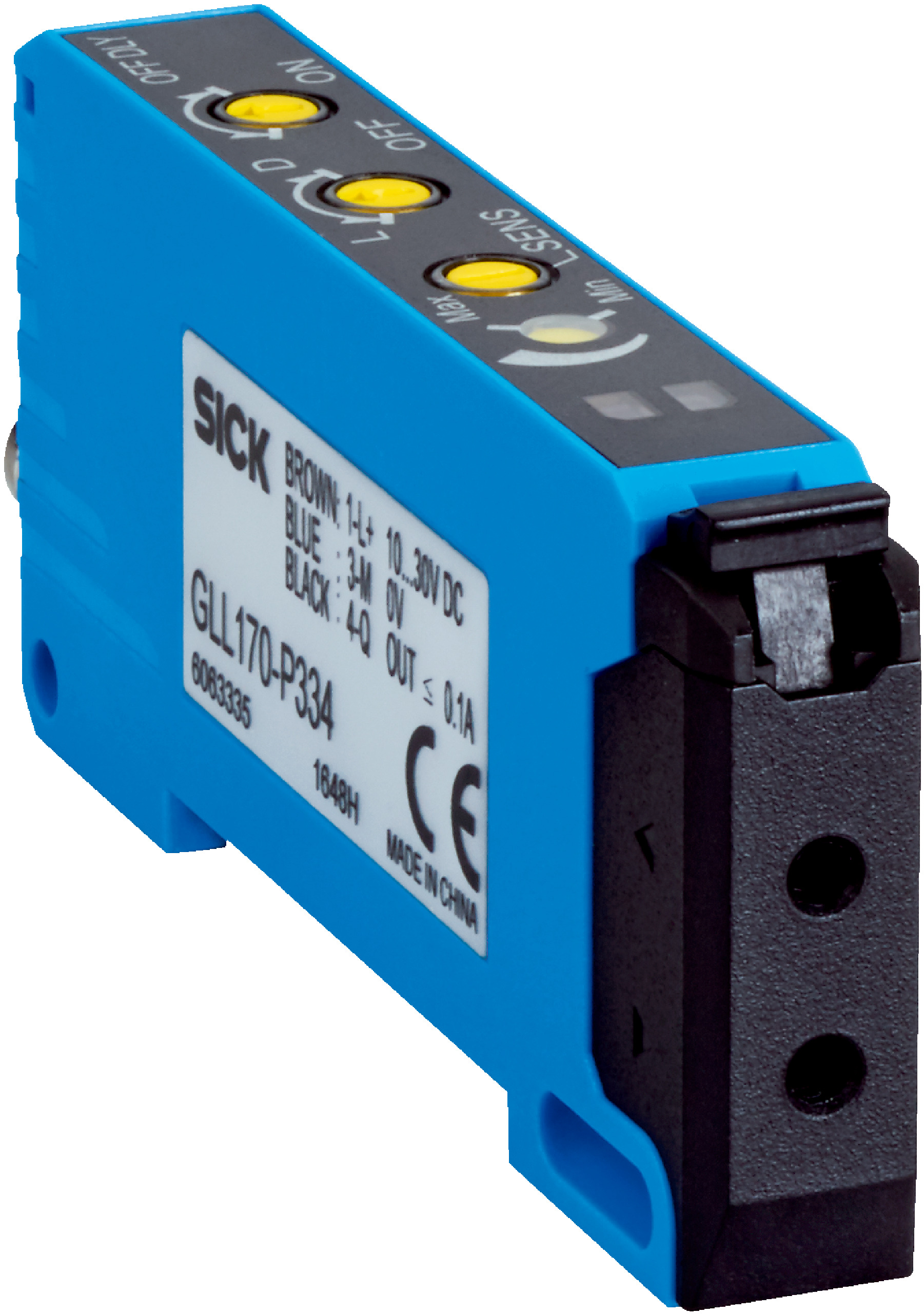

Fiber Optic Amplifier SICK GLL170-P334S08 | IP66 Rated | 750 Hz Switching Frequency | Visible Red LED | by SICK
The Fiber Optic Amplifier SICK GLL170-P334S08 is designed for industrial automation, featuring a high switching frequency of 750 Hz and an IP66 rated enclosure for dust and water protection. With a visible red LED light source at 632 nm, it ensures precise sensing in various applications, making it ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Protection class: III
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 660 µs
- Switching frequency: 750 Hz
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- LED wavelength: 632 nm
- Average LED service life: 100,000 hours at 25 °C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic PC/POM
- Cable material: Plastic PVC
- Maximum tightening torque: 0.5 Nm
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- Free LED risk group marking according to EN 62471
- Potentiometer for setting sensing range, switching mode, and switch-off delay
- LED indicators for power and digital output status
- Reduced transmitting power with 300 µs response time
- Digital PNP output with light/dark switching mode
- Short-circuit, overcurrent, and reverse polarity protected outputs
- High switching frequency of 750 Hz
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring precise sensing with fiber-optic cables
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GLL170-P334S08 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
