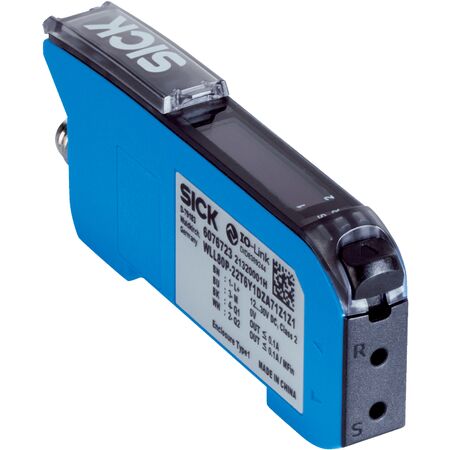

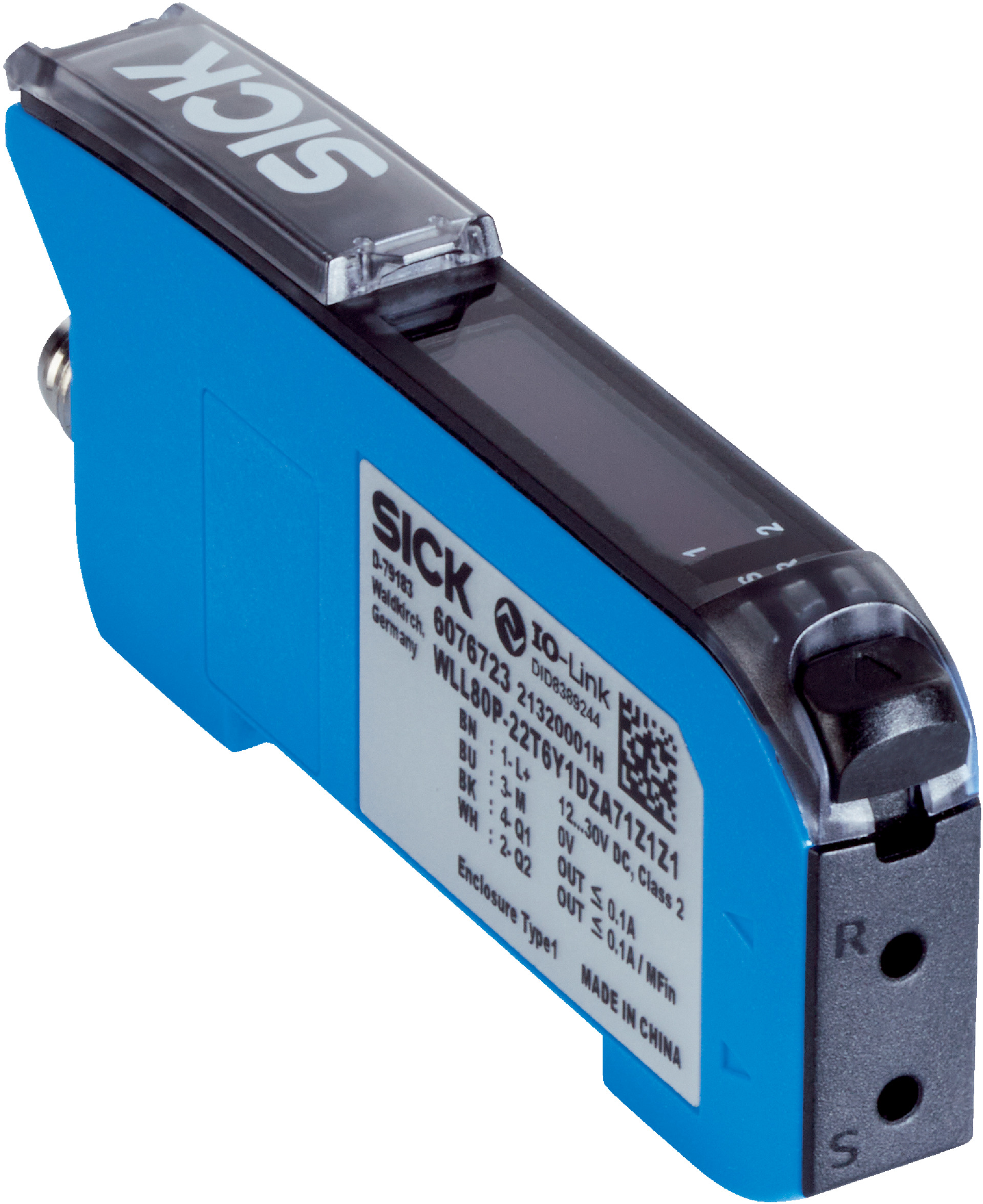

Fiber Optic Amplifier Sensor | IO-Link V1.1 | IP54 Rated | 660 nm LED | by SICK
The Fiber Optic Amplifier Sensor is designed for industrial automation, featuring IO-Link V1.1 communication and a visible 660 nm LED light source. With a compact IP54-rated housing and a wide operating temperature range of -25°C to +55°C, it's perfect for object detection, quality control, and machine safety applications. This sensor ensures reliable performance with a fast response time of ≤ 16 µs and two adjustable digital outputs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Switching frequency: up to 31.2 kHz
- Response time: ≤ 16 µs
- Protection class: III
- Enclosure rating: IP54
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- LED wavelength: 660 nm
- Communication: IO-Link V1.1, COM3 (230.4 kbit/s), cycle time 0.5 ms
- Housing material: Plastic (PC)
- Connector: Male M8, 4-pin
- Dimensions (H x L x W): 33mm x 80mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- Free LED risk group according to EN 62471
- IO-Link V1.1 communication interface with 0.5 ms cycle time
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- Compact plastic housing with IP54 protection rating
- Operating temperature range from -25°C to +55°C
- Reduced scanning range to avoid saturation
- Display with multi-language menu and LED status indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Machine safety and presence detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL80P-22T6Y2DZA71Z1Z1 fiber-optic amplifier sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
