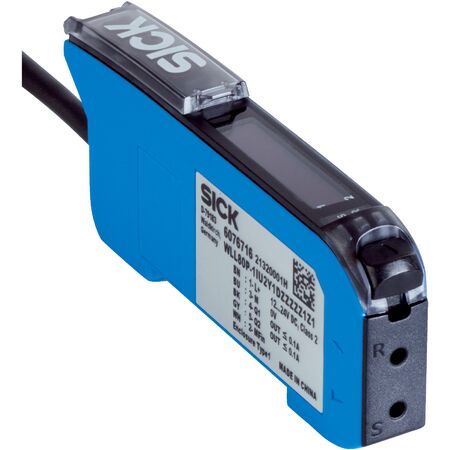

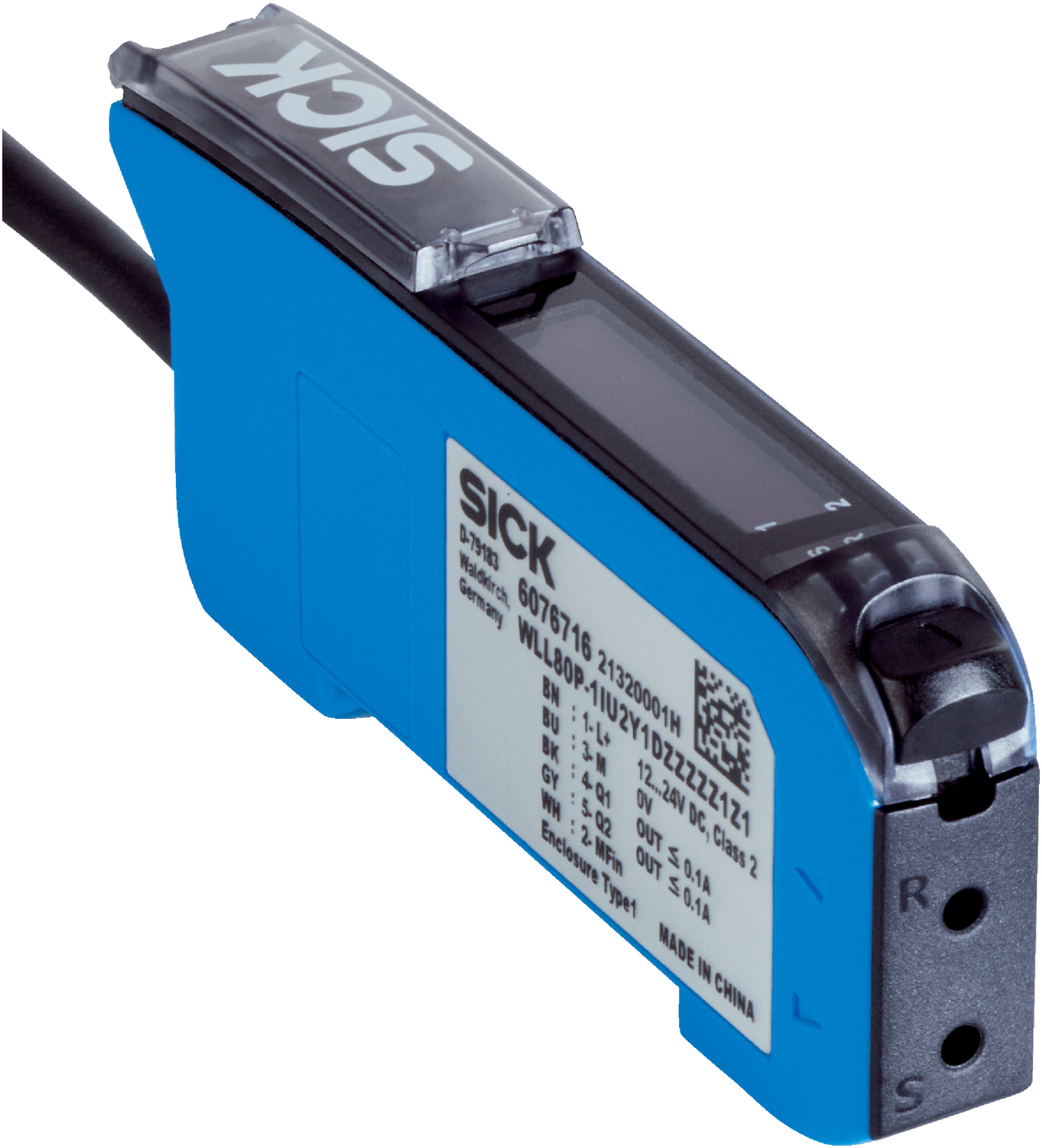

Fiber Optic Amplifier Sensor | Stand-Alone Design | High Switching Frequency | IP54 Rated | by SICK
The Fiber Optic Amplifier Sensor is designed for industrial automation, featuring a stand-alone design with a visible red LED light source and high switching frequency up to 31.2 kHz. Ideal for object detection and machine safety, this robust sensor operates in a wide temperature range from -25°C to +55°C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic amplifier, stand-alone
- Light source: LED, visible red light at 660 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 12 V DC to 30 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Switching frequency: up to 31.2 kHz
- Response time: ≤ 16 µs
- Protection class: III
- Enclosure rating: IP54
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Cable: 4-wire, 2 m length, 0.18 mm² conductor size
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s), cycle time 0.5 ms
- Display languages: German, English, Chinese, Korean, Japanese
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Configurable sensor parameters via IO-Link and operating buttons
- High switching frequency up to 31.2 kHz
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25°C to +55°C
- Long LED service life of 100,000 hours at 25°C
- Multiple LED indicators for operating status and received light beam
- Supports various timer functions and logic functions
- Cable connection with 2 m length and 4-wire configuration
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and connection, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Machine safety and presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL80P-1HT6Y1DZA71Z1Z1 fiber-optic amplifier sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
