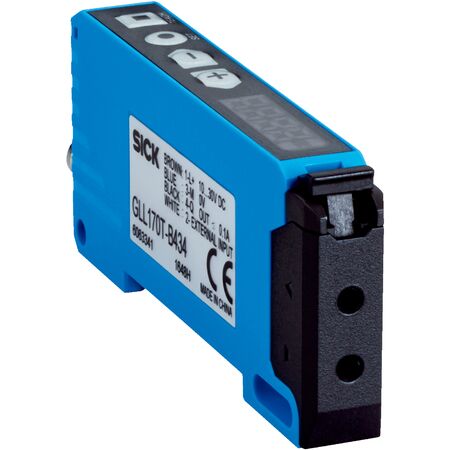

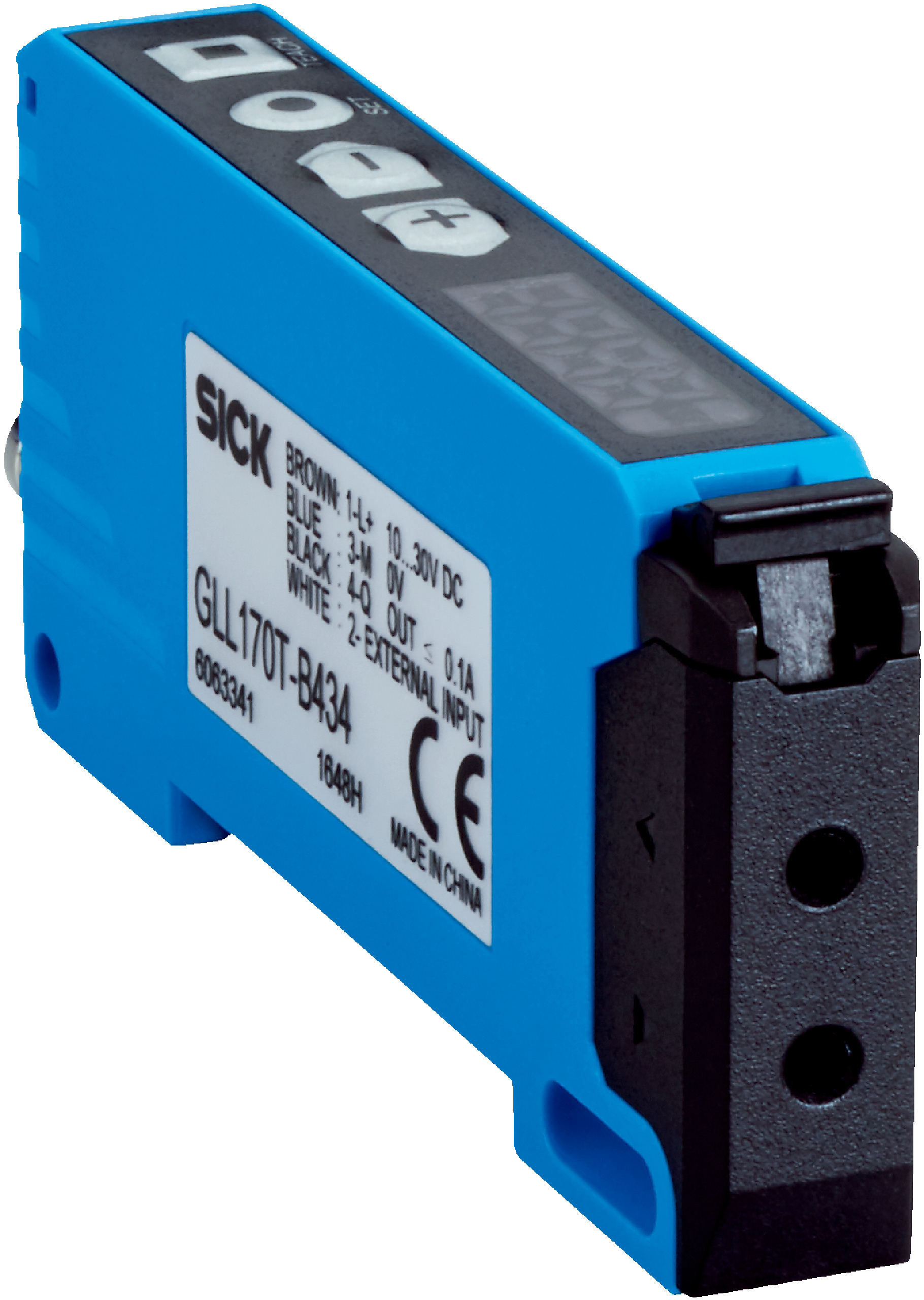

Fiber Optic Amplifier Sensor | Stand-alone Device | IP66 Rated | High Switching Frequency | by SICK
The Fiber Optic Amplifier Sensor is a stand-alone device designed for industrial automation, featuring a high switching frequency of up to 10 kHz and an IP66 rated enclosure for dust and water protection. Ideal for machine safety and quality control applications, this sensor ensures reliable object detection with a visible red LED light source and programmable delay time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Protection class: III
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable diameter: Ø 3.8 mm
- Housing material: Plastic PC/POM
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier device
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Operating indicator with green LED and digital output status with yellow LED
- Programmable delay time from 0 ms to 9,999 ms
- Light/dark switching mode with PNP digital output
- High switching frequency up to 10 kHz
- IP66 rated enclosure for dust and water protection
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 55 Hz
- RoHS compliant and multiple international certifications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Quality control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLL170T-B434 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety control applications.
