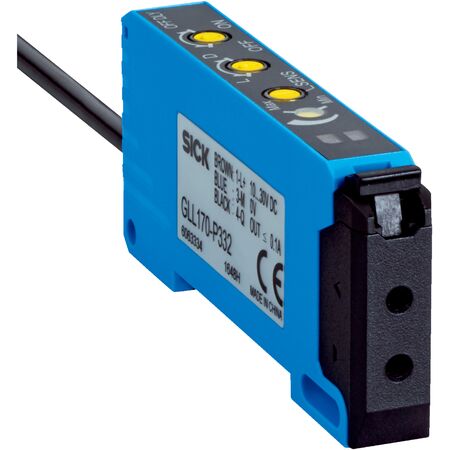

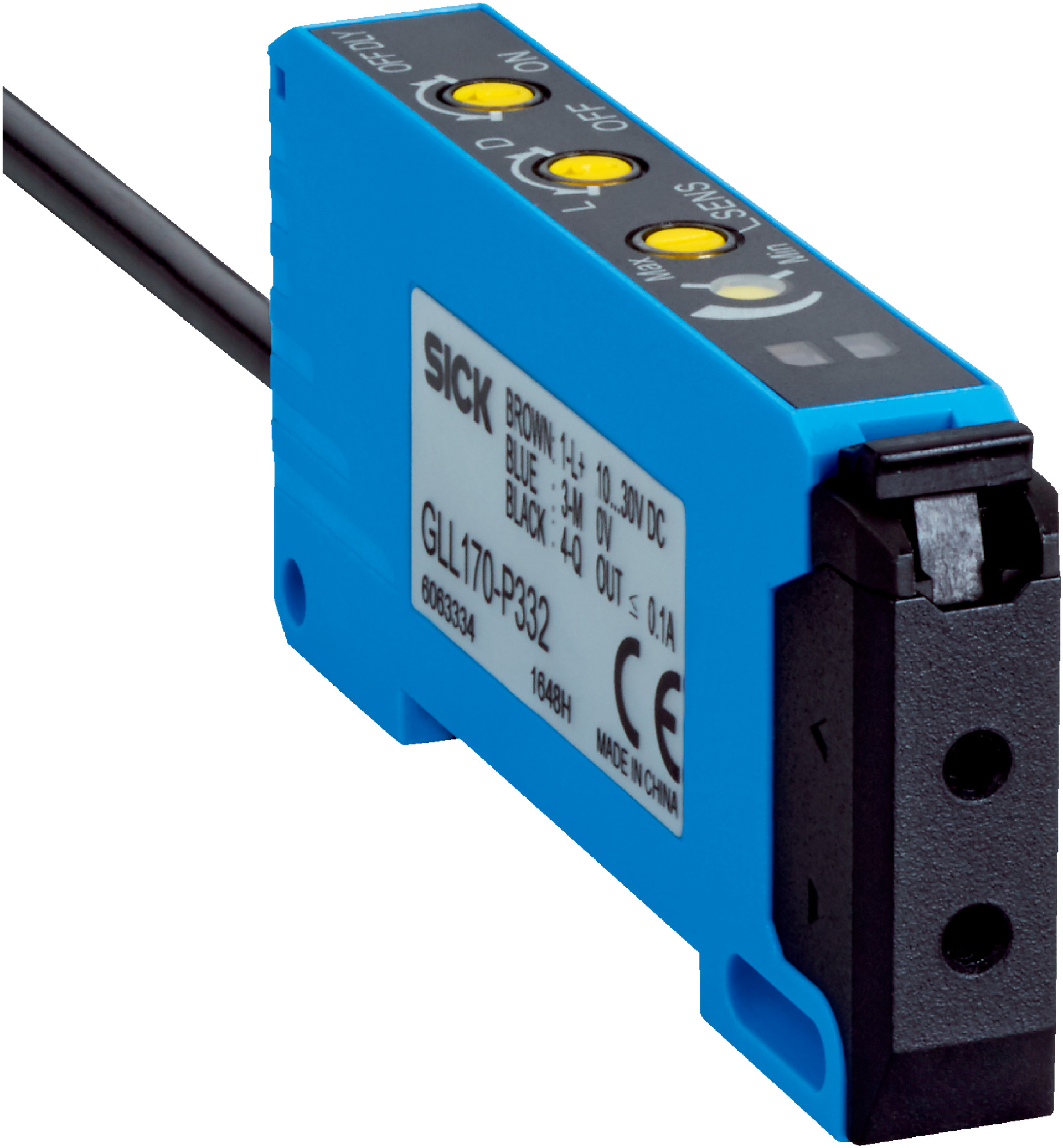

Fiber Optic Amplifier SICK GLL170-P332S03 | IP66 Rated | 100,000 Hour LED Life | by SICK
The Fiber Optic Amplifier SICK GLL170-P332S03 features a visible red LED light source at 632 nm, making it ideal for industrial automation and object detection. With an IP66 rated enclosure, it ensures protection against dust and water, while its rapid response time of ≤ 250 µs and switching frequency of 2 kHz enhance performance in manufacturing processes. Designed for professional installation, this amplifier is perfect for safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Light source: LED, visible red light at 632 nm wavelength
- LED service life: 100,000 hours at 25 °C
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: 2 kHz
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable length: 2 m, 3-wire cable with 0.2 mm² conductor size
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Potentiometer for setting sensing range, switching mode, and switch-off delay
- LED indicators for power and digital output status
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Response time ≤ 250 µs and switching frequency 2 kHz
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- Cable connection with 2 m length and 3-wire configuration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use with optical fiber cables for sensing applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLL170-P332S03 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
