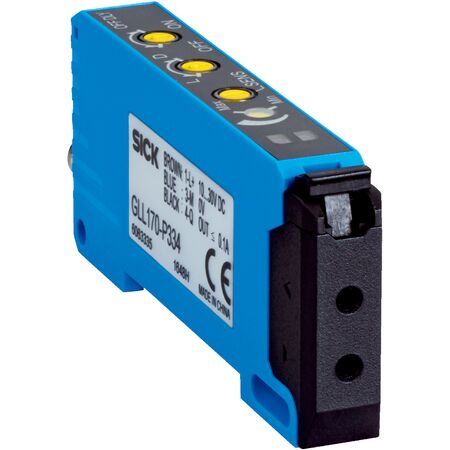

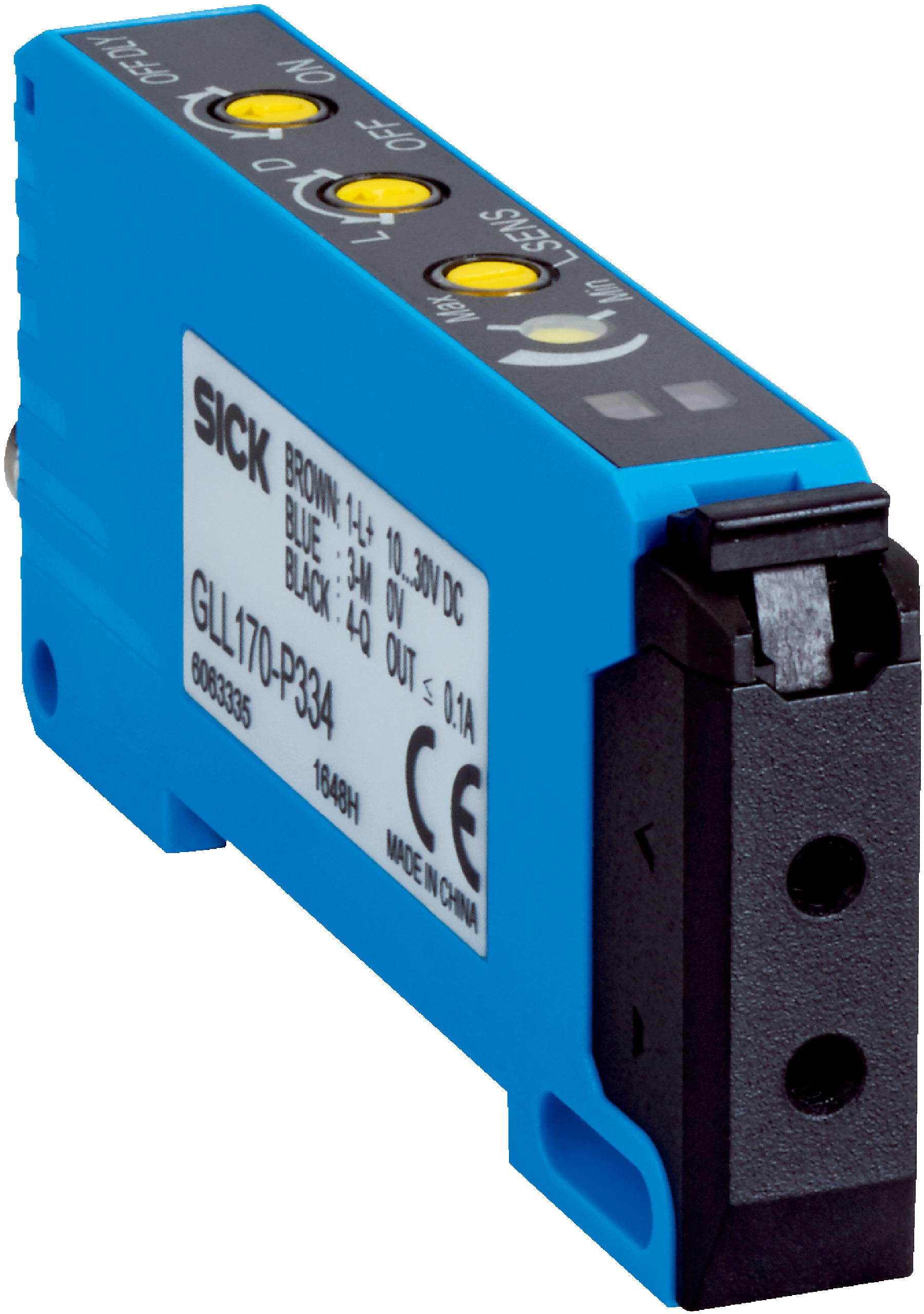

Fiber Optic Amplifier SICK GLL170-P333 | IP66 Rated | 2 kHz Switching Frequency | Visible Red LED | by SICK
The Fiber Optic Amplifier SICK GLL170-P333 is designed for industrial automation, featuring a robust IP66-rated housing and a high switching frequency of up to 2 kHz. With a visible red LED light source at 632 nm, it ensures reliable object detection and monitoring in various applications, including quality control and machine safety. Built for durability, it operates in a wide temperature range from -25°C to +55°C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤30 mA
- Protection class: III
- Digital output: 1 PNP output with light/dark switching
- Output current max: ≤100 mA
- Response time: ≤250 µs
- Switching frequency: 2 kHz
- Delay time: Selectable 0 ms to 40 ms via rotary switch
- Housing material: Plastic (PC/POM)
- Connection: M8, 3-pin connector
- Enclosure rating: IP66
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- LED wavelength: 632 nm
- LED average service life: 100,000 hours at 25°C
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Adjustable sensing range, switching mode, and switch-off delay via potentiometer
- LED indicators for power and output status
- High switching frequency up to 2 kHz
- Short-circuit, overcurrent, and reverse polarity protected outputs
- Robust plastic housing with IP66 rating
- Wide ambient operating temperature range from -25°C to +55°C
- Shock resistance up to 50 g and vibration resistance compliant with EN standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging lines
- Machine safety and monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤30 mA current draw
- Long LED service life of approximately 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL170-P333 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
