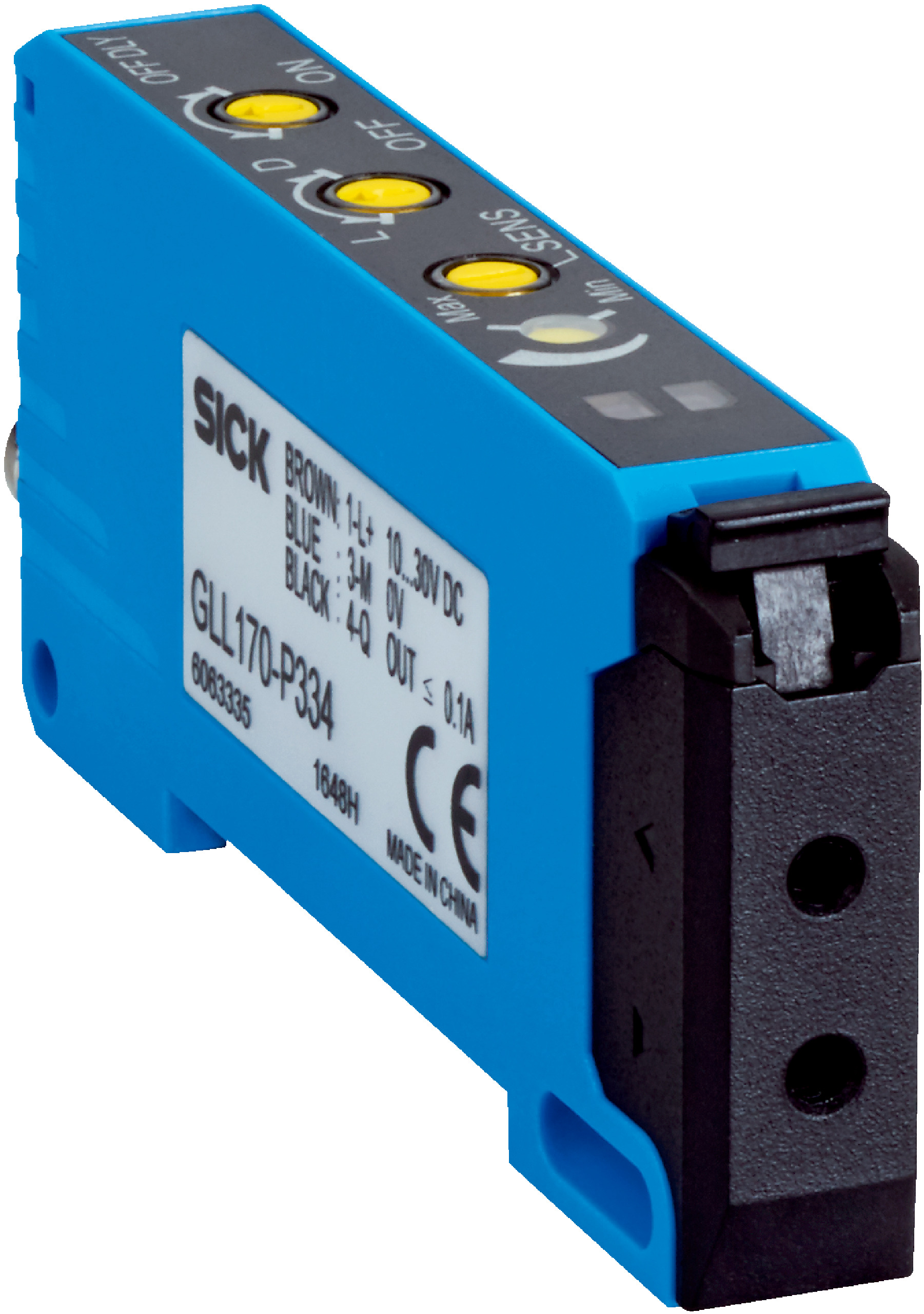

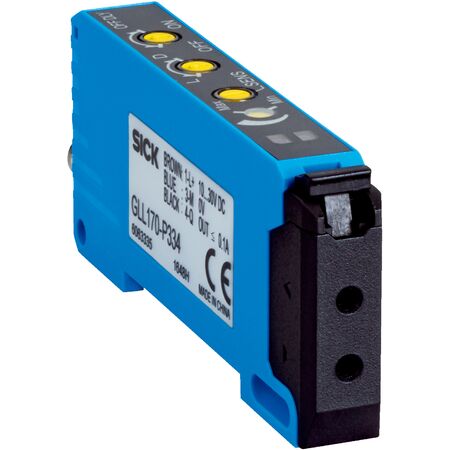

Fiber Optic Amplifier SICK GLL170-P334 | IP66 Rated | 2 kHz Switching Frequency | 632 nm LED Light | by SICK
The Fiber Optic Amplifier SICK GLL170-P334 is designed for industrial automation, featuring a robust IP66-rated housing and a high switching frequency of 2 kHz. With a visible red LED light source at 632 nm, it ensures reliable object detection and quality control in harsh environments. Ideal for manufacturing processes, this amplifier offers adjustable sensing range and is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Digital output: 1 PNP output with light/dark switching
- Output current max: ≤ 100 mA
- Switching frequency: 2 kHz
- Response time: ≤ 250 µs
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- LED wavelength: 632 nm
- Housing material: Plastic (PC/POM)
- Connection: Male M8, 4-pin connector
- Weight: 19 g
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Adjustable sensing range, switching mode, and switch-off delay via potentiometer
- LED indicators for power and output status
- High switching frequency of 2 kHz with response time ≤ 250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic housing with IP66 rating for harsh environments
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 55 Hz
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging lines
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLL170-P334 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
