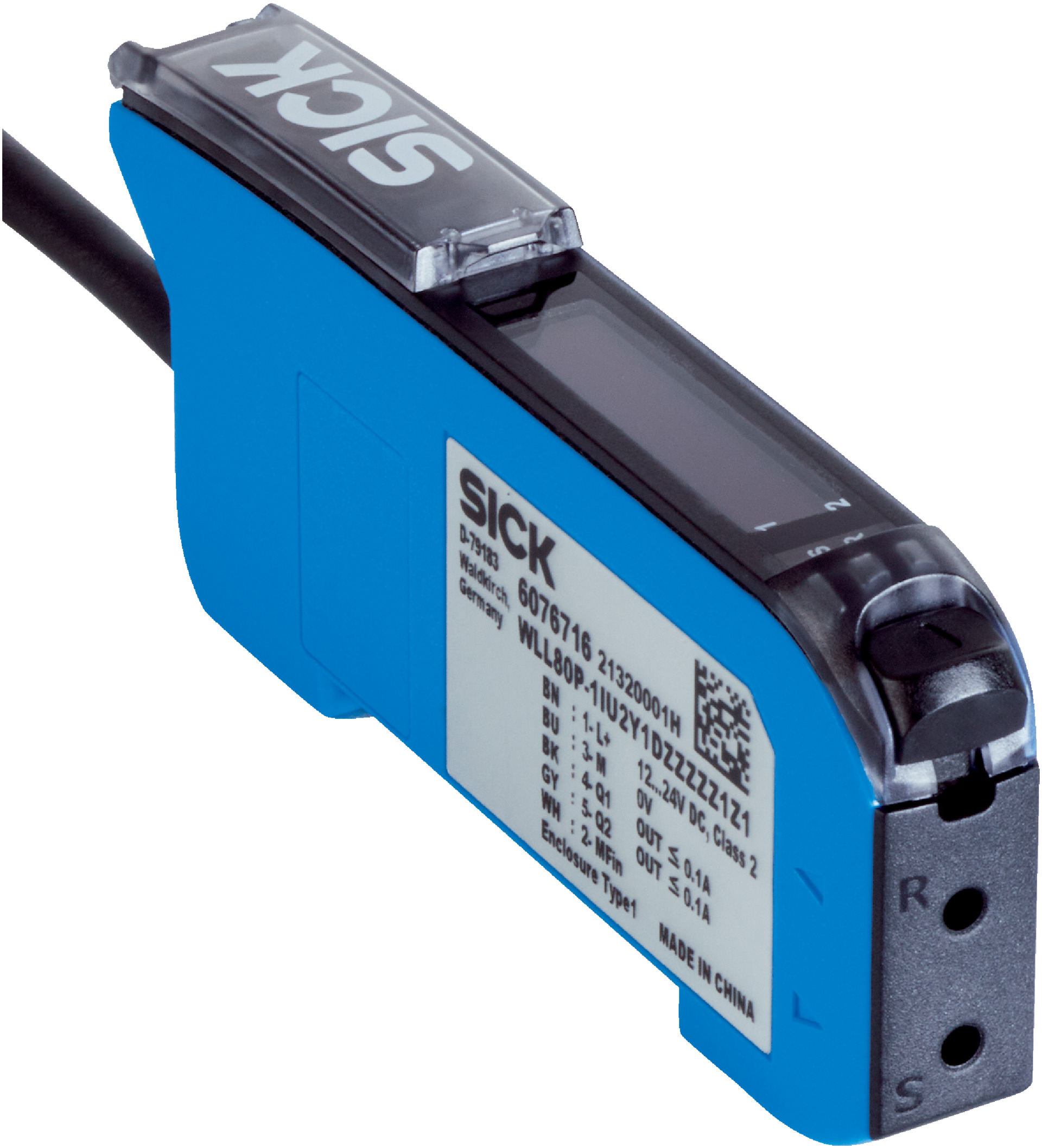

Fiber Optic Amplifier | Stand-alone Design | 660 nm Red LED | IP54 Rated | by SICK
The Fiber Optic Amplifier is a stand-alone device featuring a visible red LED light source with a 660 nm wavelength, perfect for industrial automation sensing and object detection. With an adjustable sensing range and multiple output options, it ensures reliable performance in machine safety and monitoring applications. Its robust IP54 rated enclosure provides dust and splash protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- Free LED risk group according to EN 62471 and IEC 62471
- Adjustable sensing range depending on optical fiber cable used
- LED display with multi-language menu (German, English, Chinese, Korean, Japanese)
- Multiple LED indicators for power, switching output, and analog output status
- Digital output with push-pull PNP/NPN and light/dark switching
- Analog output selectable between 4 mA ... 20 mA, 0 V ... 10 V, and 1 V ... 5 V
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Response time ≤ 16 µs and switching frequency up to 31.2 kHz
- IP54 rated enclosure for dust and splash protection
- Operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- Cable connection with 5-wire, 2 m length
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation sensing
- Object detection using fiber-optic cables
- Machine safety and monitoring
- Counting and debouncing tasks in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust IP54 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

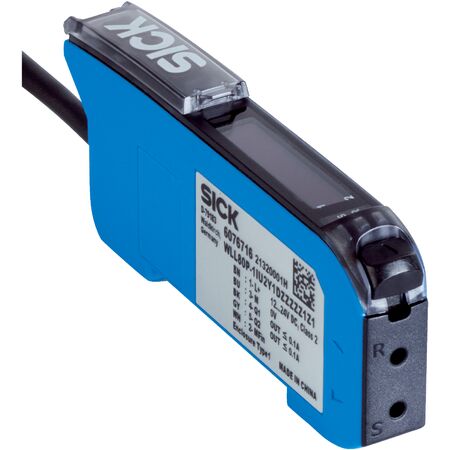

The SICK WLL80P-1IUIY1DZZZZZ1Z1 Fiber-optic Amplifier is available for immediate purchase. Ideal for industrial automation and sensing applications requiring reliable fiber-optic signal amplification.
