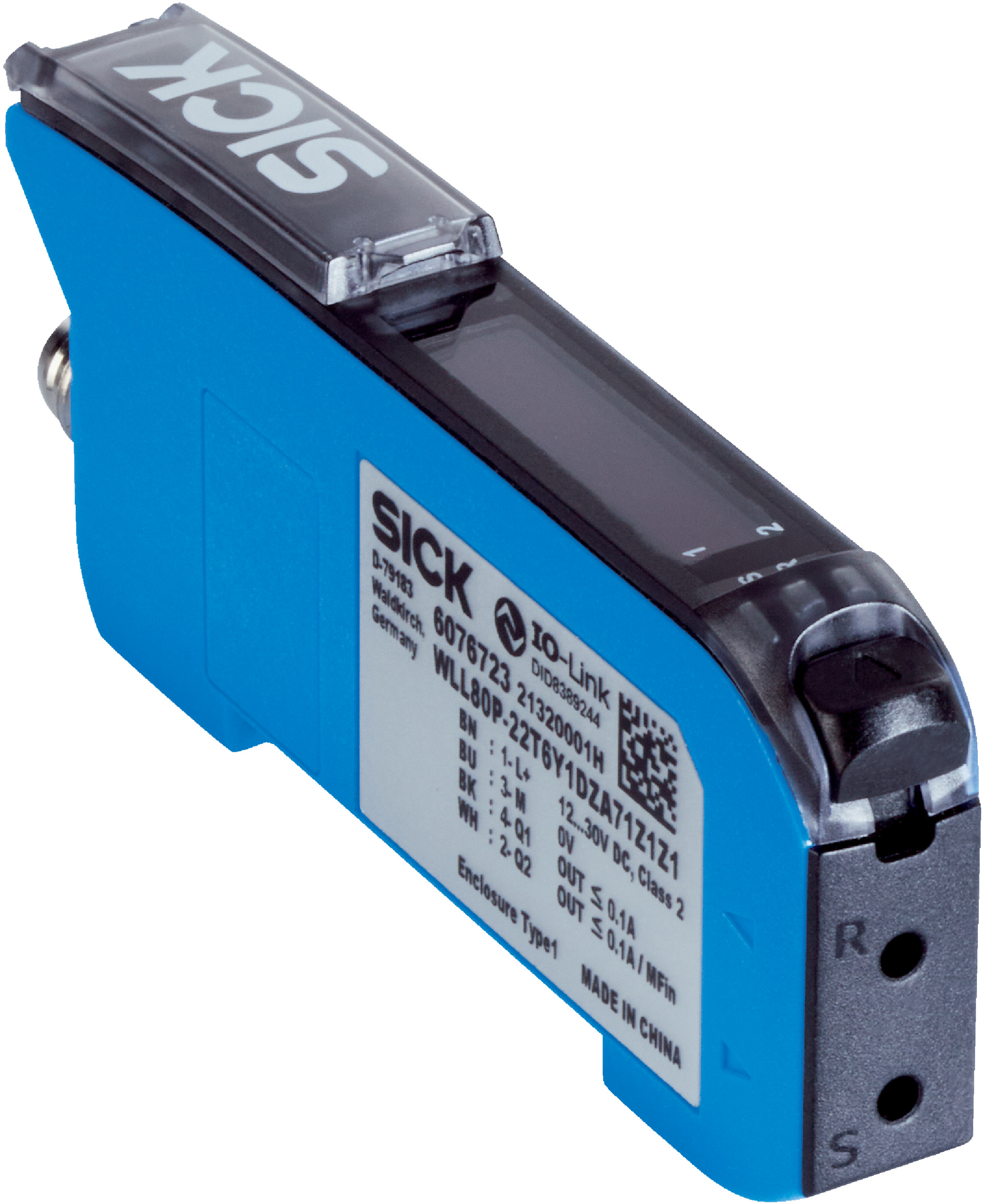

Fiber Optic Amplifier | Stand-Alone Design | IP54 Rated | 100,000 Hour LED Life | by SICK
The Fiber Optic Amplifier is designed for industrial automation, featuring a stand-alone design with a visible red LED light source and an IP54 rated enclosure for dust and splash protection. With configurable digital and analog outputs, it ensures precise object detection and monitoring in manufacturing processes, making it ideal for environments requiring fiber-optic sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 52 mA
- Digital output: 1 push-pull (PNP/NPN), max 50 mA, light/dark switching
- Analog output: 4 mA to 20 mA / 0 V to 10 V / 1 V to 5 V switchable, 12-bit resolution
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Enclosure rating: IP54 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Material: Plastic housing (PC), protective hood (PC), elastomer operating buttons, metal nickel-plated brass connector
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- Long LED service life of 100,000 hours at 25°C
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for power, switching output, and analog output status
- Multiple time functions including switch-on/off delay and impulse
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP54 rated enclosure for dust and splash protection
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
- Configurable digital and analog outputs with 12-bit resolution
- Multi-language display menu (German, English, Chinese, Korean, Japanese)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring fiber-optic sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

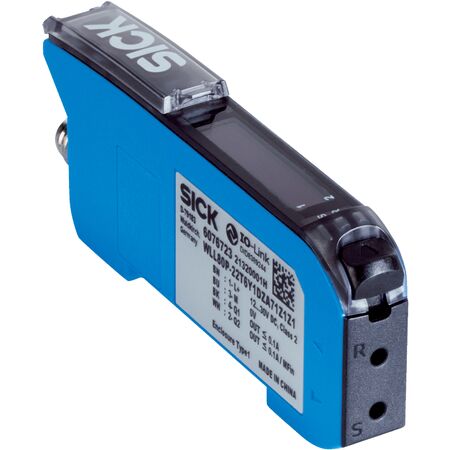

The SICK WLL80P-22THY1XZS01Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
