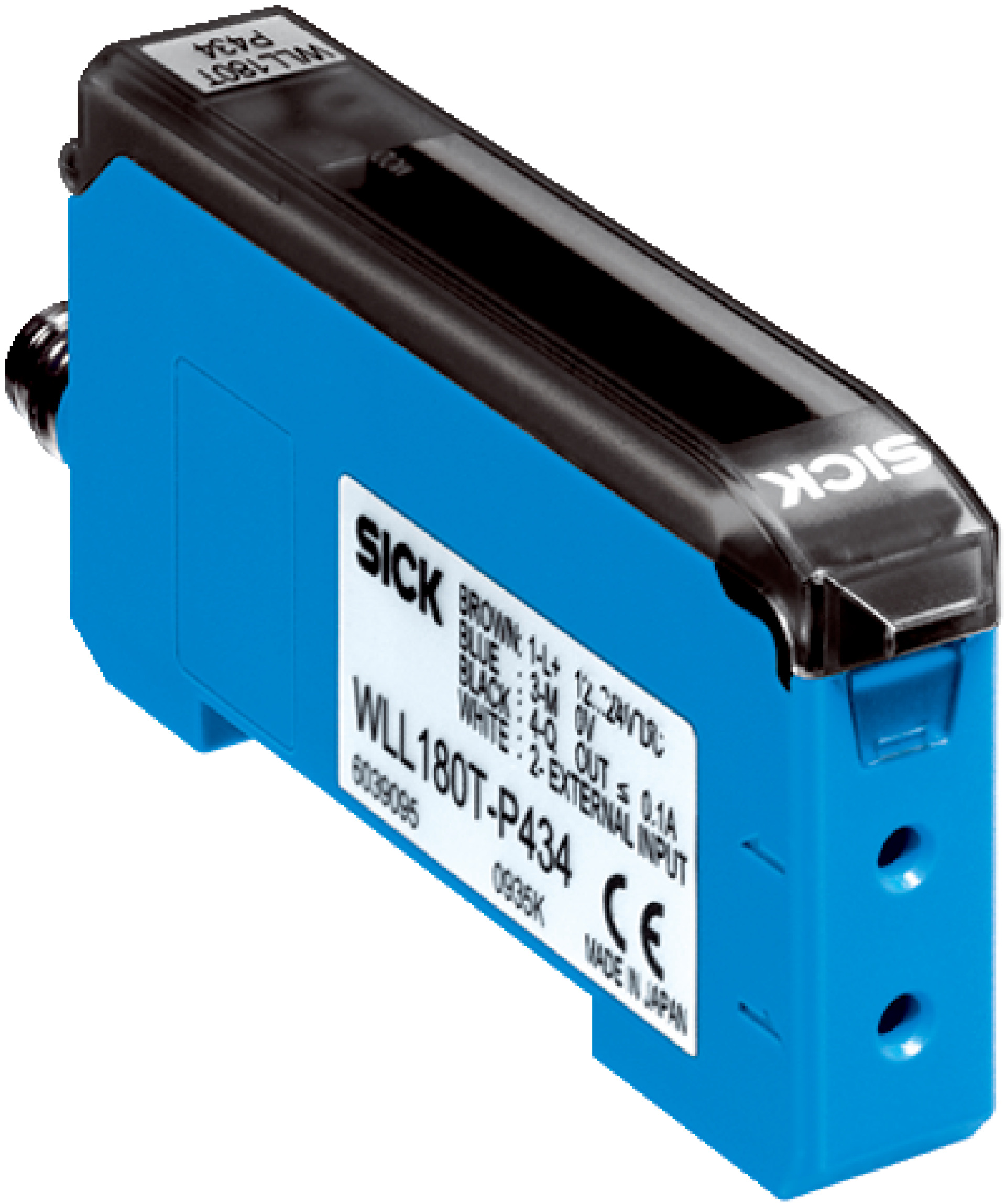

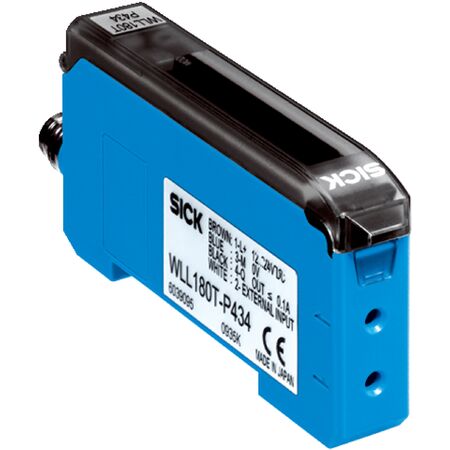

Fiber Optic Amplifier WLL180T-M434S19 | 12-24V DC Supply | 31.2kHz Switching Frequency | IP50 Rated | by SICK
The Fiber Optic Amplifier WLL180T-M434S19 is designed for industrial automation, featuring a supply voltage range of 12-24V DC and a high switching frequency of up to 31.2 kHz. With robust protection against reverse polarity and short-circuits, this amplifier ensures reliable performance in machine safety and monitoring applications. Its compact design and IP50 rating make it ideal for factory and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≤ 50 mA
- Switching frequency: up to 31.2 kHz
- Response time: ≤ 16 µs
- Digital output: 1 PNP, light/dark switching, manually selectable
- Protection: Reverse polarity, overcurrent, short-circuit protected
- Housing material: Plastic ABS/PC
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP50
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Ambient light immunity: Artificial light ≤ 3,000 lx, Sunlight ≤ 10,000 lx
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with visible red LED light source
- LED risk group marking: Free group, wavelength 650 nm
- Switching frequency with object: 90.9 Hz
- Digital output: 1 PNP, light/dark switching, manually selectable
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Programmable delay time from 0 ms to 9,999 ms
- Status LED for digital output indication
- Robust plastic ABS/PC housing with IP50 rating
- Operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WLL180T-M434S19 Fiber-optic Amplifier Base Unit is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
