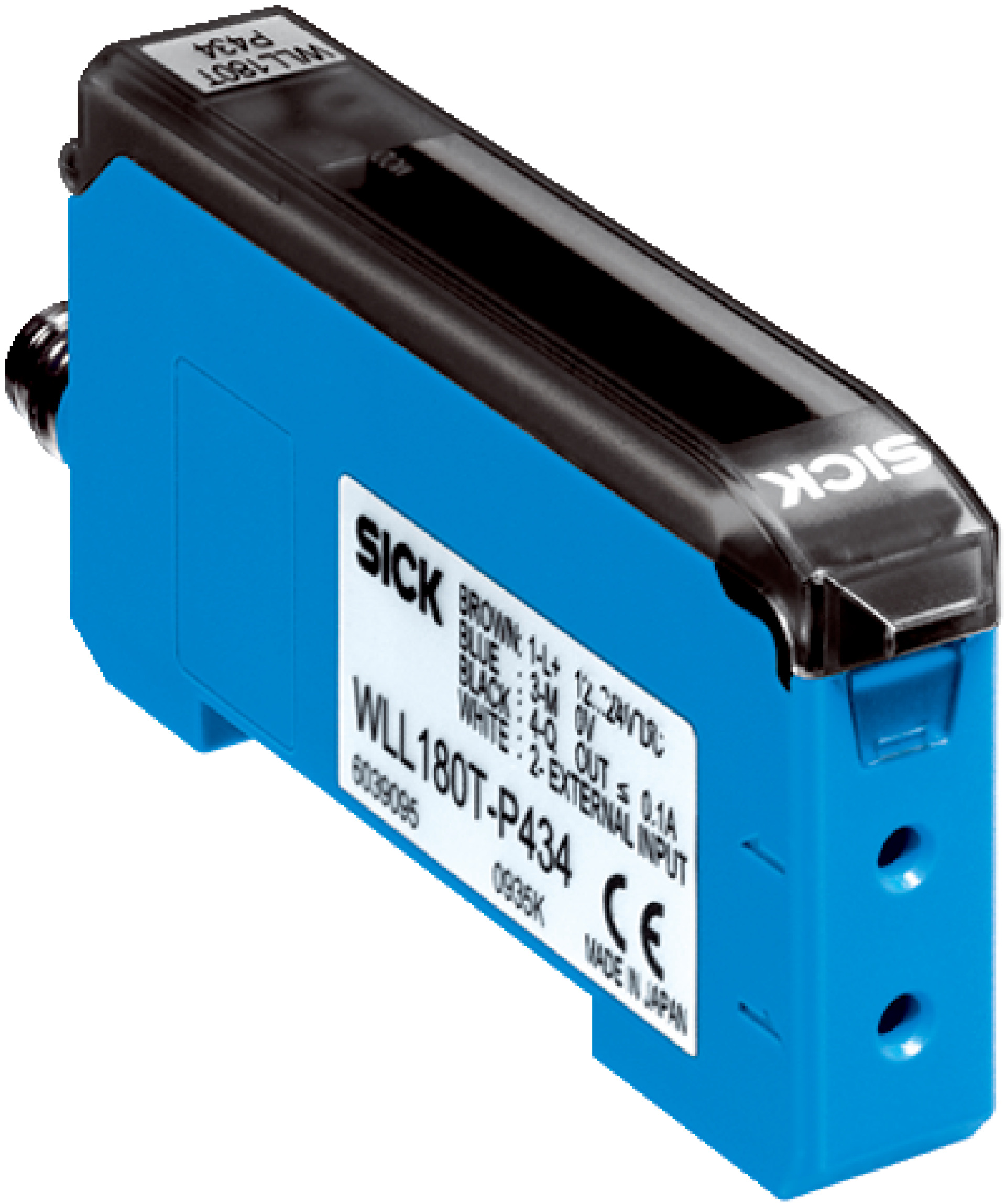

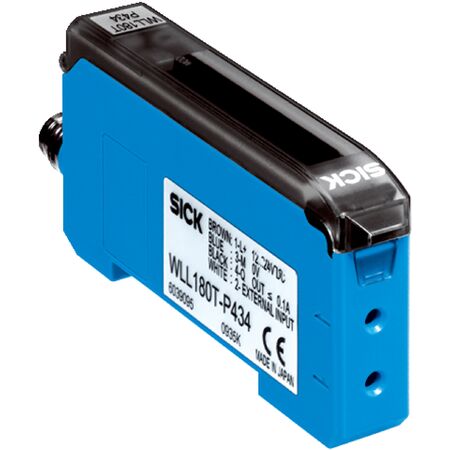

Fiber Optic Amplifier WLL180T-L432 | Visible Red LED | IP50 Rated | by SICK
The Fiber Optic Amplifier WLL180T-L432 features a visible red LED light source with a 650 nm wavelength, making it ideal for industrial automation and object detection. With an impressive average LED service life of 100,000 hours and an IP50 enclosure rating, this amplifier ensures reliable performance in demanding environments. Perfect for safety and monitoring in manufacturing processes, it includes a BEF-WLL180 mounting bracket for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit
- Visible red LED light source with 650 nm wavelength
- LED risk group marking: Free group
- Average LED service life of 100,000 hours at 25°C
- Adjustable sensing range and synchronization via wire/pin
- Digital output with NPN type and light/dark switching
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP50 enclosure rating suitable for industrial environments
- Operating temperature range from -25°C to +55°C
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use with optical fiber cables for sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
- Energy-efficient LED light source
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLL180T-L432 Fiber-optic Amplifier Base Unit is available for immediate purchase, ideal for industrial sensing and automation applications.
