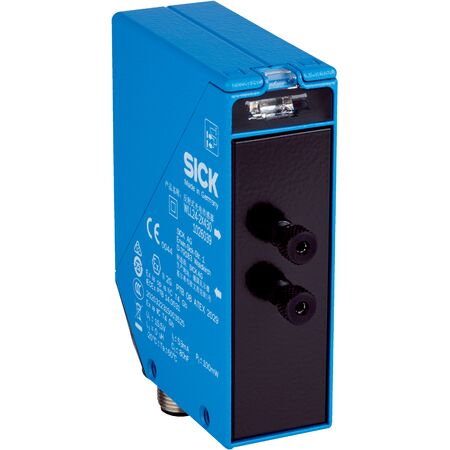

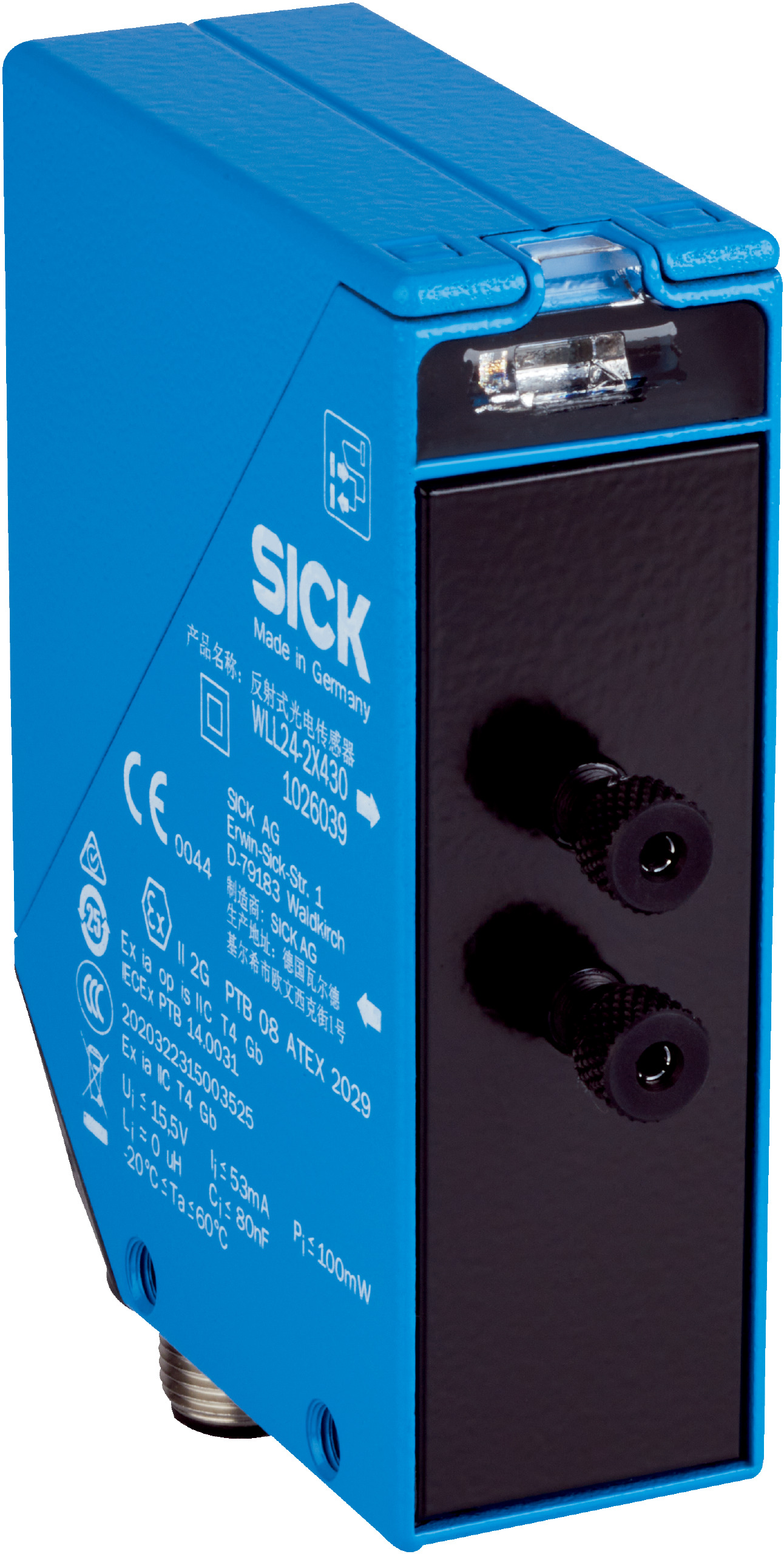

Fiber Optic Amplifier WLL24-2X230 | Stand-Alone Design | IP65 Rated | 100,000 Hour Life | by SICK
The Fiber Optic Amplifier WLL24-2X230 is designed for industrial automation, featuring a stand-alone design with a visible red LED light source at 660 nm. With an impressive average service life of 100,000 hours and robust IP65-rated housing, it’s perfect for object detection and safety monitoring in hazardous environments, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Optic Amplifier WLL24-2X230 | Stand-Alone Design | IP65 Rated | 100,000 Hour Life | by SICK
Brand: SICK
SKU: 1026038
Alternatively Known As: Fiber optic amplifier, Optical sensor amplifier, SICK WLL24 amplifier
Technical Specifications
- Device type: Fiber-optic amplifier, stand-alone
- Sensing range: Depends on optical fiber cable used
- Light source: LED, visible red light at 660 nm wavelength
- LED risk group: Free group according to EN 62471 and IEC 62471
- Average service life: 100,000 hours at 25°C
- Supply voltage: 5 V DC to 15.5 V DC
- Current consumption: ≥ 2.2 mA
- Digital output: 1 NAMUR type, light switching mode
- Response time: ≤ 10 ms
- Switching frequency: 50 Hz
- Housing: Metal, zinc diecast
- Connection: Terminal connection with M16 gland
- Enclosure rating: IP65
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 87.5mm x 74.7mm x 27mm
- Weight: 0.33 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- LED risk group marking: Free group
- Long average service life of 100,000 hours at 25°C
- Digital output type NAMUR with light switching mode
- Protection against reverse polarity, overcurrent, and short-circuit
- Robust metal zinc diecast housing with IP65 rating
- ATEX II 2G Ex ia op is IIC T4 Gb certified for explosive atmospheres
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compliant with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in hazardous areas with ATEX certification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL24-2X230 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety applications in hazardous environments.
