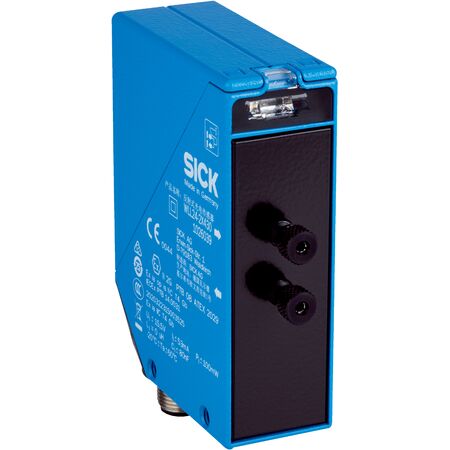

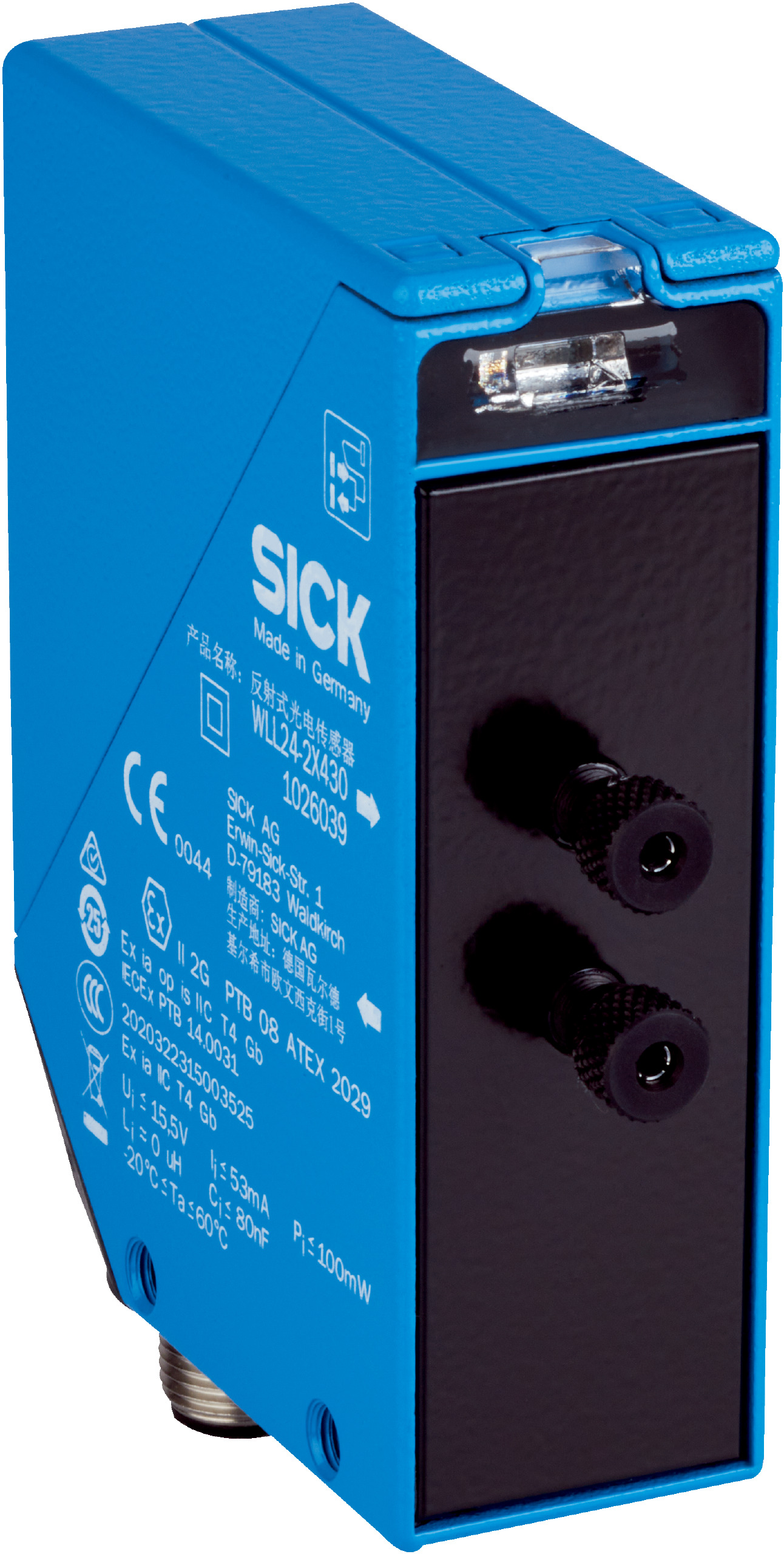

Fiber Optic Amplifier WLL24-2X430 | IP65 Rated | 660 nm LED Light | Fast Response Time | by SICK
The WLL24-2X430 Fiber Optic Amplifier is designed for industrial automation, featuring a robust IP65-rated enclosure and a visible 660 nm LED light source. With a fast response time of ≤ 10 ms and compliance with ATEX standards, it's perfect for object detection and safety monitoring in hazardous areas. Built for reliability, this amplifier ensures long service life and energy efficiency, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Optic Amplifier WLL24-2X430 | IP65 Rated | 660 nm LED Light | Fast Response Time | by SICK
Brand: SICK
SKU: 1026039
Alternatively Known As: Fiber optic amplifier, Optical sensor amplifier, WLL24 series amplifier
Technical Specifications
- Supply voltage: 5 V DC to 15.5 V DC
- Current consumption: ≥ 2.2 mA
- Protection class: II
- Digital output: 1 NAMUR output, light switching mode
- Signal voltage PNP HIGH/LOW: Approx. UB-4 V / 2 V
- Signal voltage NPN HIGH/LOW: Approx. UB-4 V / 2 V
- Response time: ≤ 10 ms
- Switching frequency: 50 Hz
- LED wavelength: 660 nm
- MTTFD: 257 years
- Mission time: 20 years
- Enclosure rating: IP65
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 87.5mm x 74.7mm x 27mm
- Weight: 0.33 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 660 nm wavelength
- Long LED service life of 100,000 hours at 25°C
- High protection rating of IP65
- Robust metal zinc diecast housing
- Fast response time of ≤ 10 ms
- NAMUR digital output with light switching mode
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Wide ambient operating temperature range from -20°C to +60°C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Certified for ATEX II 2G Ex ia op is IIC T4 Gb hazardous areas
Professional Installation Requirements
- Professional installation by qualified personnel is required, especially for compliance with ATEX hazardous area standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in hazardous areas with ATEX certification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL24-2X430 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
