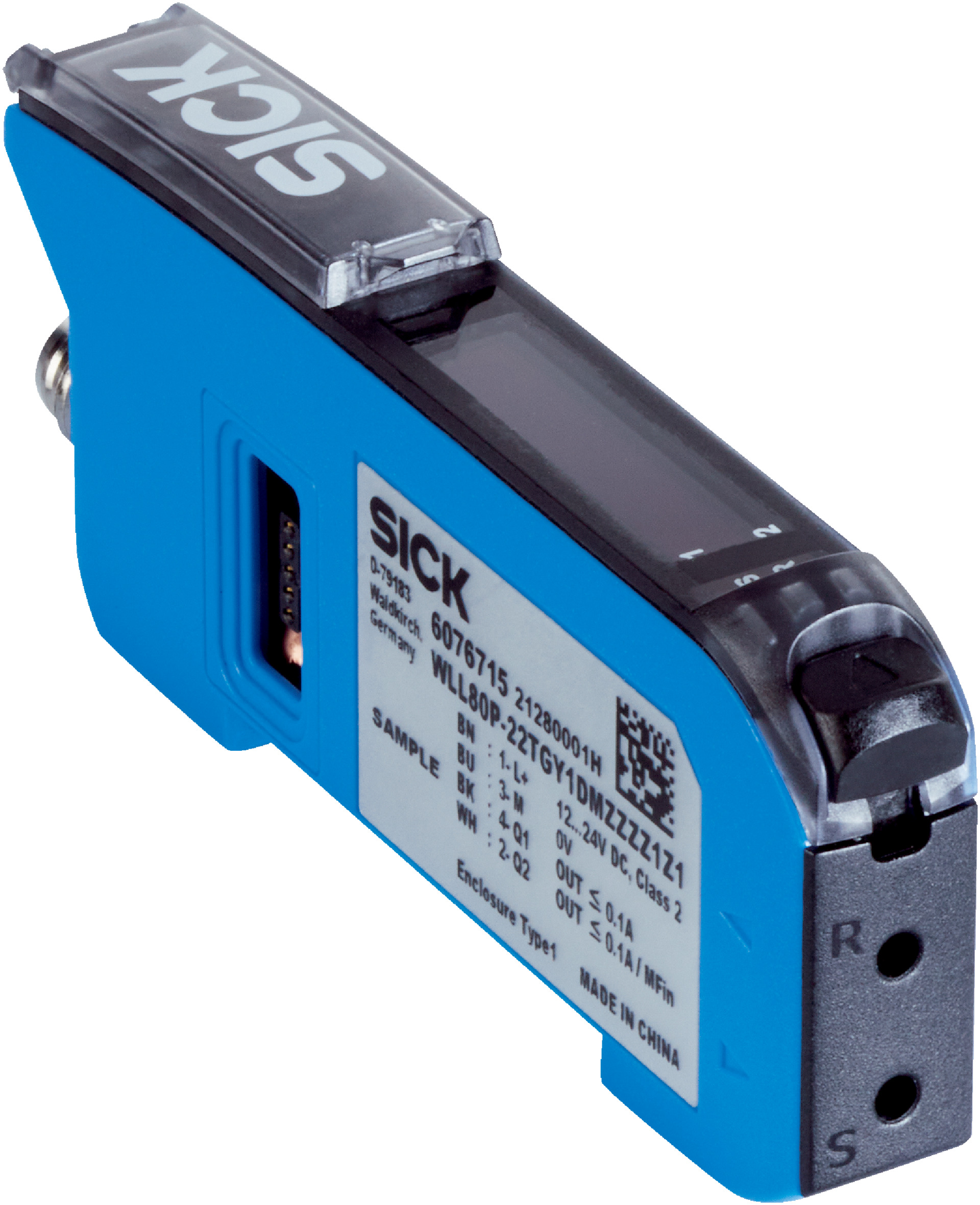

Fiber Optic Amplifier WLL80I | Adjustable Sensing Range | Infrared LED | IP54 Rated | by SICK
The Fiber Optic Amplifier WLL80I is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber used. With a fast response time of ≤16 µs and an infrared LED light source with a lifespan of 100,000 hours, it ensures reliable object detection and machine safety. Ideal for factory and process automation, this robust amplifier is built to withstand dust and water splashes, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with wavelength of 1450 nm and average service life of 100,000 hours
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching
- Fast response time of ≤16 µs and switching frequency up to 31.2 kHz
- IP54 rated housing for protection against dust and water splashes
- Display with multilingual menu (German, English, Chinese, Korean, Japanese) and LED indicators for power and output status
- Robust plastic housing with elastomer operating buttons and metal nickel-plated brass M8 4-pin male connector
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Low power consumption (≤50 mA) contributes to energy efficiency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

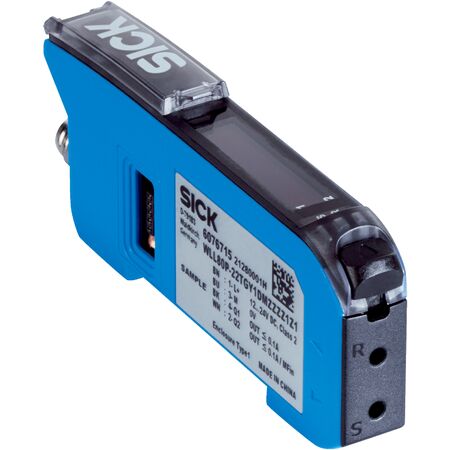

The SICK WLL80I-22TGY4DMZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
