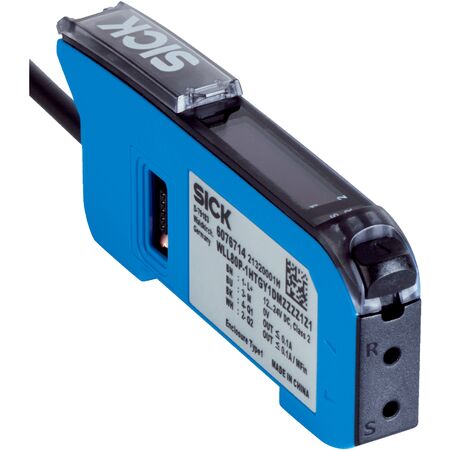

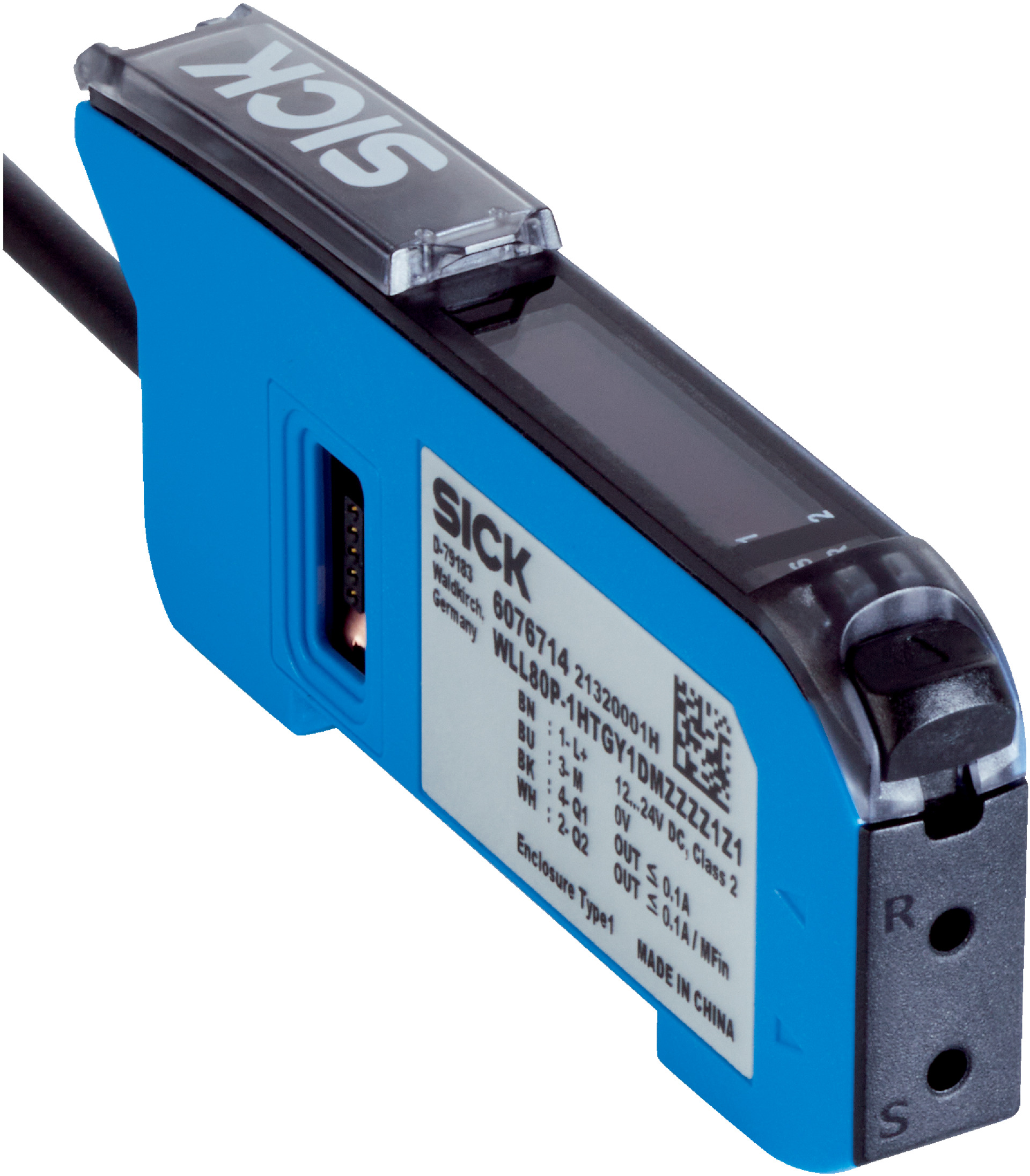

Fiber Optic Amplifier WLL80P | 660 nm LED | IP54 Rated | Fast Response Time | by SICK
The Fiber Optic Amplifier WLL80P is designed for industrial automation, featuring a visible red LED light source at 660 nm and an IP54 rated housing for protection against dust and water splashes. With a fast response time of ≤16 µs and high switching frequency up to 31.2 kHz, it's perfect for machine safety and monitoring applications, ensuring reliable object detection in factory and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC ±10%
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP54 (EN 60529)
- LED wavelength: 660 nm
- LED risk group: Free group (EN 62471:2008-09 / IEC 62471:2006)
- Cable: 5-wire, 2 m length, Ø 4 mm
- Housing material: Plastic (PC)
- Operating buttons: Elastomer, Rubber
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Visible red LED light source with wavelength of 660 nm
- Long LED service life of approximately 100,000 hours at 25°C
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- Fast response time of ≤16 µs and high switching frequency up to 31.2 kHz
- IP54 rated housing for protection against dust and water splashes
- Display with multi-language menu (German, English, Chinese, Korean, Japanese)
- Multiple time functions including switch-on/off delay and impulse
- Robust plastic housing with protective hood and elastomer operating buttons
- Cable connection with 5 wires, 2 meters length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLL80P-1IU2Y1DMZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
