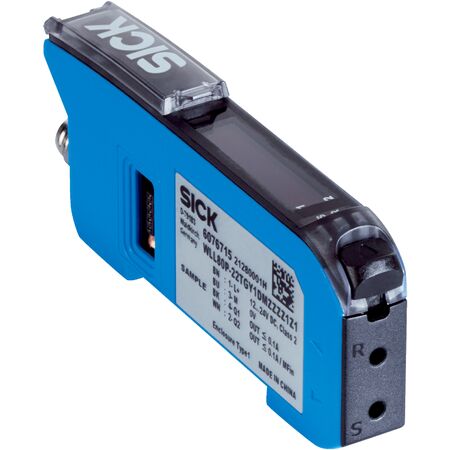

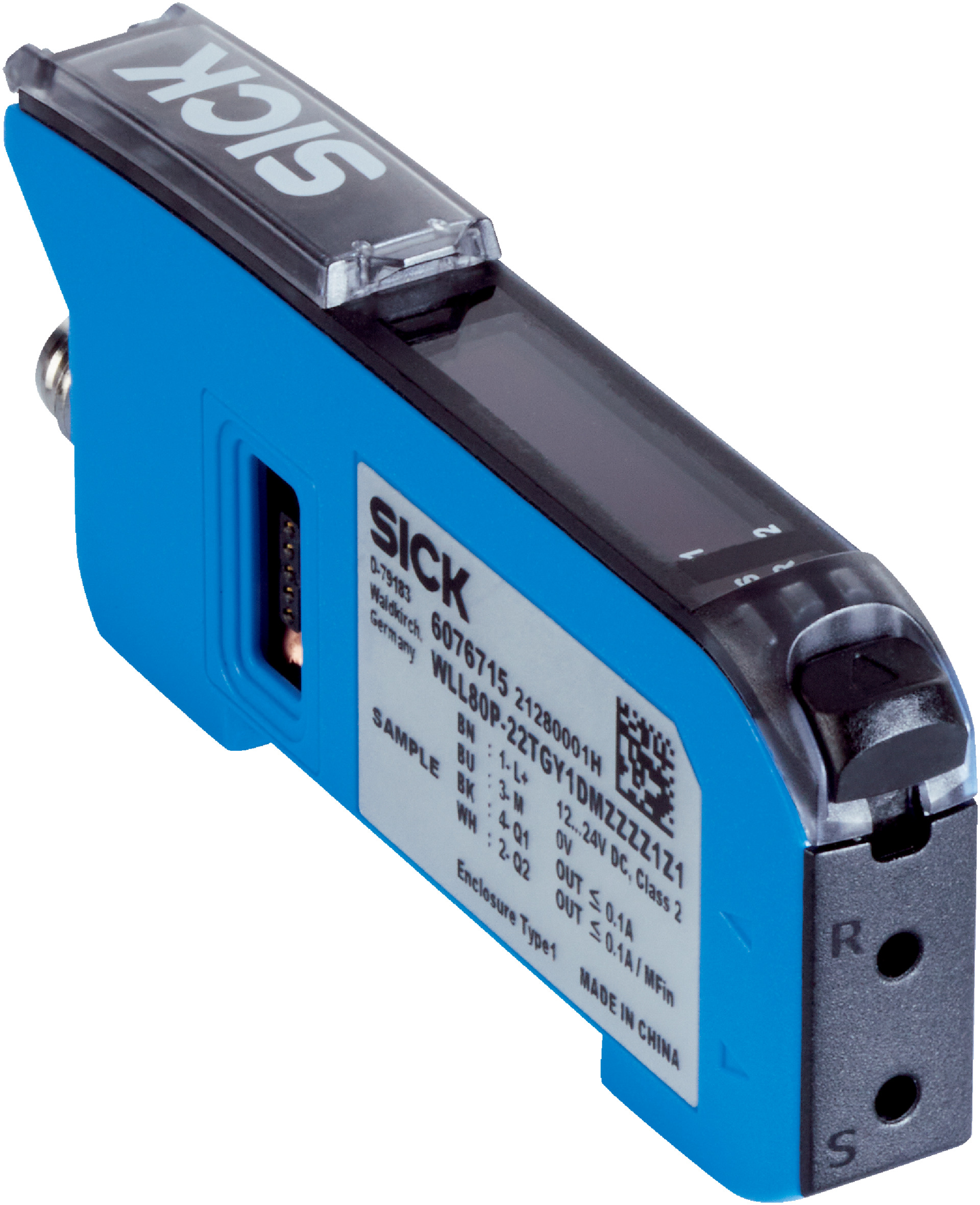

Fiber Optic Amplifier WLL80P | Adjustable Sensing Range | IP54 Rated | by SICK
The WLL80P Fiber Optic Amplifier is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber used. With a visible red LED light source and a fast response time of ≤ 16 µs, it ensures precise object detection in various environments. Ideal for factory and process automation, this robust amplifier is built to withstand industrial conditions while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Visible red LED light source with wavelength 660 nm and average service life of 100,000 hours at 25°C
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching mode
- Fast response time ≤ 16 µs and switching frequency up to 31.2 kHz
- IP54 rated enclosure suitable for industrial environments
- Operating temperature range from -25°C to +55°C
- Display with multi-language menu (German, English, Chinese, Korean, Japanese) and LED indicators for power and output status
- Robust plastic housing with protective hood and elastomer operating buttons
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Factory and process automation requiring fiber-optic sensing
- Environments needing precise presence detection with visible red light
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Low power consumption (≤ 50 mA) contributes to energy efficiency
- Durable design minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLL80P-22TGY1DMZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable fiber-optic detection.
