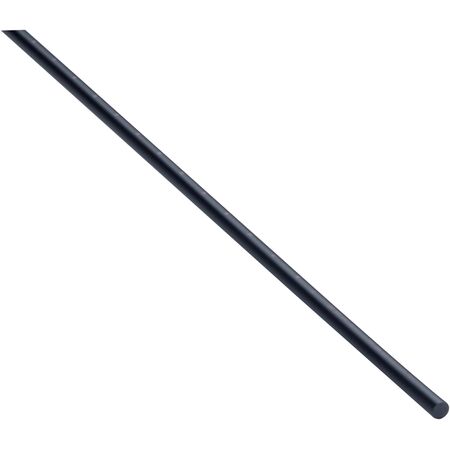

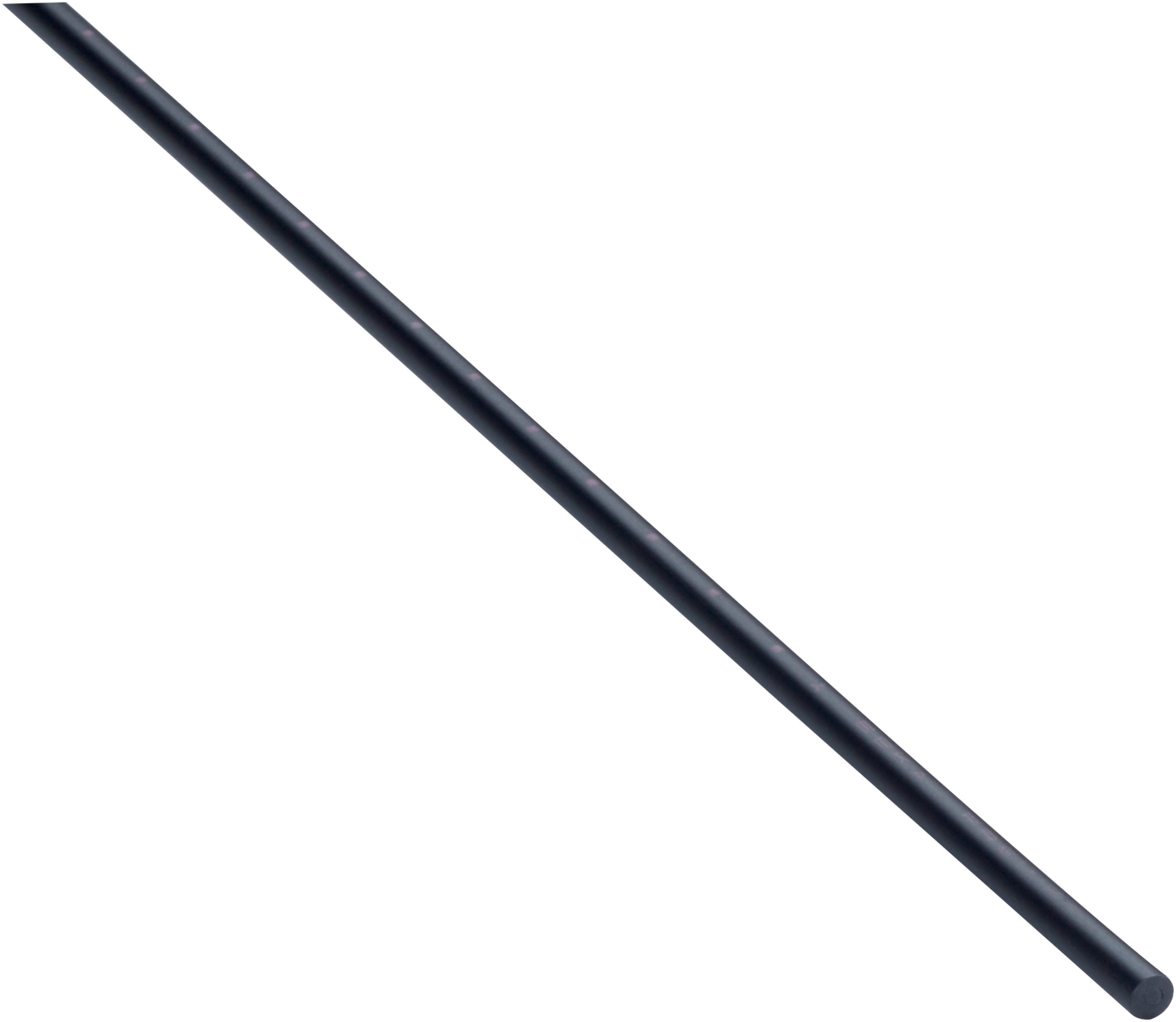

Fiber Optic Cable 100m | Through-Beam System | 60° Dispersion Angle | Axial Light Emission | by SICK
The Fiber Optic Cable 100m is designed for versatile industrial sensing applications, featuring a through-beam system and a 60° angle of dispersion. With a customizable length and durable polyethylene sheath, this cable is perfect for automation tasks that require precision and reliability. Ideal for use with WLL80, WLL180, and GLL170(T) fiber-optic amplifiers, it ensures optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Without
- Sensing range: Depending on fiber optic amplifier used
- Angle of dispersion: 60°
- Light emission: Axial
- Fiber length: 100,000 mm (100 m)
- Bending radius: 2 mm
- Outside diameter of cable connection: 1.3 mm
- Fiber arrangement: Single fiber
- Core structure diameter: 1 mm
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: 100 m fiber-optic cables, FC fiber cutter (5304141)
- Ambient operating temperature: –55 °C to +60 °C
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 0.1 kg
Key Features
- 100 m optical fiber cable without fiber optic head for cutting to any length
- Through-beam system functional principle
- Angle of dispersion 60°
- Axial light emission
- Single fiber arrangement with 1 mm core diameter
- Polyethylene (PE) sheath with polymethylmethacrylate (PMMA) fibers
- Bending radius of 2 mm
- Adapter end sleeves required for installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and electrical safety standards.
Applications
- Standard fiber-optic sensing applications
- Compatible with WLL80, WLL180, GLL170(T) fiber-optic amplifiers
- Industrial automation and sensing requiring customizable fiber length
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and energy consumption in industrial processes
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-SH13 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring customizable fiber length.
