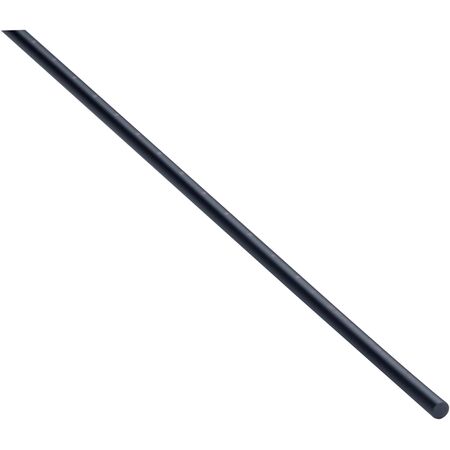

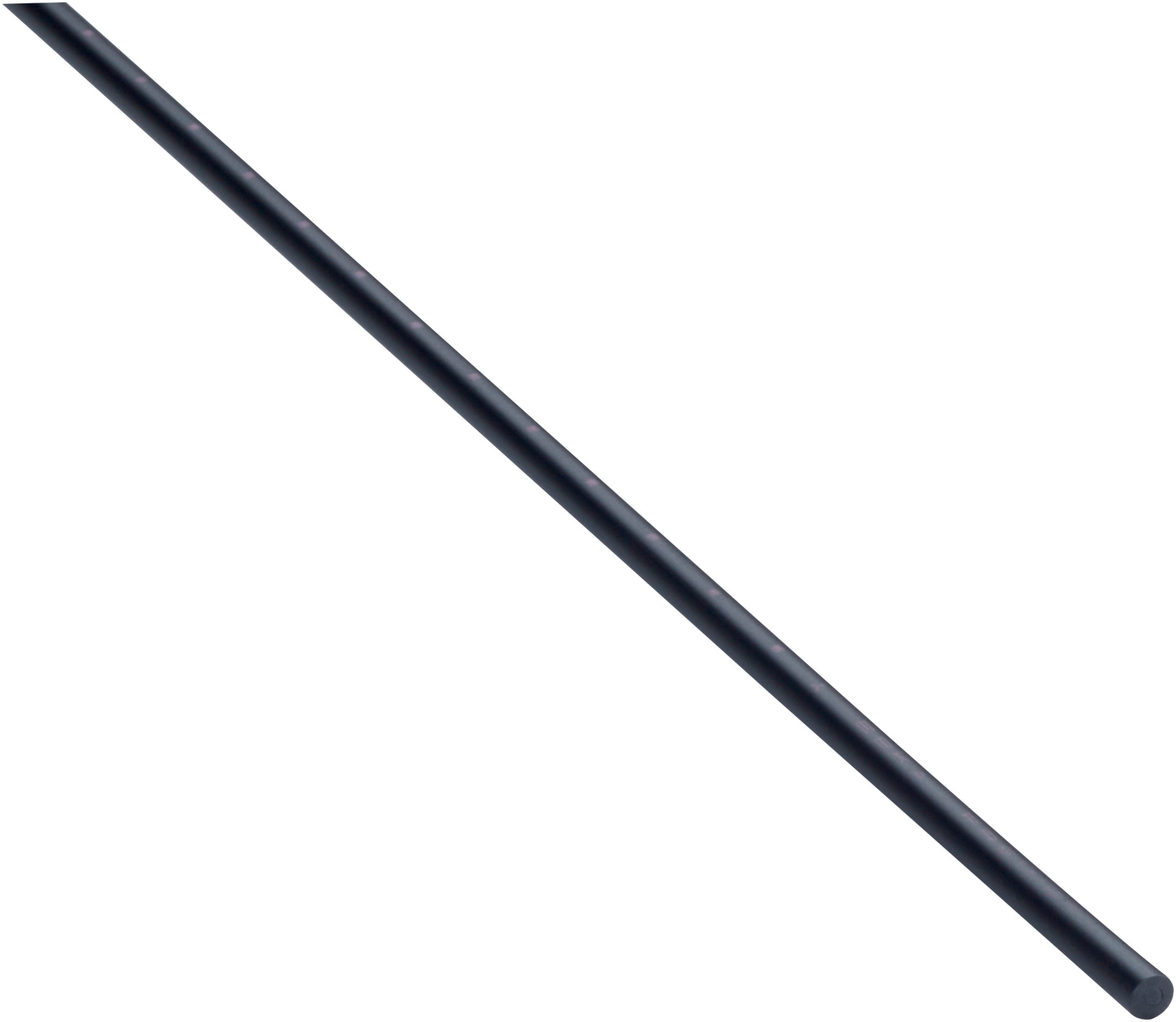

Fiber Optic Cable 100m | Through-Beam System | Single Fiber Arrangement | Axial Light Emission | by SICK
The Fiber Optic Cable 100m is designed for standard sensing applications, featuring a through-beam system and a single fiber arrangement with a 1 mm core diameter. Ideal for industrial automation, this cable can be cut to any length and is compatible with various fiber-optic amplifiers, ensuring flexibility and efficiency in your setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Without
- Application: Standard
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Fiber length: 100,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1 mm Single fiber
- Material sheath: Polyethylene (PE)
- Fibers: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –55 °C to +75 °C
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 0.1 kg
Key Features
- 100 m optical fiber cable without fiber optic head for cutting to any length
- Through-beam system functional principle
- Single fiber arrangement with 1 mm core diameter
- Axial light emission
- Bending radius of 25 mm
- No integrated lens or compatibility tip adapters required
- Can be shortened without adapter end sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems to ensure proper handling and connection.
Applications
- Standard fiber-optic sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyethylene sheath ensures long service life reducing waste
- Supports energy-efficient sensing systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-GH4001 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
