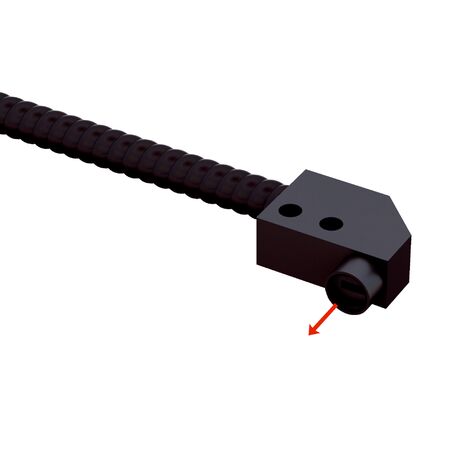

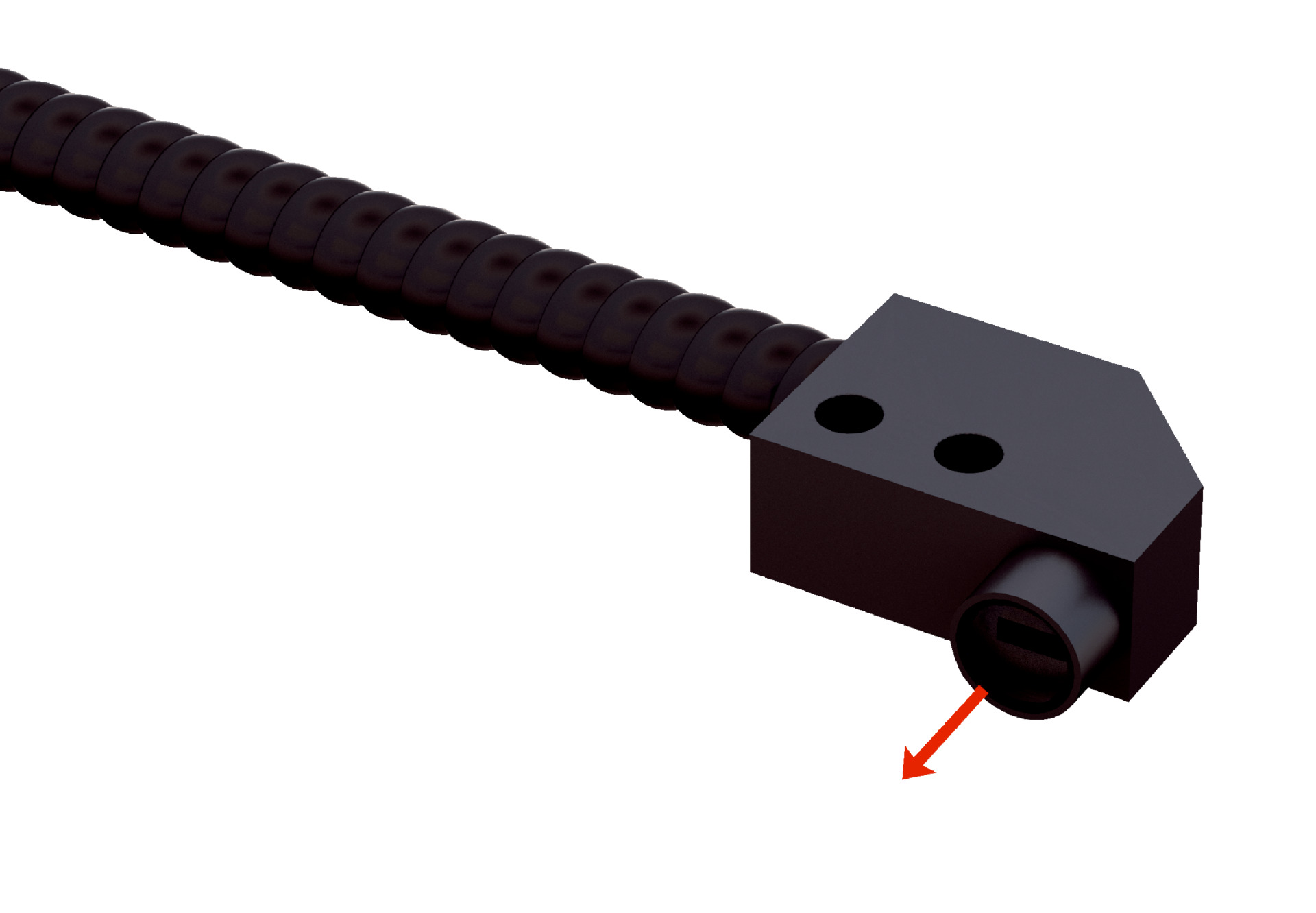

Fiber Optic Cable 90 Degree Deflection | Flat Type Design | Integrated Lens | by SICK
The LL3-LM38751 fiber optic cable features a flat type design with a 90° deflection, making it ideal for standard sensing applications in industrial automation. With a sensing range dependent on compatible amplifiers and a minimal object diameter of just 0.5 mm, this cable ensures precise object detection. Built with durable materials, it operates efficiently in temperatures ranging from –10 °C to +60 °C, enhancing process efficiency and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 53.13°
- Integrated lens: Yes
- Compatibility with infrared light: Yes
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 750 mm
- Bending radius: 20 mm
- Outside diameter: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchloride (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 10mm x 750mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection
- Integrated lens with 53.13° angle of dispersion
- Radial light emission from chrome-plated metal coil optical fiber head
- Multi-fiber core structure with 750 mm fiber length and 2.2 mm outside diameter
- Compatible with infrared light without need for adapter end sleeves
- Sheath made of polyvinylchloride (PVC) and glass fibers
- Operating temperature range from –10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.5 mm
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise sensing to reduce waste and improve process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK LL3-LM38751 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise object detection.
