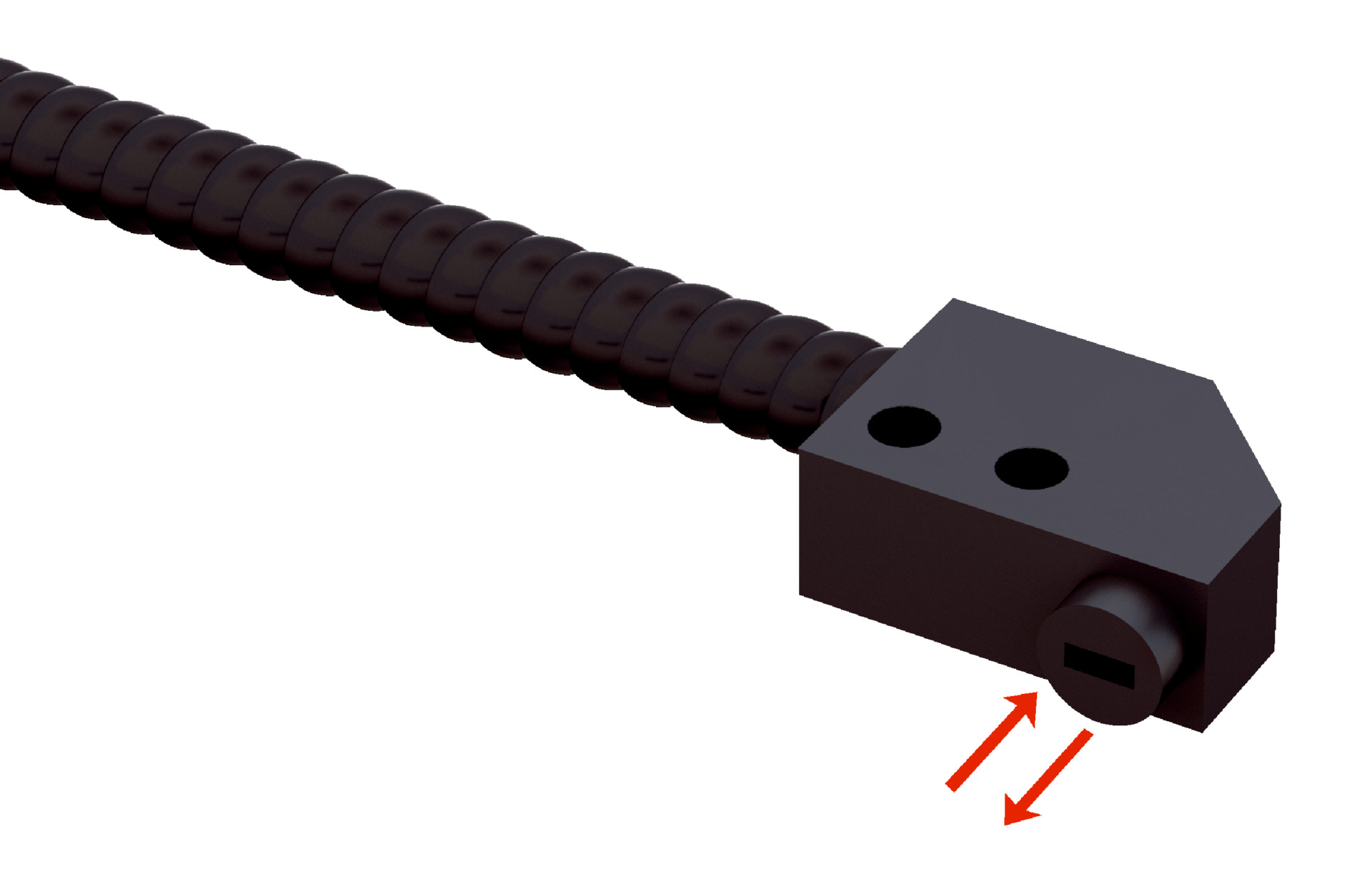

Fiber Optic Cable 90° Deflection | Proximity System | 0.5 mm Detection | by SICK
The Fiber Optic Cable 90° Deflection is designed for precision in proximity sensing applications. With a minimal object diameter detection of just 0.5 mm and a 60° angle of dispersion, this cable ensures reliable performance in various industrial settings. Its compatibility with infrared light and flat type head design make it an ideal choice for integration with fiber-optic amplifiers like WLL80 and WLL180.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 1000 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 40 mm, 70 µs - 130 mm, 250 µs - 160 mm, 2 ms - 180 mm, 8 ms - 190 mm
- Sensing range with GLL170 operating mode 250 µs: 95 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 195 mm, 250 µs - 329 mm
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Proximity system functional principle
- Minimal object diameter detection of 0.5 mm
- Angle of dispersion 60°
- Radial light emission
- Compatibility with infrared light
- No integrated lens or tip adapters required
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper integration and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

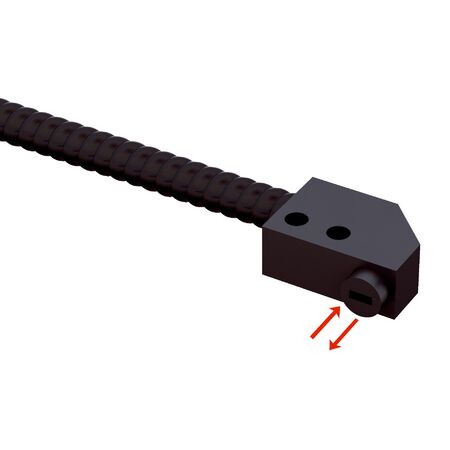

The SICK LL3-LM361000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise detection.
