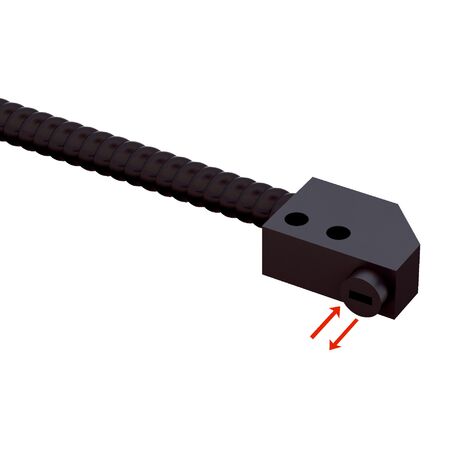

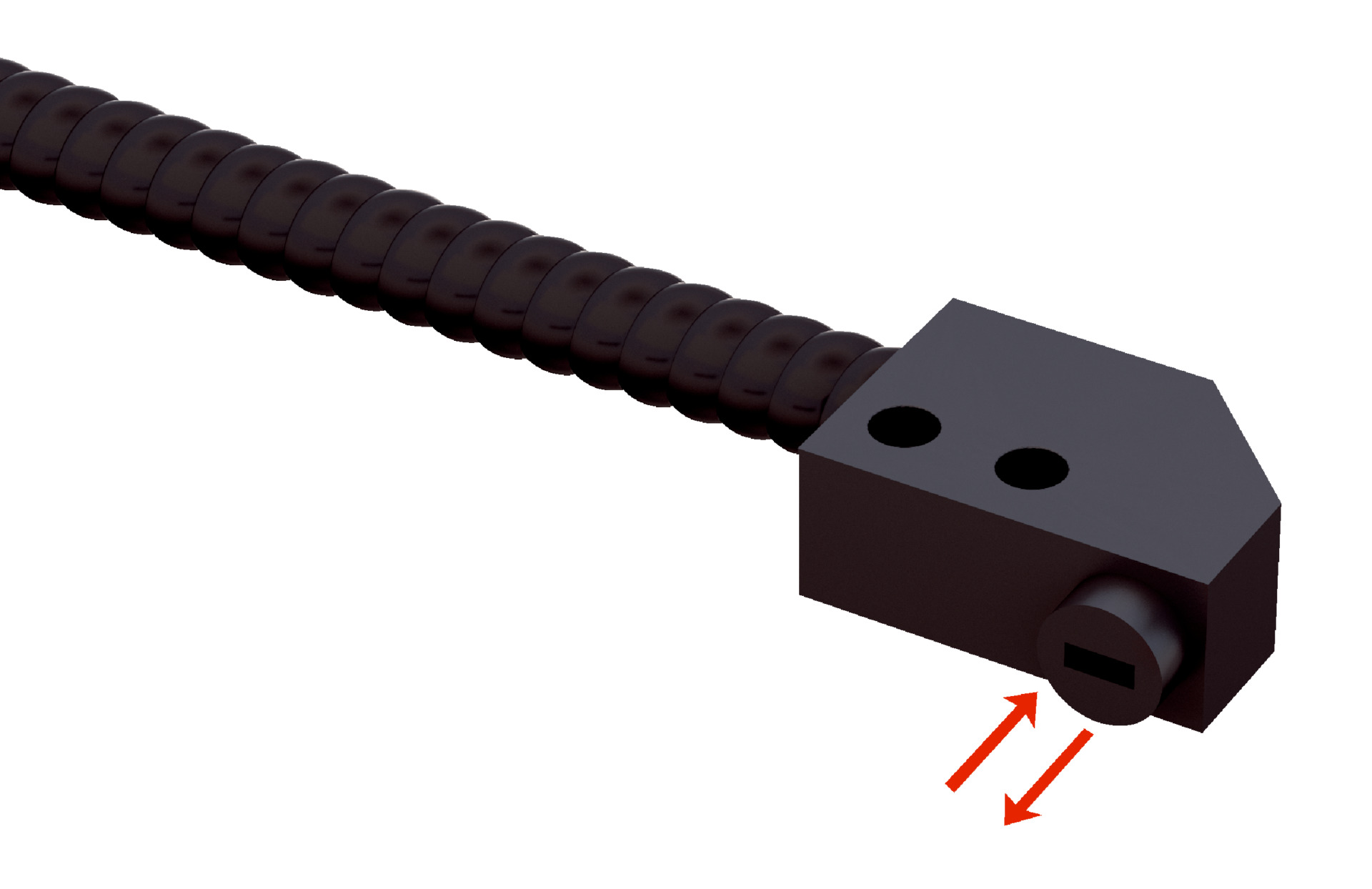

Fiber Optic Cable 90° Deflection | Proximity System | Multi-Fiber Core | by SICK
The LL3-LM36450 fiber optic cable features a flat type, 90° deflection head design, making it ideal for standard proximity sensing applications. With a multi-fiber core structure and radial light emission, this cable ensures reliable performance in various environments. Operating within a temperature range of -10 °C to +60 °C, it is compatible with fiber-optic amplifiers like WLL80 and WLL180, providing versatility for industrial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Radial
- Optical fiber head material: Chrome-plated metal coil
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T: 50 mm to 261 mm depending on operating mode
- Sensing ranges with GLL170: 70 mm
- Sensing ranges with GLL170T: 171 mm to 325 mm depending on operating mode
- Dimensions (H x L x W): 10mm x 450mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head design
- Proximity system functional principle
- Multi-fiber core structure with glass fibers
- Radial light emission from chrome-plated metal coil optical fiber head
- Angle of dispersion 60°
- Compatible with infrared light
- No integrated lens or tip adapters required
- Fiber length 450 mm with 2.2 mm outside diameter
- Bending radius 20 mm
- Operating temperature range from –10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and alignment with compatible amplifiers.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device lifespan
- Energy-efficient optical sensing technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM36450 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise and reliable fiber-optic detection.
