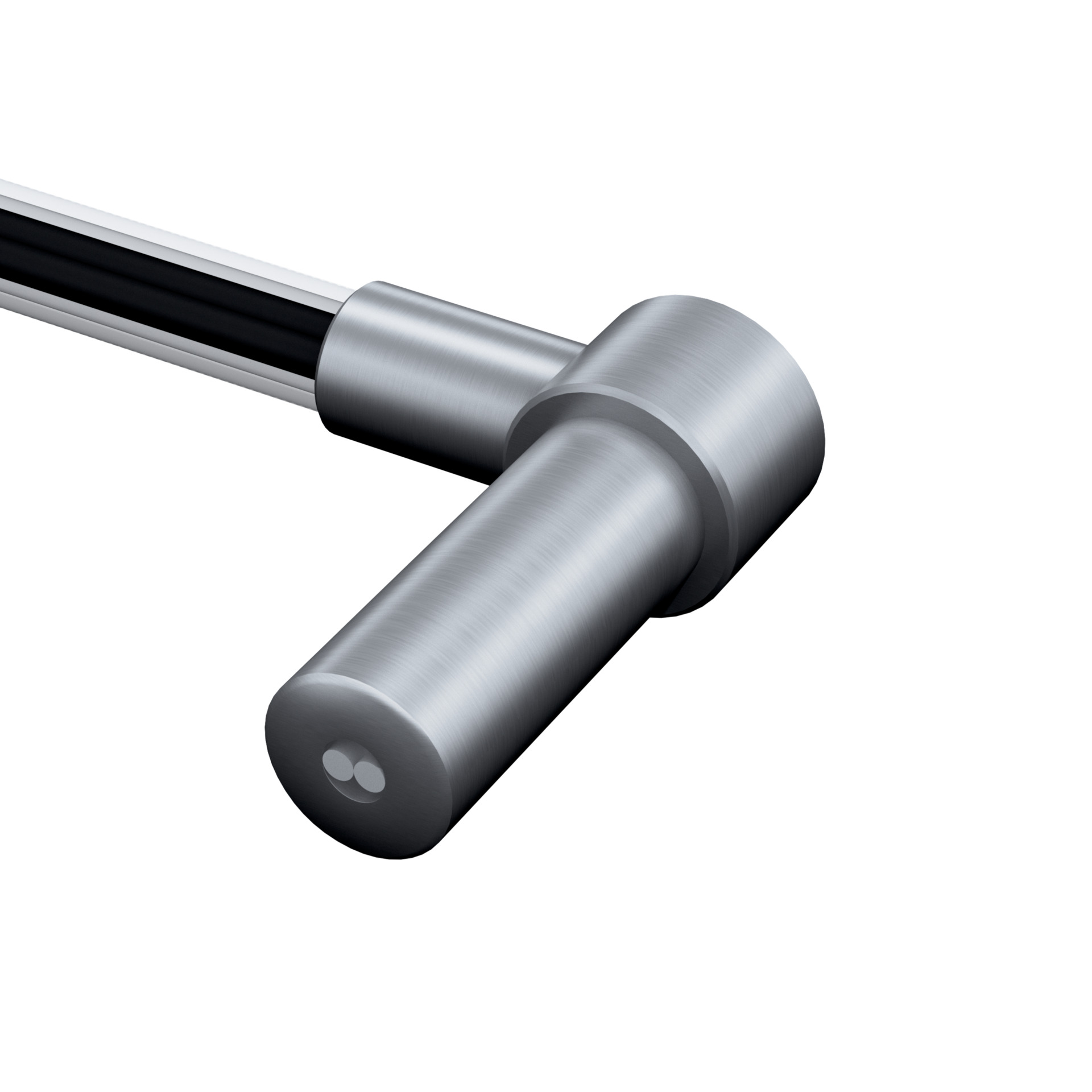

Fiber Optic Cable 90° Deflection | Proximity System | Stainless Steel Head | by SICK
The Fiber Optic Cable 90° Deflection is designed for precision in proximity sensing applications. With a smooth sleeve and stainless steel head, it ensures easy cleaning and durability in industrial automation environments. This cable features a minimal object diameter detection of just 0.02 mm and a radial light emission with a 60° angle of dispersion, making it ideal for various sensing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, 90° deflection
- Sensing range: Depending on fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 6 mm
- Fiber length: 4000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.0 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -55 °C to +70 °C
- Dimensions (H x L x W): 6mm x 4000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and 90° deflection fiber-optic head
- Proximity system functional principle
- Equipped with PE hose and stainless steel head for easy cleaning
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.02 mm
- Radial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened with adapter end sleeves
- Includes adapter sleeve BF-WLL160-13 (1.3 mm) and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and functionality.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Industrial automation and robotics sensing
- Environments requiring easy cleaning with stainless steel heads
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel head and PE hose reduce replacement frequency and waste
- Supports precise sensing to optimize industrial processes and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DV114000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
