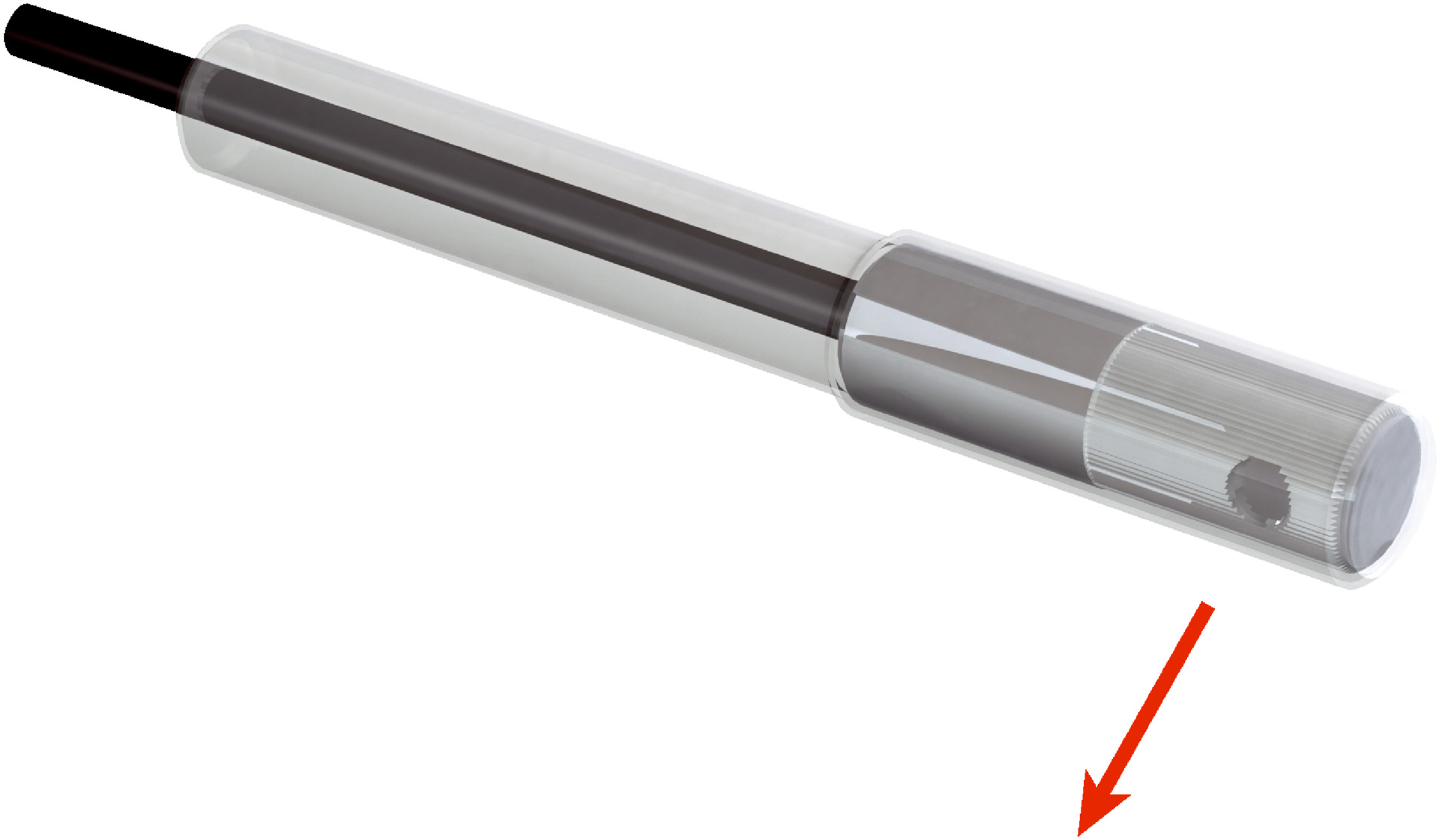

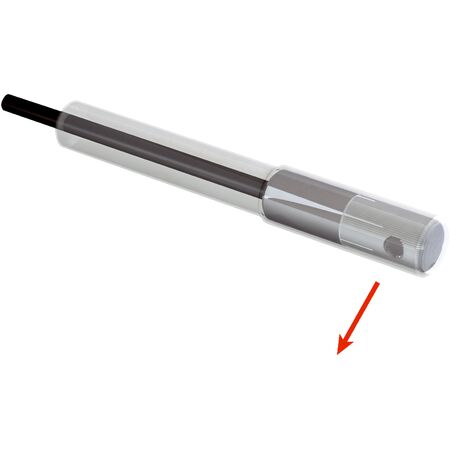

Fiber Optic Cable 90° Deflection | Teflon Sheathing | 3600mm Sensing Range | by SICK
The LL3-TY02 fiber optic cable features a 90° deflection design with Teflon sheathing, making it ideal for industrial automation sensing in oil and chemical resistant environments. With a maximum sensing range of 3,600 mm and a minimal object diameter detection of just 0.3 mm, this cable ensures precise performance in demanding applications. Built for reliability, it operates effectively in temperatures ranging from -40 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: 90° deflection
- Sensing range max.: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.3 mm
- Angle of dispersion: 57.62°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Light emission: Radial
- Smooth sleeve diameter: 6 mm
- Fiber length: 2,000 mm
- Bending radius: 60 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Material: Polytetrafluorethylen (PTFE) sheath and head, Polymethylmethacrylat (PMMA) fibers
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- 90° deflection fiber-optic head with Teflon sheathing for chemical resistance
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Max sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.3 mm
- Radial light emission with integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Fiber length 2,000 mm with 6 mm smooth sleeve diameter
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and optimal sensor performance.
Applications
- Industrial automation sensing
- Oil and chemical resistant environments
- Fiber-optic sensing with through-beam systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemically resistant Teflon sheathing extends product life reducing waste
- Long fiber length reduces need for multiple cables, minimizing material use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TY02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring chemical resistance and precise object detection.
